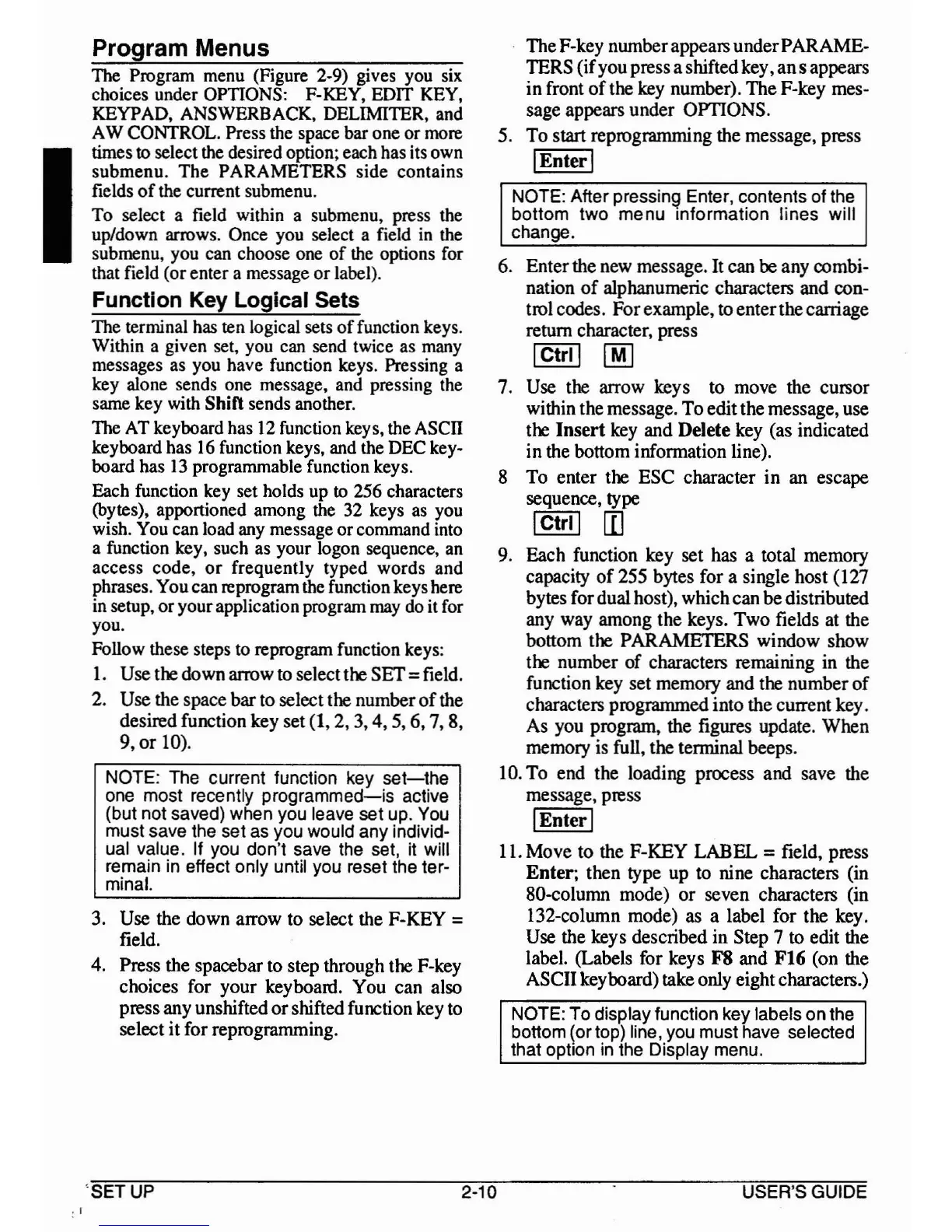

Program Menus
The Program menu (Figure 2-9) gives you six
choices under OPTIONS: F-KEY, EDIT KEY,
KEYPAD, ANSWERBACK, DELIMITER, and
AW CONTROL. Press the space bar one or more
times
to select the desired option; each has its own
submenu.
The
PARAMETERS side contains
fields
of
the current submenu.
To select a field within a submenu, press the
up/down arrows. Once you select a field in the
submenu, you can choose one
of
the options for
that field (or enter a message
or
label).
Function Key Logical Sets
The terminal has ten logical sets offunction keys.
Within a given set, you can send twice as many
messages as you have function keys. Pressing a
key alone sends one message, and pressing the
same key with
Shift
sends another.
The
AT keyboard has
12
function keys, the ASCII
keyboard has
16
function keys, and the DEC key-
board has
13
programmable function keys.
Each function key set holds up to 256 characters
(bytes), apportioned among the 32 keys as you
wish. You can load any message orcommand into
a function key, such as your logon sequence, an
access
code,
or
frequently typed words and
phrases. You can reprogram the function keyshere
in setup, oryourapplication program may do it for
you.
Follow these steps to reprogram function keys:
1.
Use the
down
arrow to select the
SET
=field.
2.
Use
the space
bar
to
selectthe
number
of
the
desired function key set
(I,
2, 3, 4, 5,
6,
7, 8,
9,
or
10).
NOTE: The current function key
set-the
one
most recently
programmed-is
active
(but not saved) when you leave set up.
You
must save the set
as
you would any individ-
ual value. If you don't save the set,
it
will
remain
in
effect only until you reset the ter-
minal.
3. Use the down arrow to select the
F·KEY
=
field.
4. Press the spacebar to step through the F-key
choices for
your
keyboard.
You
can
also
press any unshifted
or
shiftedfunction key to
select
it
for reprogramming.
The
F-key numberappears
under
PARAME-
TERS
(if
you pressa shiftedkey,
an
s appears
in
front
ofthe
key number).
The
F-key mes-
sage appears
under
OPTIONS.
5.
To
start reprogramming the message, press
I
Enter
I
NOTE: After
pressin~
Enter, contents of the
bottom two menu Information lines will
change.
6.
Enterthe new message. It can
be
any combi-
nation
of
alphanumeric characters
and
con-
trol codes.
For
example, to
enter
thecarriage
return character, press
ICtr11
00
7.
Use the arrow keys
to
move the cursor
within the message.
To
edit
the message, use
the
Insert
key
and
Delete
key (as indicated
in
the bottom information line).
8
To
enter
the
ESC
character
in
an escape
sequence, type
ICtr11
II]
9.
Each
function key set has a total memory
capacity
of
255 bytes for a single host (127
bytes for dual host),
which
can
be
distributed
any way
among
the
keys.
Two
fields at the
bottom the
PARAMETERS
window
show
the
number
of
characters remaining in the
function key set memory and the
number
of
characters programmedinto the current key.
As
you program, the figures update.
When
memory is full,
the
terminal beeps.
10.
To
end
the loading process
and
save the
message, press
I
Enter
I
11.
Move
to the
F-KEY
LABEL
=field, press
Enter;
then type up to nine characters (in
80-column mode)
or
seven characters (in
I32-column
mode) as a label for the key.
Use the keys described in Step 7 to edit the
label. (Labels for keys
F8
and
F16 (on the
ASCIIkeyboard) take only eightcharacters.)
NOTE: To display function key labels on the
bottom (or top) line,
you
must have selected
that option
in
the Display menu.
. r
'SETUP
2-10 USER'S GUIDE
