Telink TLSR8232 BLE SDK Developer Handbook
AN-19112700-E1 48 Ver.1.0.0

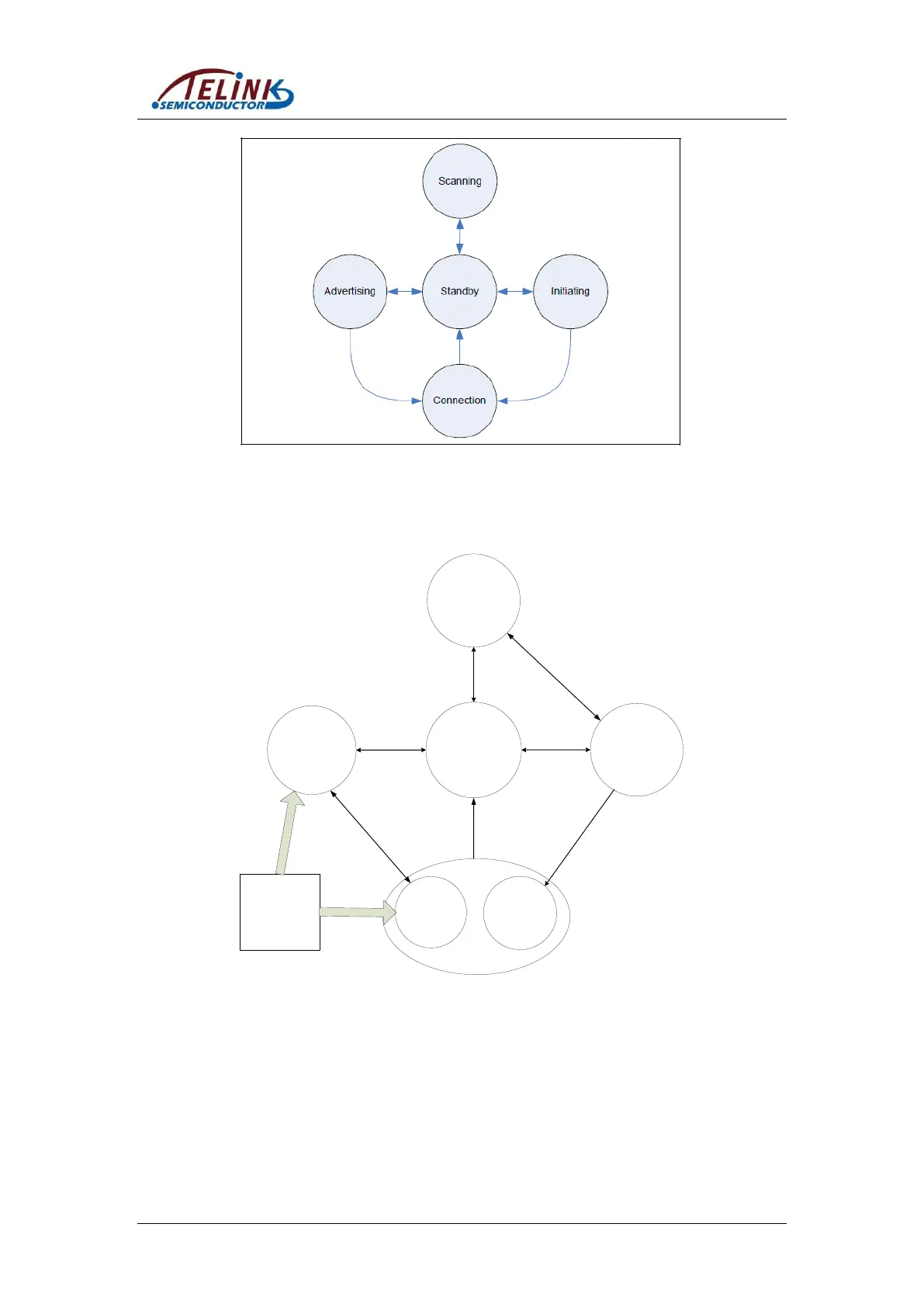

Figure 3-5 State Diagram of Link Layer State Machine in BLE Spec
Telink BLE SDK Link Layer state machine is shown as below.
Power
Management
Slave
role
Advertising
Idle
Scanning
initiating
Master
role
connection
Figure 3-6 Telink Link Layer State Machine
Telink BLE SDK Link Layer state machine is consistent with BLE Spec, and it contains
five basic states: Idle (Standby), Scanning, Advertising, Initiating, and Connection.
Connection state contains Slave Role only, no Master Role.
Slave Role is single connection by default.
In this document, Slave Role will be called as “Conn state Slave role” or
“ConnSlaveRole/Connection Slave Role”, or “ConnSlaveRole” for short.
