ME910C1 HW User Guide
1VV0301351 Rev.8 Page 40 of 99 2018-09-28
For example:

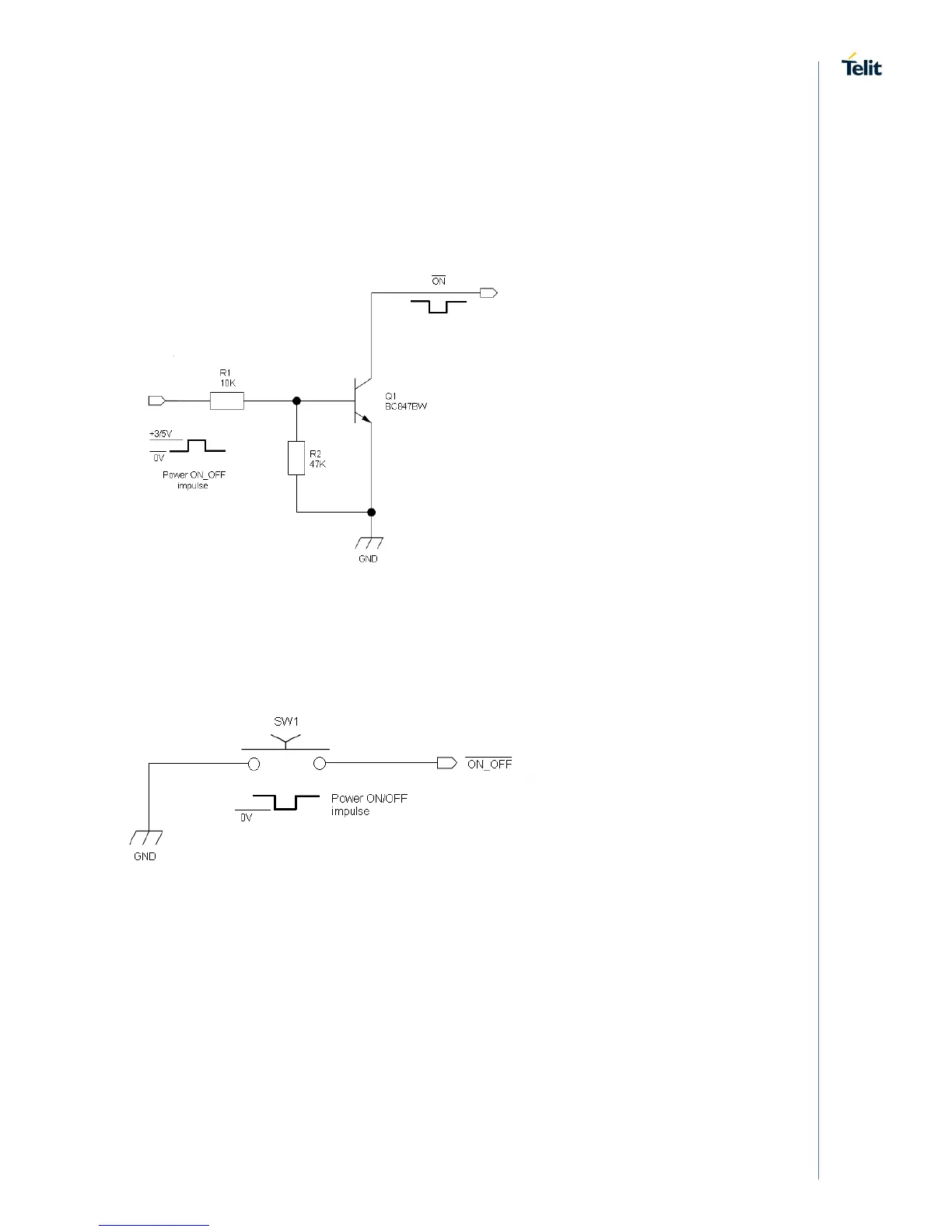

1- Let's assume you need to drive the ON_OFF*/WAKE* pad with a totem pole output of a
+3/5 V microcontroller (uP_OUT1):
2- Let's assume you need to drive the ON_OFF*/WAKE* pad directly with an ON/OFF
button:
