Tellermate T-iX Series - Installation; Ports

4
Installation
Rear Ports

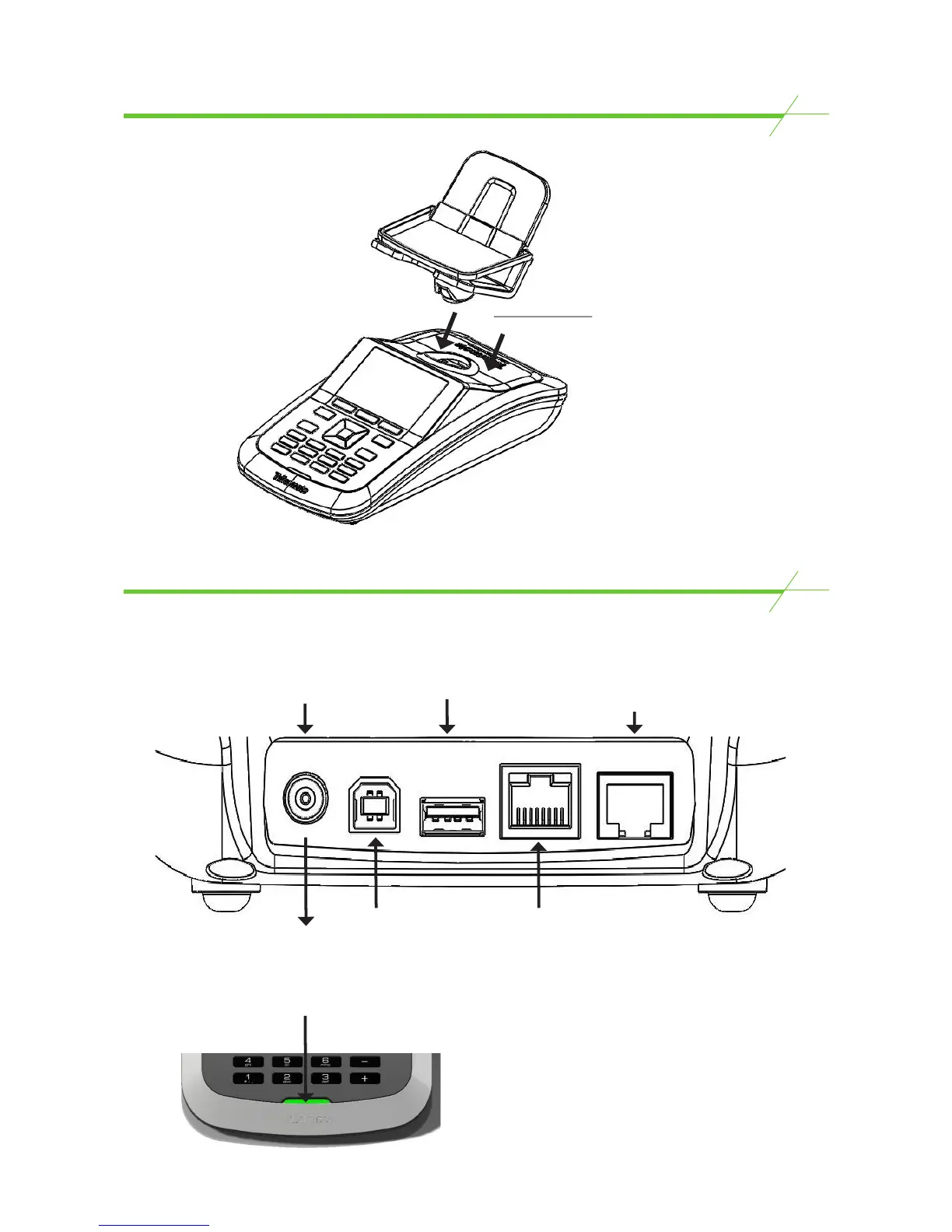

To fit, lower the
Money Platform down
until the magnetic
connector slots into
position. To release,
twist and lift.
PWR USB-B USB-A
Network
Serial
PWR: Connect the
power cable in here
USB-A: Used for
software upgrades only
Serial: If you have a printer plug it
in here. If your T-i
X
is configured to
connect to a PC via serial, connect
the serial cable here
A green LED will
light up when
mains power is
connected
USB-B: If your T-i
X
is configured to
connect to a PC via
USB, connect the
B connector of the
cable here
Network - If your
T-i
X
is configured to
connect to a PC to your
Network, plug your
network cable in here
