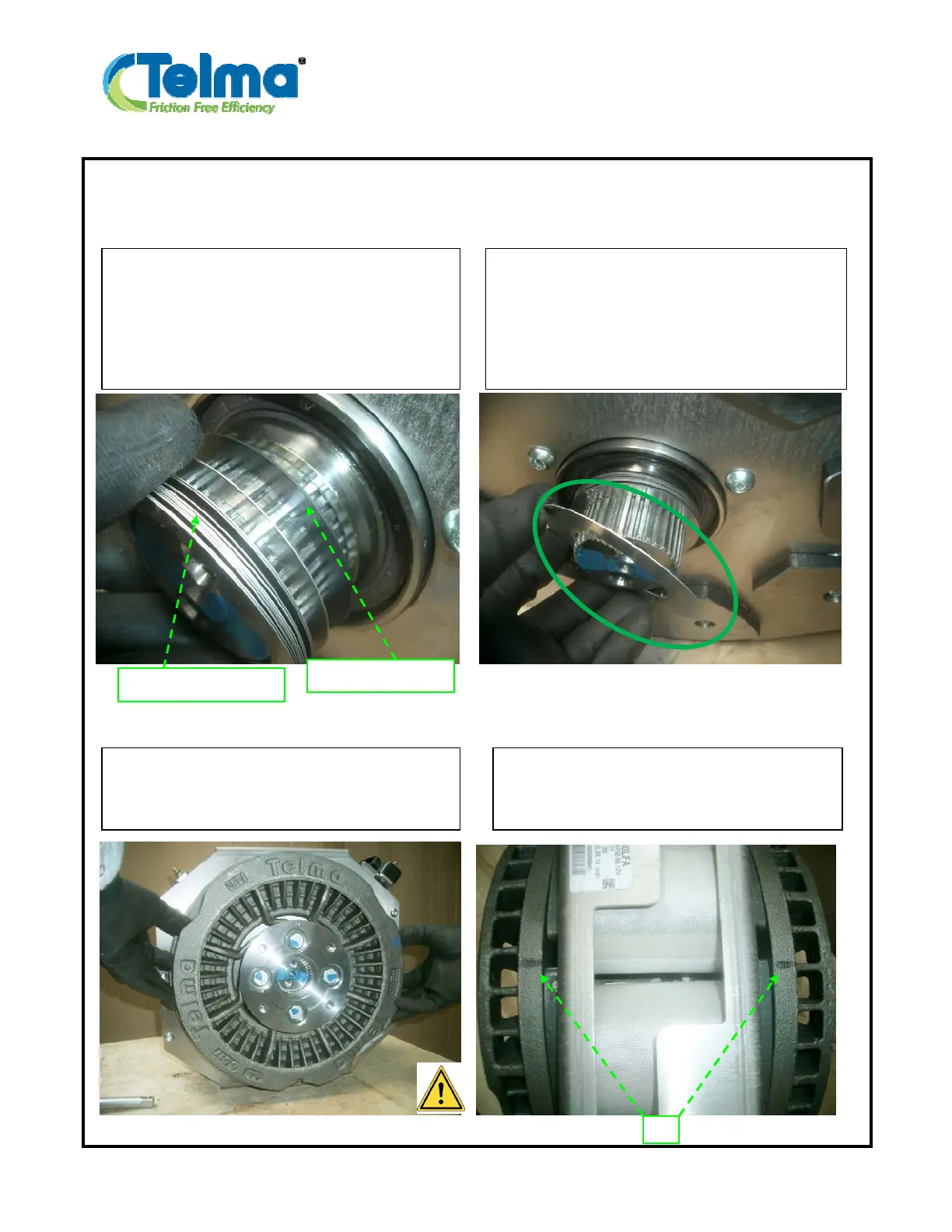

8. INSTALLATION OF THE ROTORS
6-A 6-B
6-C 6-D
On the both sides of the shaft line, put in
place a new black shim and new air gap
adjusting shims with a thickness similar to the
shims removed on operation 1-K.
NB: The black shim has to be first installed
and its presence is mandatory in any case.
Put new dust shields on the both shaft line
sides.
Re-install the 2 rotors on the shaft line,
ensuring that the 2 ink marks are aligned.
Ensure that the 2 marks (1) are aligned.
Black shim in first.
1
Air gap adjusting shims.
