OC441665
Release 1. 22jan16jh
This document is TELMA’s property. It cannot be either forwarded to an outsider, printed, reproduced or disclosed without TELMA’s authorization. Page
8 / 23

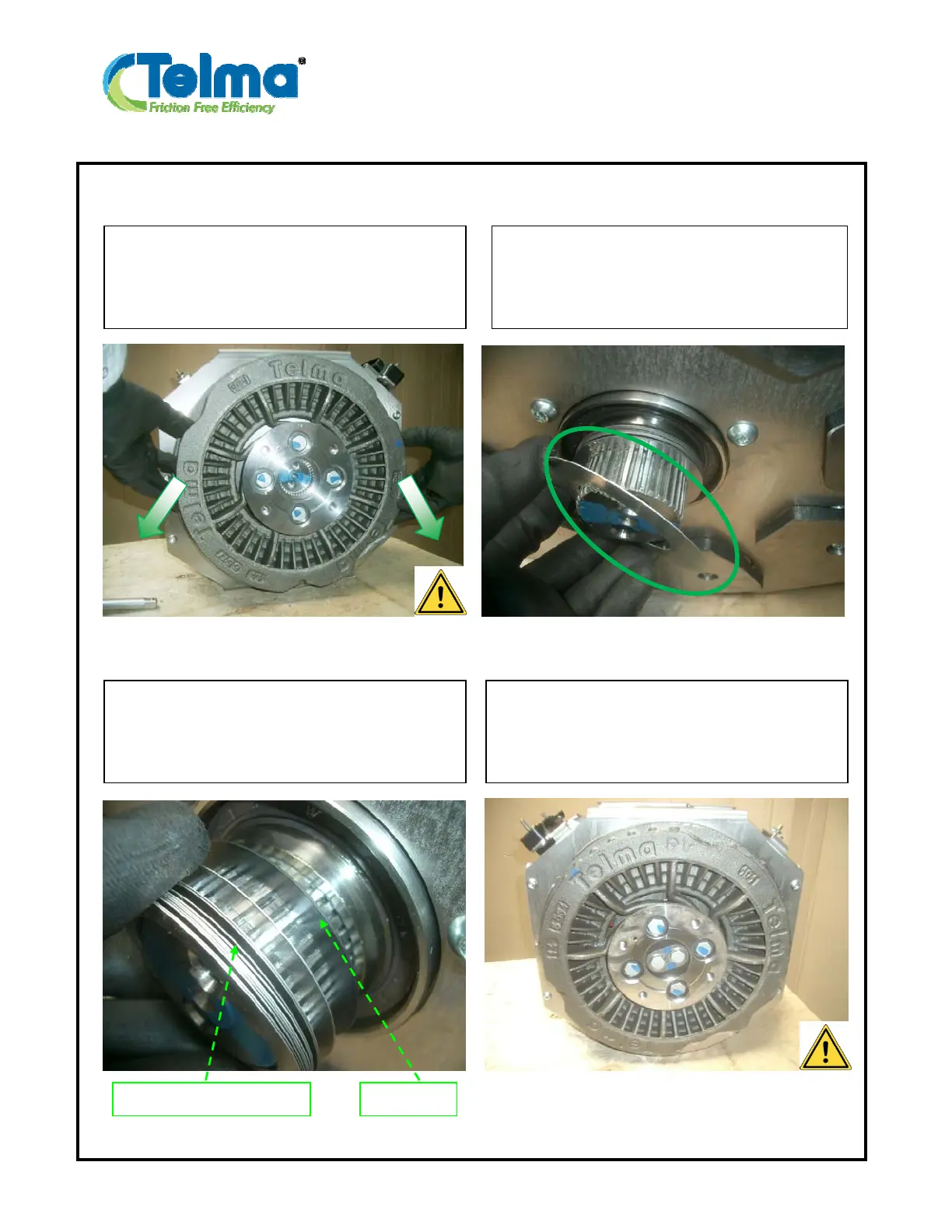

1-I 1-J
1-K 1-L
Remove the rotor with its coupling flange.
Remove the dust shield from the shaft line.
Remove air gap adjusting shims and the
black shim, from the shaft line.
Black shim Shims used to adjust air gap
Do the same steps from 1-E to 1-K for the
other rotor (gearbox side).
