Teltonika FMB003 - Pinout

Quick Manual v1.5 // FMB003
4
PINOUT
PIN NUMBER PIN NAME DESCRIPTION
2 PWM_BUS+/VPW
4 GND (-) Ground
5 GND (-) Ground
6 CAN_H CAN high
7 K-Line
10 PWM_BUS-
14 CAN_L CAN low
15 L-Line
16
VCC (10 - 30) V
DC (+)
Power supply (+10 - 30
V DC)

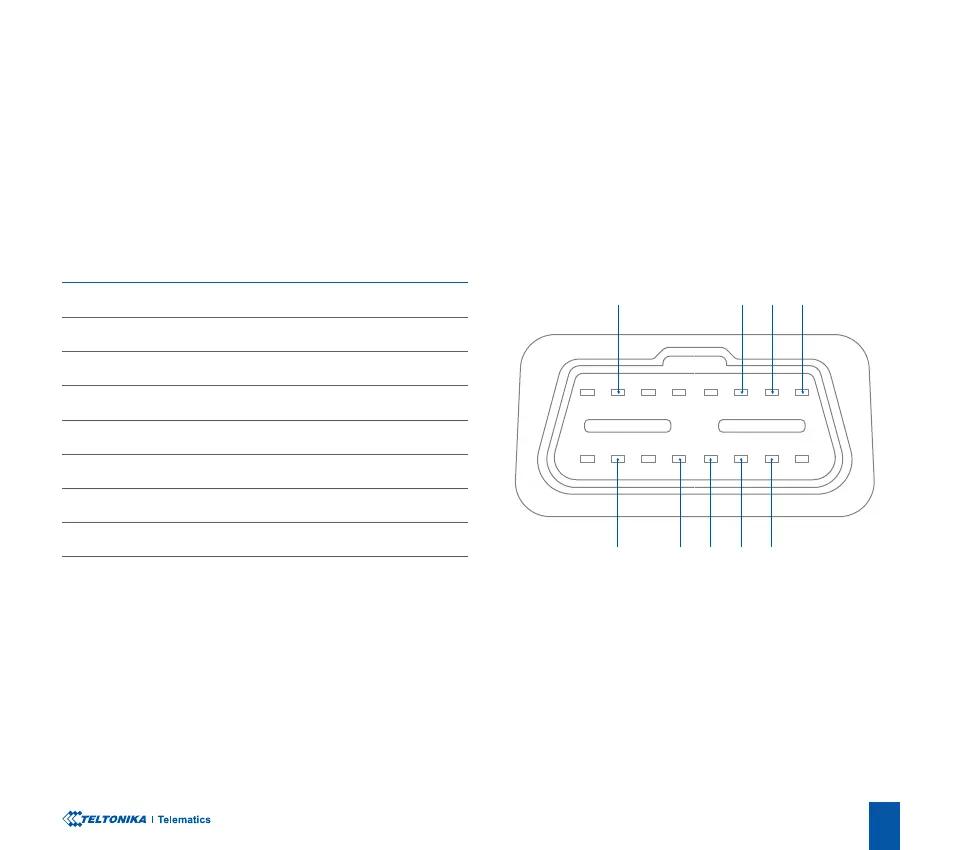

FMB003 OBDII socket pinout
PIN10 PIN14 PIN15 PIN16
PIN2 PIN4 PIN5 PIN6 PIN7
