Telwin BATTERY MANAGER - LCD DISPLAY (pag. 2); FUNCTIONS; Charging, Maintenance, and Supply Modes; Testing and Start Aid Functions

- 55 -
EN
LCD DISPLAY (pag. 2)
1. Set battery voltage.
2. Main Display: voltage-current measured in the
battery, selected Ah,voltage value selected for
the Supply / Diagnostic / Equalization programs,
messagges for the operator, alarm code.
3. Polarity reverse alarm, short circuit, worn or
faulty battery.
4. Set current and voltage.
“AL1 - AL9”Alarm code.
5. Battery charge level.
6. PULSE-TRONIC Charge current choice: AUTO,
BOOST, Customiezed (Ah setting).
7. Low temperature operation.
8. Silent operation.
9. EQUALIZATION Mode.
10. DESULFATION Mode.
11. Battery type choice:
WET: lead batteries, liquid electrolyte.
GEL: lead batteries, sealed, solid electrolyte.
AGM: lead batteries, sealed, electrolyte on
absorbent material.
PbCa: lead-calcium batteries.
12. SUPPLY Mode.
13. DIAGNOSTIC Mode.
14. PULSE-TRONIC charging steps.
15. START mode (if present).
16. Automatic charge Mode.
17. PulseTronic Charge.
18. Charging circuit operation Test (alternator).
19. Battery starting capacity Test - CCA.
20. Battery charge status Test .
21. VOLT - Setting button:
- 6/12/24V battery voltage.
- silent operation.
- voltage/Ah adjustment.
22. FUNCTION - Setting button:
-
PULSE-TRONIC CHARGE (AUTO, AUTO ,
WET, GEL, AGM, PbCa).
- TEST (battery status, vehicle’s alternator,
battery starting capacity).
- Advanced Programs (DESULFATION,
EQUALIZATION, DIAGNOSTIC, SUPPLY).
- voltage/Ah adjustment.
23. MODE - Setting button:
- Output current (AUTO, BOOST, customized).
- START Mode (if present).
FUNCTIONS
A. PULSE-TRONIC CHARGE
B. TEST
- CHARGE STATUS TEST
- BATTERY START CAPABILITY (CCA)
- ALTERNATOR TEST
C. BATTERY MAINTENANCE
- DESULFATION
- EQUALIZATION
D. POWER SUPPLY
- DIAGNOSTIC
- SUPPLY
E. START AID (if present)
F. CABLE CALIBRATION
G. SILENT OPERATION
OPTIONAL
INFO ALARM

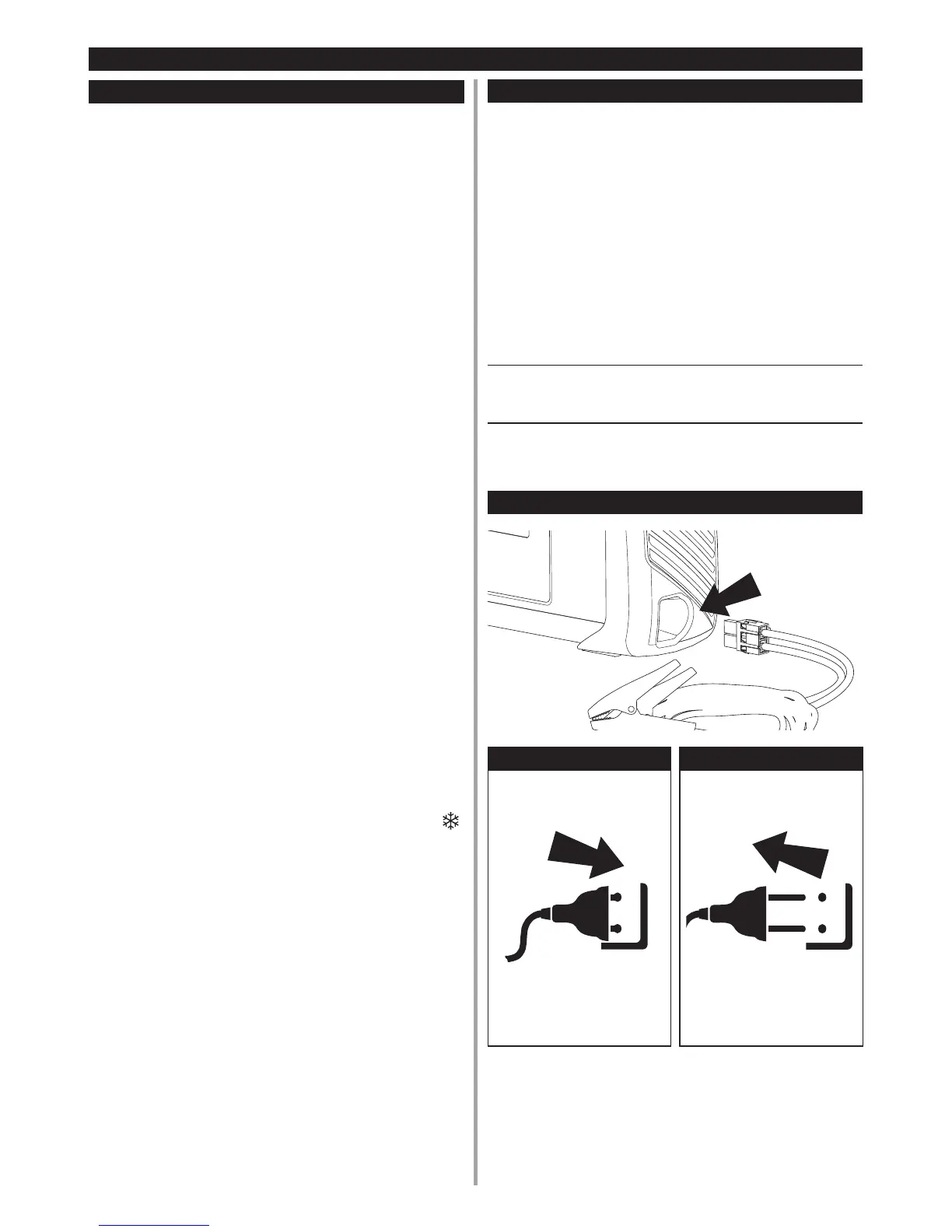

CABLE CONNECTION
POWERON POWEROFF
230V - 1ph
50/60 Hz
230V - 1ph
50/60 Hz
