12
Temco VF36RN/RNH/RP
78586
Log Installation
With gloves, remove each of the logs by gripping at
either end while avoiding any undue pressure. The logs
are made from light-weight ceramic fiber and may break
if undue force is applied.
The carton contains the following items: front log and
rear log, 2 top twigs, a bag of volcanic ash and a bag
embers.

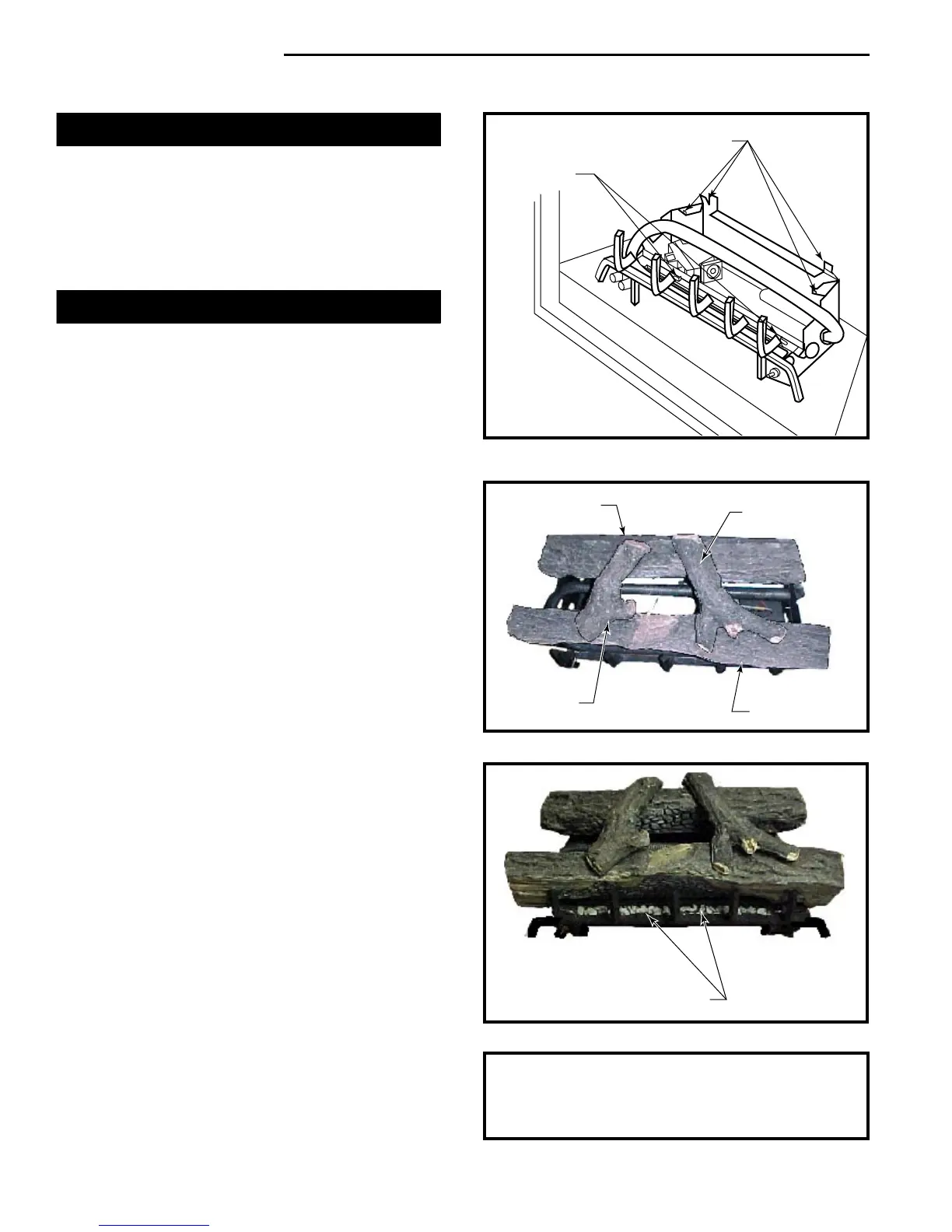

Log Assembly
(Refer to Figures 9, 10 and 11)
1. Rear log should be installed onto rear log supports.
Match slots on rear of log with the vertical log
bracket tabs. (Fig. 9)
2. Place the bottom edge of the large front log be-
tween the two tabs located in the log support
channel which centers the log left to right. (Fig. 9)
3. The two top twigs can then be placed in their
designated positions located with pins on back logs
and grooves on the front log.
4. Lava rock from the bag provided should be placed
on the hearth pan area to suit individual appearance
preferences. DO NOT place volcanic ash on burner,
pilot or logs.
5. Platinum embers are to be placed only on top of the
front burner port area. Equally space embers one
layer thick. Do not pile ember material over one
layer thick as this does not enhance the “ember”
appearance or improve the log set performance.
(Fig. 11)
6. Flames must not impinge (touch) on logs.
WARNING: Do not use more embers than those
supplied with your unit. Do not use embers other than
genuine “Platinum Embers” supplied by Temco Fire-
place Products, Part No. 78037.
When you have completed these steps, compare log
positions with Figure 10. The logs must be positioned
as illustrated.
CAUTION: Proper location is critical. When positioning
the log set, make sure the logs do not interfere with the
sides of the fireplace before securing the chassis.
Rear Log Supports
Front Log
Locator Tabs
(Left to Right)
T131
Fig. 9 Match slots on rear of log with vertical log bracket
tabs.
Rear Log
Right Twig
Front Log
Left Twig
TL106
Fig. 10 Correct log placement.
Platinum Embers
TL107
Fig. 11 Platinum ember placement.
WARNING: Failure to position the parts in accor-
dance with this diagram or failure to use only
parts specifically approved with this heater may
result in property damage or personal injury.
