DIGITAL PID CONTROLLER
21

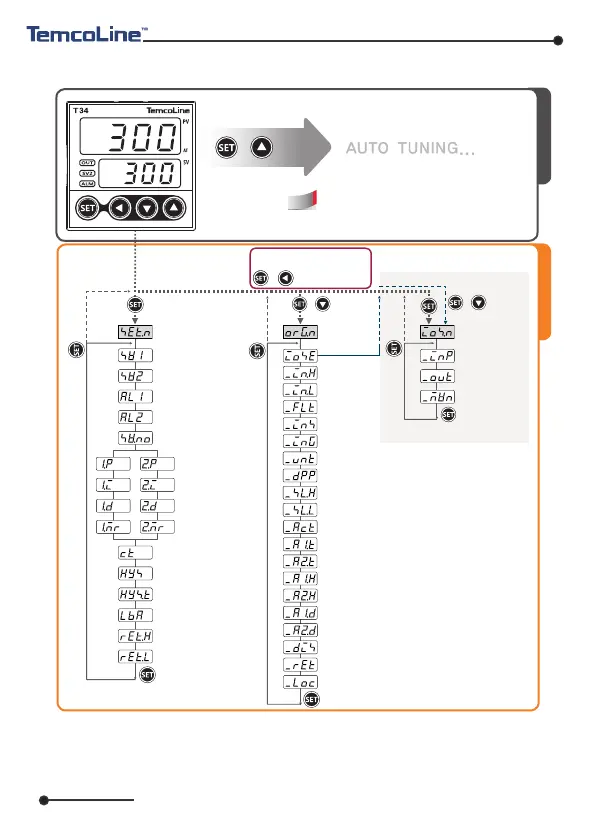

10. Flow Chart (Parameter structure)
Operation mode
Setting
mode
If the device is left idle for approximately
50 seconds after entering a setting mode
other than the operation mode it wil return
automatically to the operation mode.
The full menu diagram
above shows all control
and setting menus on the
T30 series, but during actual
operations the menus that are
the most relevant to the situation
according to the options and
the operation mode, providing
a simpler user interface while
retaining functionality.
※ To enter "Input/Output settings" by "IOSE" On is valid for only one time.
If you want to enter "Input/Output settings" again you must turn on "IOSE" first.
If there is no Key action the "IOSE" will be OFF automatically in 50 seconds.
more than 3sec.
Entering into in/output
setting mode
< General set mode >
Set value 1 (SV1)
Set value 2 (SV2)
Set value of alarm 1
Set value of alarm 2
Select of (SV1 or SV2)
number
Proportional band (℃)
Integral time (sec.)
Differential time (sec.)
Cycle time of output
(SSR or Relay)
Hysteresis
(ON/OFF Control)
Type of hysteresis
(ON/OFF Control)
Control loop break alarm
Highest limit
of retransmission
Lowest limit
of retransmission
+
SET
Manual reset [%]
(Integral time OFF only)
〈 Initial set 〉
Highest limit
Lowest limit
Input unit (Fixed ℃)
Decimal point positioning (On voltage input)
Set highest scale (On voltage input)
Set lowest scale (On voltage input)
Output action selection (Reverse/Direct action)
REV. (Heating), DIR. (Cooling)
Type of alarm 1
Type of alarm 2
Hysteresis of alarm 1
Hysteresis of alarm 2
Delay time of alarm 1
Delay time of alarm 2
External contact input
ON/OFF switch
Retransmission type
or SPS selection
Set of menu lock
Enable of
In/out setting
3 sec.
3 sec.
Input correction
ON
( IOSE = ON )
SET
SET
SET
SET
SET
SET
SET
+
SET
+
SET
SET
※ in/output setting mistake
prevention system
Input digital filter
Input type selection
Output type selection
Mainpulated
Variable [%]
〈 In/Out set mode 〉
Input high correction
(On voltage input)
+ 0.5 sec.
3 sec.
3 sec.
3 sec.
3 sec.
3 sec.
3 sec.
AUTO TUNING...
