Temposonics
®
E-Series IO-Link
Operation Manual
I 32 I
With the device configuration UI the sensor configuration can be done
in a convenient way. For detailed descriptions about the parameters
see chapter "5. Operation" on page 23.
With that code running, you can observe how the position is composed
out of the input bytes using the variable watch window.

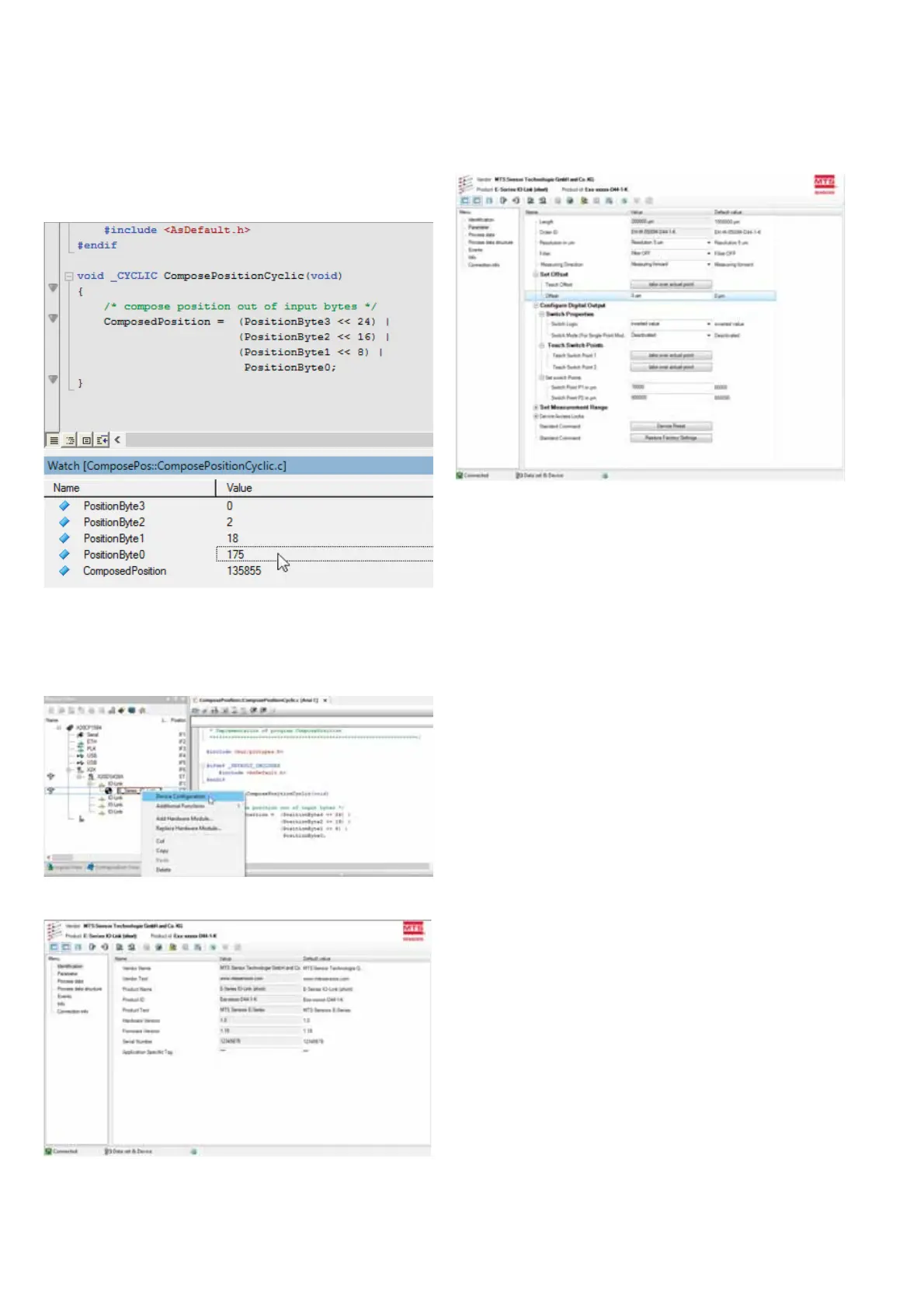

Fig. 36: Variable watch window
Fig. 37: Device configuration
Fig. 38: Sensor identification
Fig. 39: Sensor parameter
