2.4 MAKE-UP WATER SUPPLY CONNECTION
A. The automatic water make-up system continually monitors the
reservoirtankandllsitwhenneeded.Connectasfollows:
1. Usingappropriatelyratedhoseoruidpipingconnectthe
“watermake-up”connectiontotheplant’swatersource.
2. Minimum make-up water supply pressure is normally 20 psi.
3. Install an owner supplied shut off valve in the
make-up water supply line. Install this valve on
the outside of the unit.
4. Useabackowpreventiondeviceasmaybe
required by local codes to prevent possible
contamination of potable water.
B. Do not use automatic water make-up system when
operating with glycol below 48°F.
2.5 AIR COOLED CONDENSER
A. Air-cooled condensers require ambient air temperatures
between60°Fand95°Fforefcientoperation.Operating
above 95°F may result in elevated condensing pressures
and eventual shut-down on the high pressure limit
switch. Air temperatures below 60°F may result in
over condensing pressures and cause a low pressure
refrigerantfault.ConsultwiththeManufacturer’s service
department for more information on operating with
ambients air temperatures above 95°F or below 60°F.
B. Airowisgeneratedbythemotormountedfansor
centrifugalblowers.Airowisfromtheoutsideofthe
chiller, through the condenser and exhausted through
the top of the unit. On centrifugal blowers models,
exhaustaircanbeductedoutsideoftheplant’s
interior environment. Special duct work is required
and a HVAC contractor should be consulted for sizing
andmaterialspecications.Exhaustaircannotbe
ducted on motor mounted fan models.
C. A free air space of at least two (2) feet is required at
the condenser intake and six (6) feet at the condenser
dischargetoallowforproperairow.

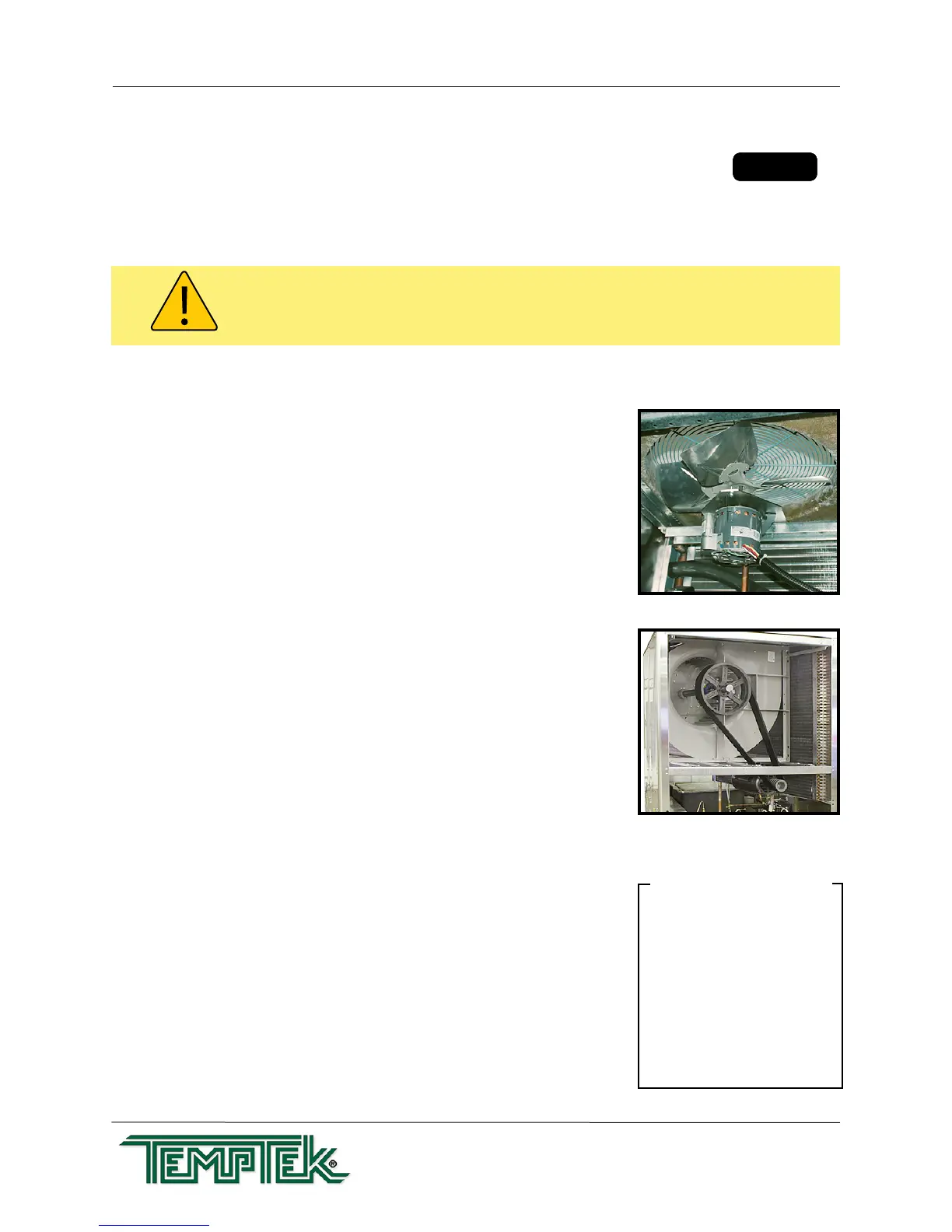

Typical fan assembly
Typical blower assembly
CFM RATINGS
Model
5 Tons
7.5 Tons
10 Tons
15 Tons
20 Tons
25 Tons
30 Tons
CFM
5,000
7,500
10,000
15,000
20,000
25,000
30,000
From ProcessTo Process
Condenser
Water In
Condenser
Water Out
Water Make-up
This label marks the Water
Make-up connection
WARNING: Check local codes to determine proper use of back ow prevention device in water
make-up supply line.
