c. Place an amp meter on a single power lead coming from the overload
relay.
d. Locate the motor name plate on the pump motor housing. The full load
amp rating for the motor is listed on the name plate.
e. Engage the electrical power supply and start the unit.
f. The amp meter will display the motor amps. Compare the actual motor
amps as displayed on the amp meter to the full load amp rating as listed
on the motor name plate.
g. If the amp draw is excessive (higher than the listed name plate amp
rating), a throttling valve must be installed in the “from process” water
line. The throttling valve can be a gate valve or a ball valve.
h. With the throttling valve installed, fully close the valve and then engage
the pump motor. Slowly open the throttling valve and monitor the motor
amps as displayed on the amp meter until the actual motor amps
equalthelistedfullloadampratingofthemotor.Theprocessowis
now correctly adjusted. The valve should remain in this position during
operation.
C. SPECIAL CONSIDERATIONS FOR UNITS WITH REMOTE CONDENSER
A. Compressor and pump rotation must be check independently on units with
remote condensers. Do not assume that the compressor is phased with the pump
upon initial start-up.
B. If the pump is found to be rotating correct, the compressor must also be checked
for proper rotation.

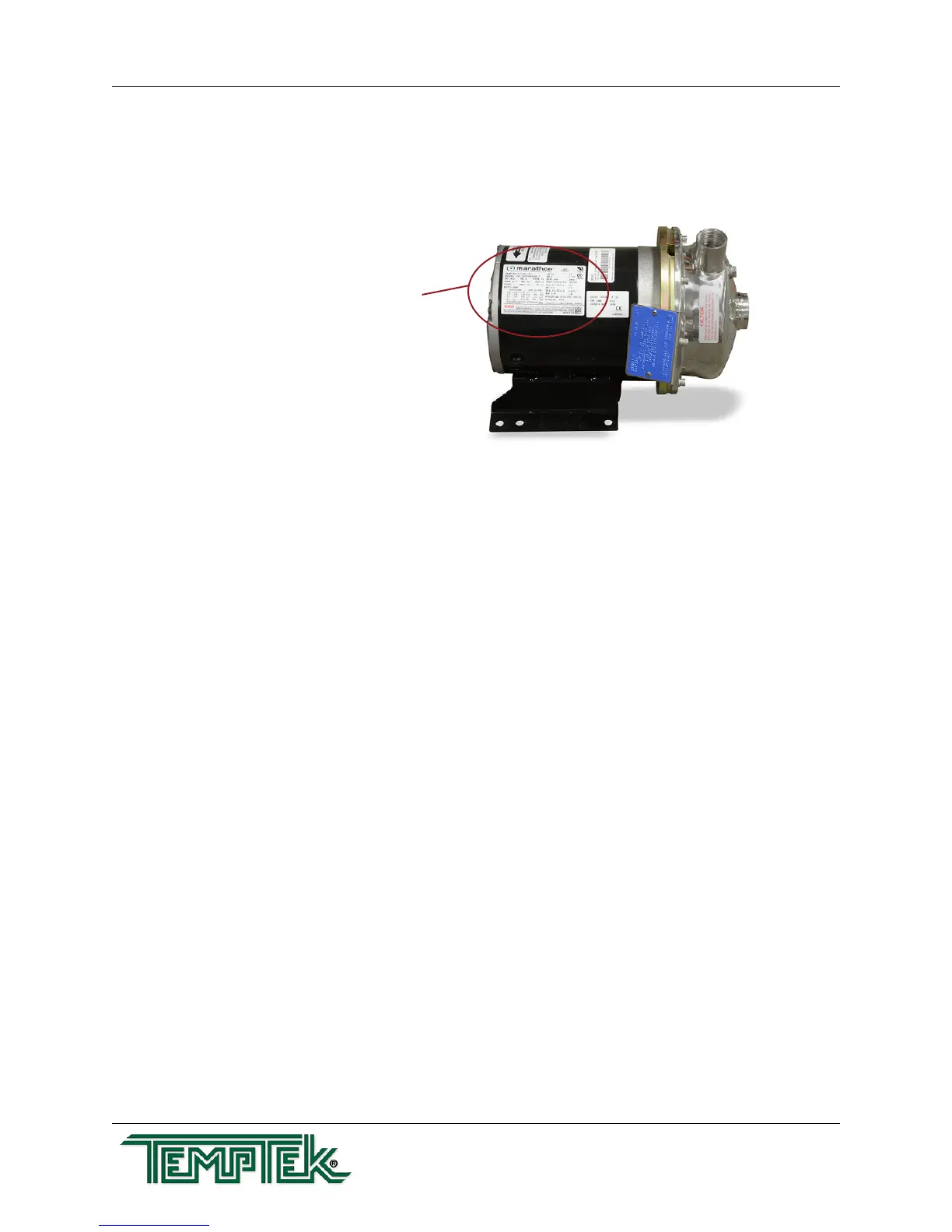

Name plate on typical pump motor.
