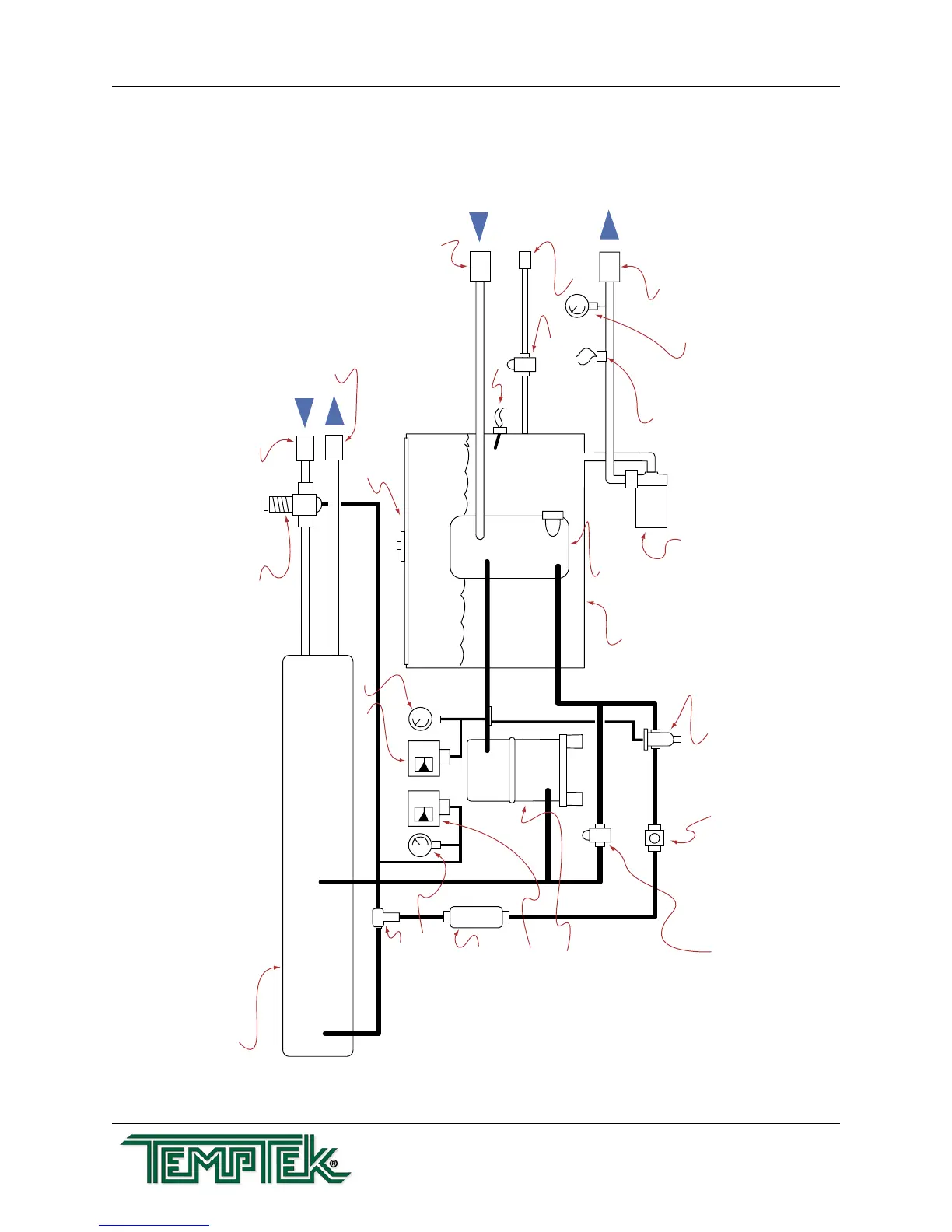

7.2 MECHANICAL SCHEMATIC : WATER-COOLED : 15 - 40 TON MODELS
TO PROCESS
PRESSURE GAUGE
WATER REGULATOR VALVE
COOLANT PUMP
TO PROCESS
SENSOR PROBE
TO PROCESS
PORT CONNECTION
MAKE-UP PORT
CONNECTION
MAKE-UP
SOLENOID VALVE
LEVEL SWITCH
FROM PROCESS
PORT CONNECTION
CONDENSER WATER IN
PORT CONNECTION
CONDENSER WATER OUT
PORT CONNECTION
RESERVOIR TANK
EXPANSION VALVE
EVAPORATOR
SERVICE LID AND FILL PORT
REFRIGERANT
SIGHT GLASS
FILTER-DRIER
SERVICE VALVE
HOT GAS
BYPASS VALVE
(not included onmodels with
Digital Scroll Compressors)
COMPRESSOR
HEAD PRESSURE GAUGE
HIGH PRESSURE
SAFETY SWITCH
SUCTION LINE PRESSURE GAUGE
LOW PRESSURE SAFETY SWITCH
WATER COOLED CONDENSER
