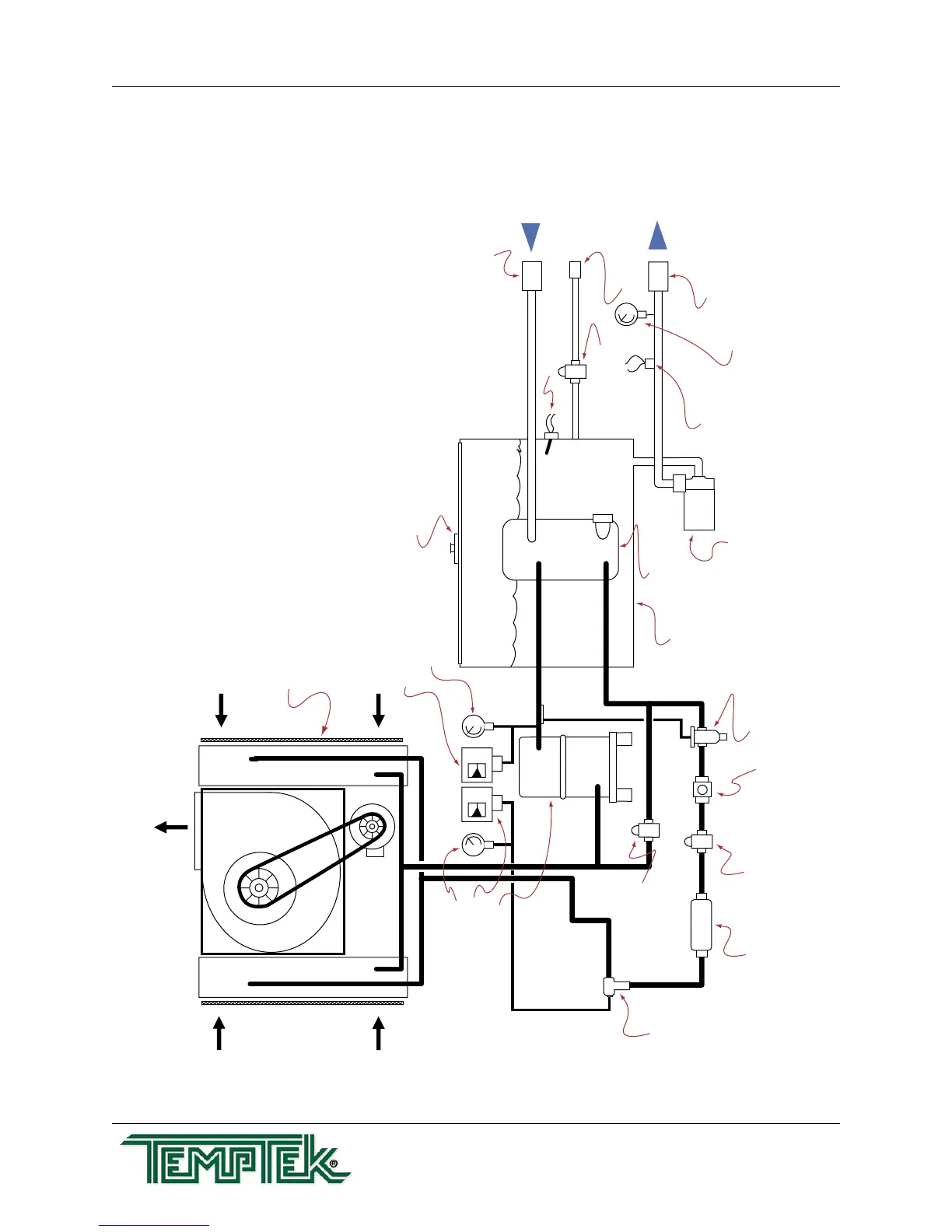

7.4 MECHANICAL SCHEMATIC : AIR-COOLED : 25 - 30 TON MODELS
AND 5 - 20 TON MODELS WITH OPTIONAL CENTRIFUGAL BLOWER
TO PROCESS
PRESSURE GAUGE
AIR-COOLED CONDENSER w/blower
COOLANT PUMP
TO PROCESS
SENSOR PROBE
TO PROCESS
PORT CONNECTION
MAKE-UP PORT
CONNECTION
MAKE-UP
SOLENOID VALVE
LEVEL SWITCH
FROM PROCESS
PORT CONNECTION
RESERVOIR TANK
EXPANSION VALVE
EVAPORATOR
SERVICE LID AND FILL PORT
REFRIGERANT
SIGHT GLASS
LIQUID LINE
SOLENOID VALVE
FILTER-DRIER
SERVICE
VALVE
HOT GAS
BYPASS VALVE
(not included onmodels with
Digital Scroll Compressors)
COMPRESSOR
HEAD PRESSURE GAUGE
HIGH PRESSURE SAFETY SWITCH
SUCTION LINE
PRESSURE GAUGE
LOW PRESSURE
SAFETY SWITCH
