Temptek CF Series - Physical Drawings: Water-Cooled (7.5-10 Tons)

CF Series Portable Chiller : Air & Water-Cooled : 5 - 40 Tons
Page: 73
TEMPTEK, INC.
525 East Stop 18 Road Greenwood, Indiana 46142
317-887-6352 Fax: 317-881-1277
Email: service@Temptek.com

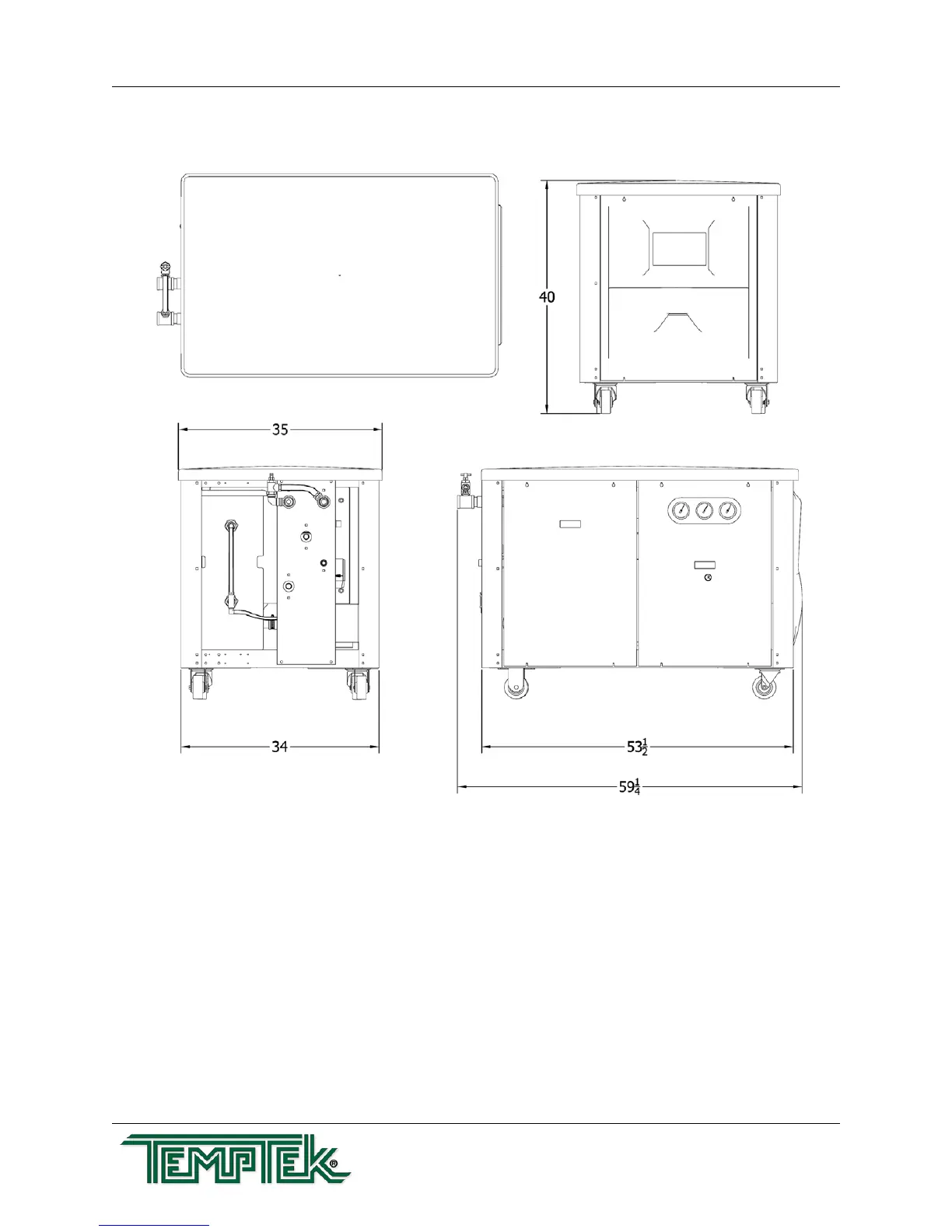

7.14 TYPICAL PHYSICAL : WATER-COOLED MODELS : 7.5 - 10 TONS
Physical drawings are presented for illustration purposes only. Many units are customized to meet unique needs
andtoincludestandardandcustomoptionsthatmayrequirechangestotheunitconguration.Unitdimensions,
layout,pipinglocationsandpipingsizesshouldbeconrmedwiththefactoryforyourspecicunit.
