middle of the display. The BANDWIDTH control is always available.
ALT AN NR SQL MON ATT VOX TUNE
ж 14.000.000
2400 PBT+0000
uss 10.000.000

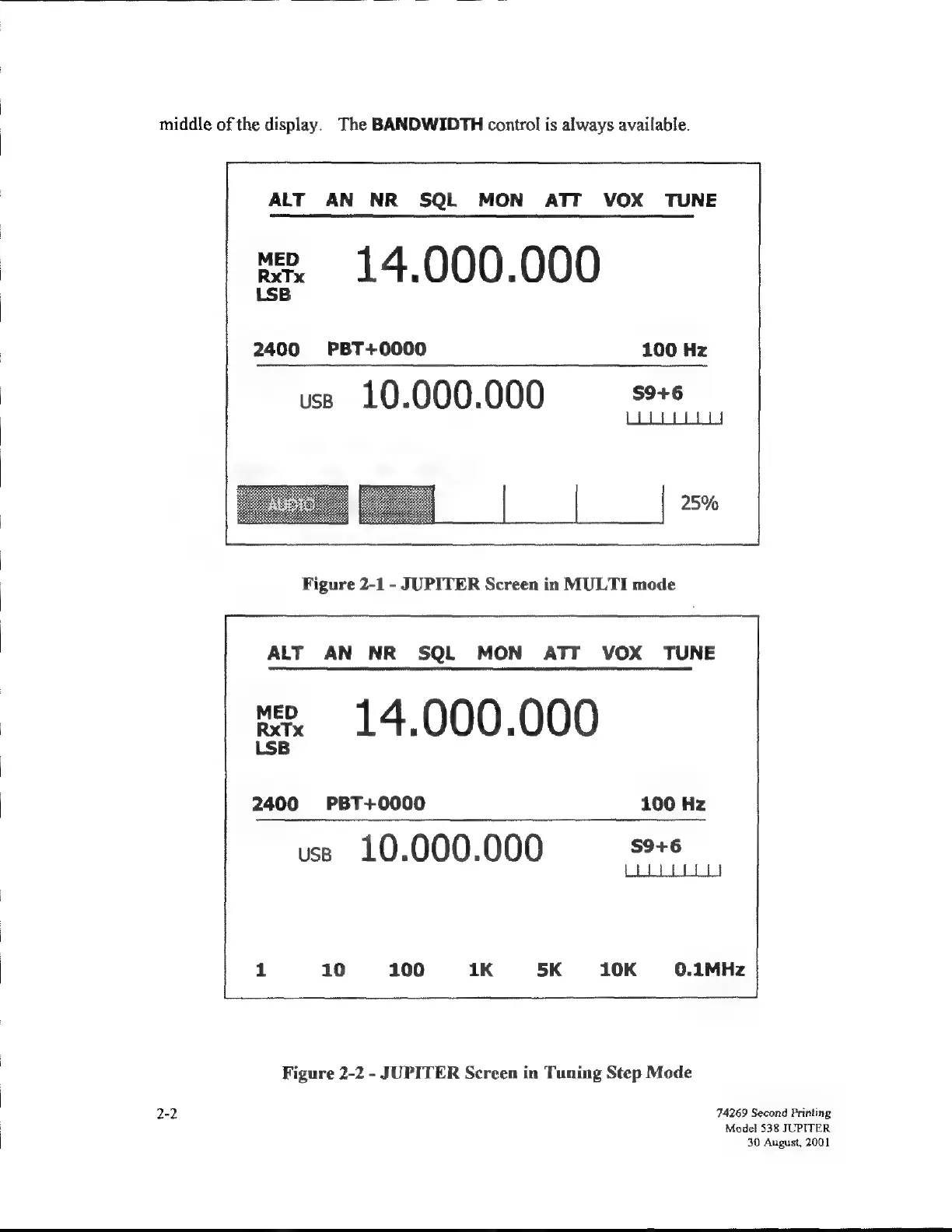

Figure 2-1 - JUPITER Screen in MULTI mode
ALT AN NR SQL MON ATT VOX TUNE
see 14.000.000
2400 РВТ--0000
uss 10.000.000
1K 5K 10K 0.1MHz
Figure 2-2 - JUPITER Screen in Tuning Step Mode
2-2 74269 Second Printing
Model 538 JUPITER
30 August, 2001
