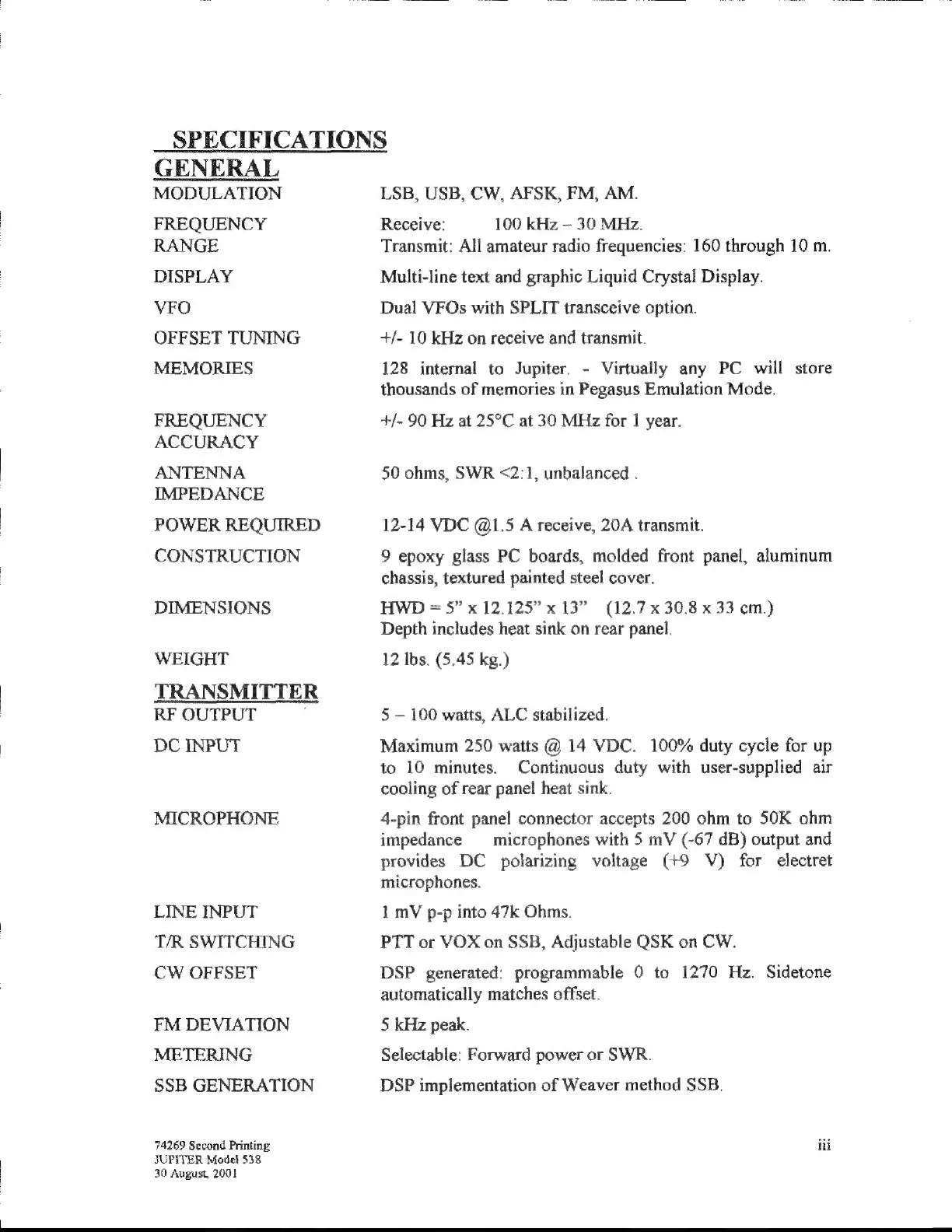

SPECIFICATIONS
GENERAL
MODULATION
FREQUENCY
RANGE
DISPLAY
VFO
OFFSET TUNING
MEMORIES
FREQUENCY
ACCURACY
ANTENNA
IMPEDANCE
POWER REQUIRED
CONSTRUCTION
DIMENSIONS
WEIGHT
TRANSMITTER
RF OUTPUT |
DC INPUT
MICROPHONE
LINE INPUT
T/R SWITCHING
CW OFFSET
FM DEVIATION
METERING
SSB GENERATION
74269 Second Printing
JUPITER Model 538
30 August, 2001
LSB, USB, СУУ, АЕЗК, ЕМ, АМ.
Receive: 100 kHz - 30 MHz.
Transmit: АЛ amateur radio frequencies: 160 through 10 m.
Multi-line text and graphic Liquid Crystal Display.
Dual VFOs with SPLIT transceive option.
+/- 10 kHz on receive and transmit.
128 internal to Jupiter. - Virtually any PC will store
thousands of memories in Pegasus Emulation Mode.
+/- 90 Hz at 25°С at 30 MHz for 1 year.
50 ohms, SWR «2:1, unbalanced .
12-14 VDC (01.5 A receive, 20A transmit.
9 epoxy glass PC boards, molded front panel, aluminum
chassis, textured painted steel cover.
НҰР = 5” x 12.125” x 13” (12.7 x 30.8 x 33 ст.)
Depth includes heat sink on rear panel.
12 lbs. (5.45 kg.)
5 — 100 watts, ALC stabilized.
Maximum 250 watts @ 14 VDC. 100% duty cycle for up
to 10 minutes. Continuous duty with user-supplied air
cooling of rear panel heat sink.
4-pin front panel connector accepts 200 ohm to 50K ohm
impedance microphones with 5 mV (-67 dB) output and
provides DC polarizing voltage (+9 V) for electret
microphones.
1 mV р-р into 47k Ohms.
PTT or VOX on SSB, Adjustable QSK on CW.
DSP generated: programmable O to 1270 Hz. Sidetone
automatically matches offset.
5 kHz peak.
Selectable: Forward power or SWR.
DSP implementation of Weaver method SSB.
iii
