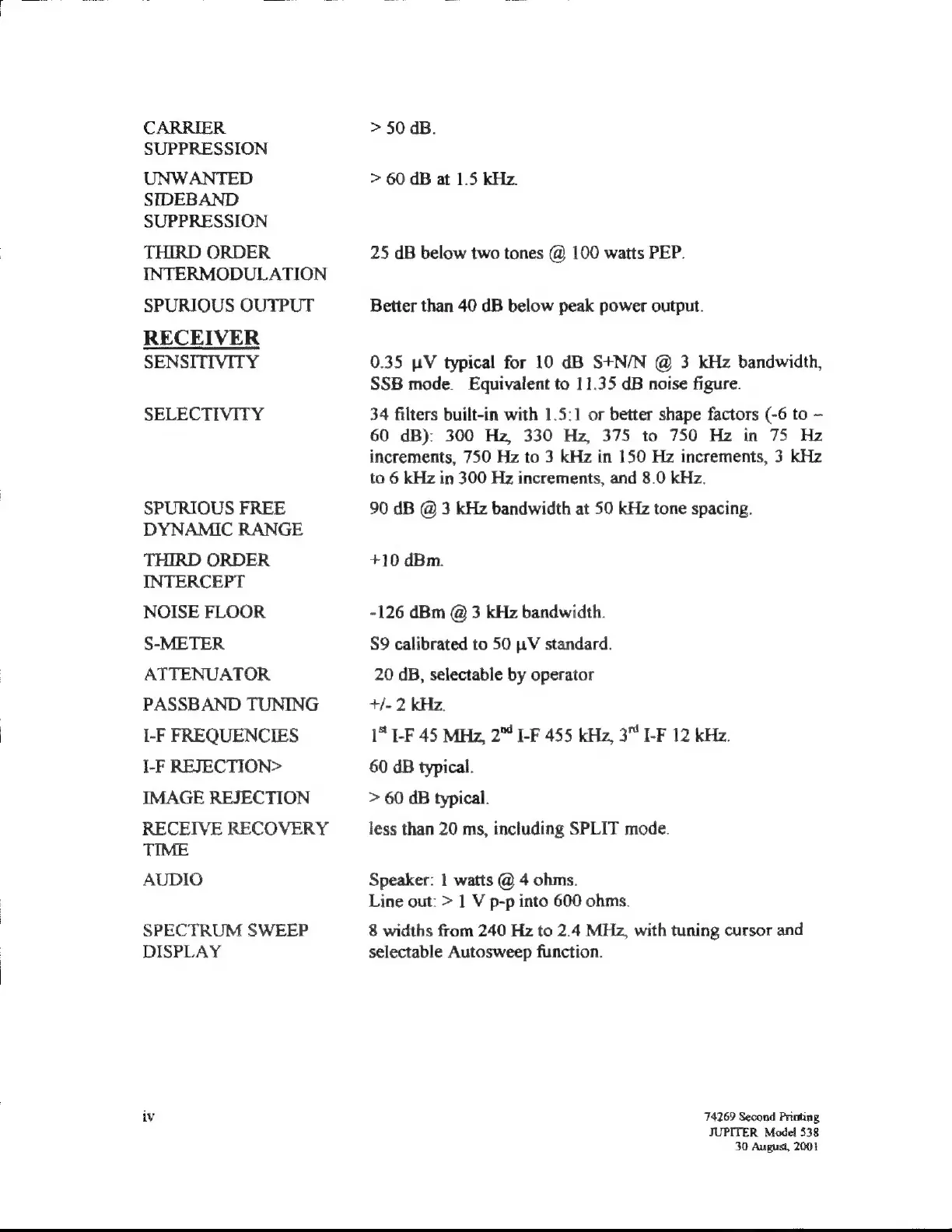

CARRIER
SUPPRESSION
UNWANTED
SIDEBAND
SUPPRESSION
THIRD ORDER
INTERMODULATION
SPURIOUS OUTPUT
RECEIVER
SENSITIVITY
SELECTIVITY
SPURIOUS FREE
DYNAMIC RANGE
THIRD ORDER
INTERCEPT
NOISE FLOOR
S-METER
ATTENUATOR
PASSBAND TUNING
LF FREQUENCIES
EF REJECTION>
IMAGE REJECTION
RECEIVE RECOVERY
TIME
AUDIO
SPECTRUM SWEEP
DISPLAY
> 50 dB.
> 60 dB at 1.5 kHz.
25 dB below two tones @ 100 watts PEP.
Better than 40 dB below peak power output.
0.35 рУ typical for 10 dB S+N/N @ 3 kHz bandwidth,
SSB mode. Equivalent to 11.35 dB noise figure.
34 filters built-in with 1.5:1 or better shape factors (-6 to –
60 dB): 300 Hz, 330 Hz, 375 to 750 Hz in 75 Hz
increments, 750 Mz to 3 kHz in 150 Hz increments, 3 kHz
to 6 kHz in 300 Hz increments, and 8.0 kHz.
90 dB (а) 3 kHz bandwidth at 50 kHz tone spacing.
+10 dBm.
-126 dBm @ 3 kHz bandwidth.
S9 calibrated to 50 рУ standard.
20 dB, selectable by operator
+/- 2 kHz.
1° LF 45 MHz, 2% LF 455 kHz, 3“ I-F 12 kHz.
60 dB typical.
> 60 dB typical.
less than 20 ms, including SPLIT mode.
Speaker: | watts @ 4 ohms.
Line ош: > 1 V p-p into 600 ohms.
8 widths from 240 Hz to 2.4 MHz, with tuning cursor and
selectable Autosweep function.
74269 Second Printing
JUPITER Model 538
30 Augusi, 2001
