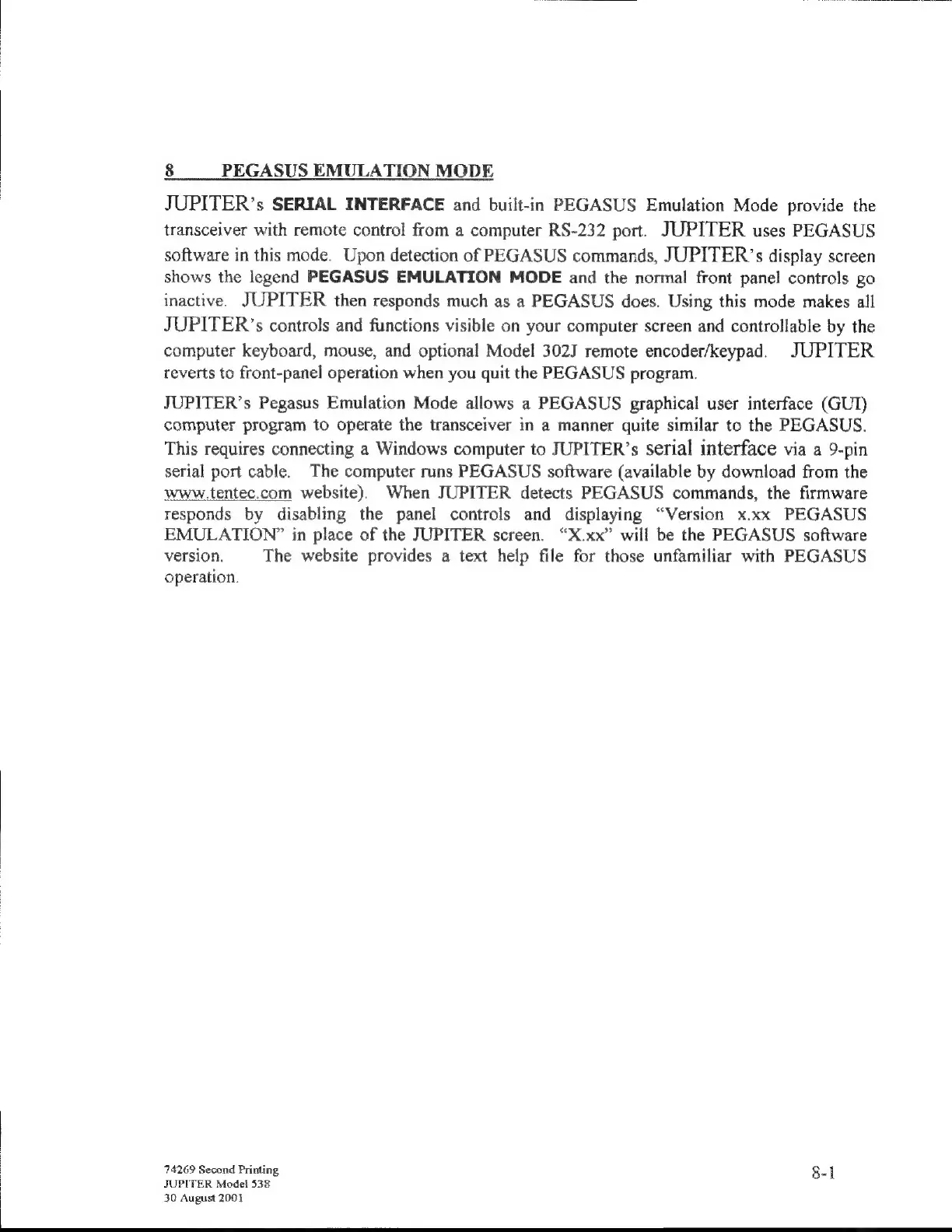

8 PEGASUS EMULATION MODE
JUPITER's SERIAL INTERFACE and built-in PEGASUS Emulation Mode provide the
transceiver with remote control from a computer RS-232 port. JUPITER uses PEGASUS
software in this mode. Upon detection of PEGASUS commands, JUPITER's display screen
shows the legend PEGASUS EMULATION MODE and the normal front panel controls go
inactive. JUPITER then responds much as a PEGASUS does. Using this mode makes all
JUPITER's controls and functions visible on your computer screen and controllable by the
computer keyboard, mouse, and optional Model 302J remote encoder/keypad. JUPITER
reverts to front-panel operation when you quit the PEGASUS program.
JUPITER's Pegasus Emulation Mode allows a PEGASUS graphical user interface (GUI)
computer program to operate the transceiver in a manner quite similar to the PEGASUS.
This requires connecting a Windows computer to JUPITER's serial interface via a 9-pin
serial port cable. The computer runs PEGASUS software (available by download from the
responds by disabling the panel controls and displaying "Version x.xx PEGASUS
EMULATION” in place of the JUPITER screen. “X.xx” will be the PEGASUS software
version. The website provides a text help file for those unfamiliar with PEGASUS
operation.
74269 Second Printing 8-1
JUPITER Model 538
| 30 August 2001
