Chapter 2 – ORION FRONT AND REAR
PANEL CONTROLS AND THEIR
FUNCTIONS
Chapter 2 of the ORION manual covers the
various controls and connectors on the front
and rear panels, with an explanation of the
each control and how it is used for operation
of the radio.
ANALOG METER
An analog meter is provided at the upper left
hand side of the front of the transceiver. In
receive, the meter shows S-units of signal
strength for the main receiver. In transmit,
the meter shows approximate output power
(+/- 5%). A separate bar graph S-meter for
the subreceiver is present on the radio
screen.
(1) POWER
This button turns the transceiver on and off.
(2 – 7) ANTENNA ASSIGNMENTS
The two columns of antenna selection keys

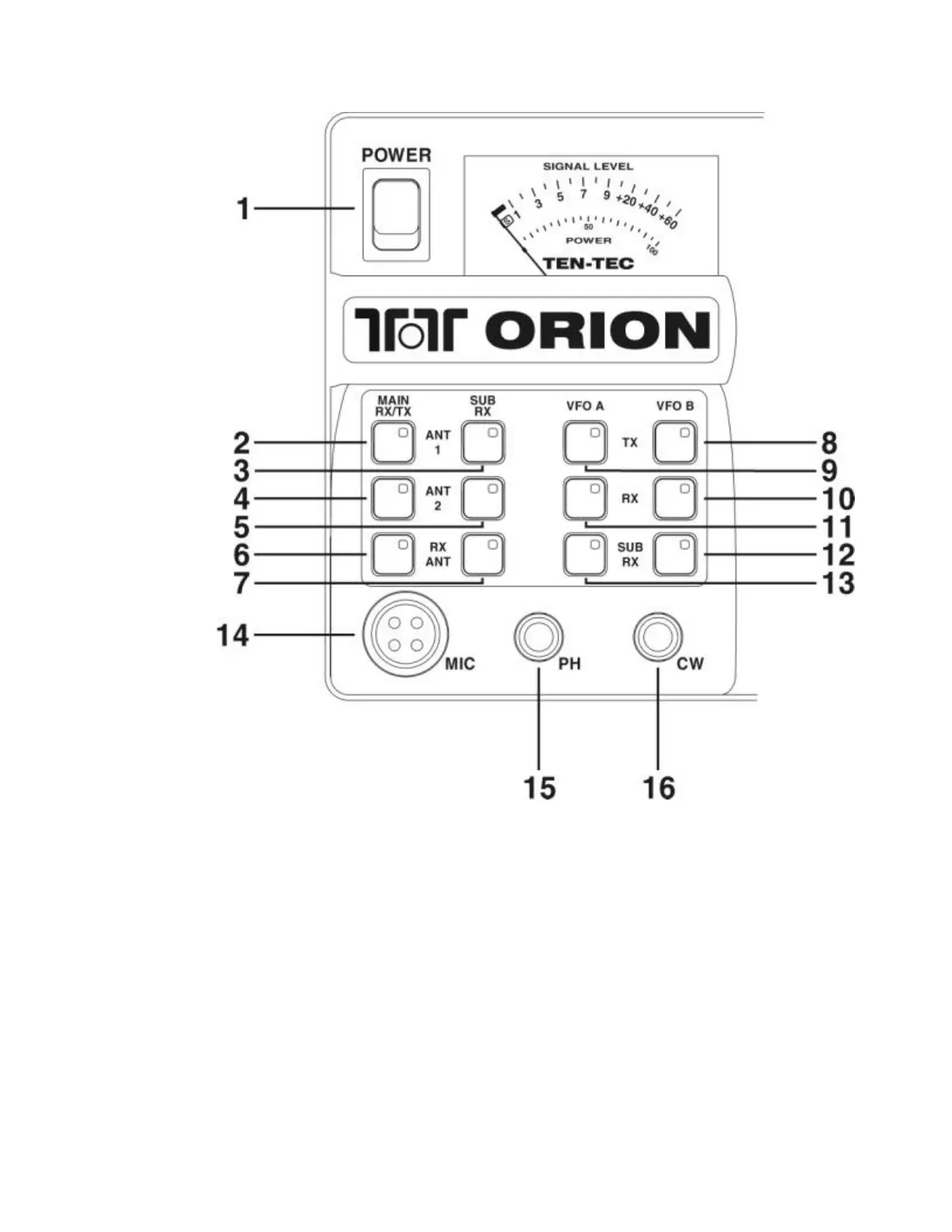

(numbered 2 through 7 in the figure above)
allow the assignment of up to three
