Tenda AC8 User Manual

37

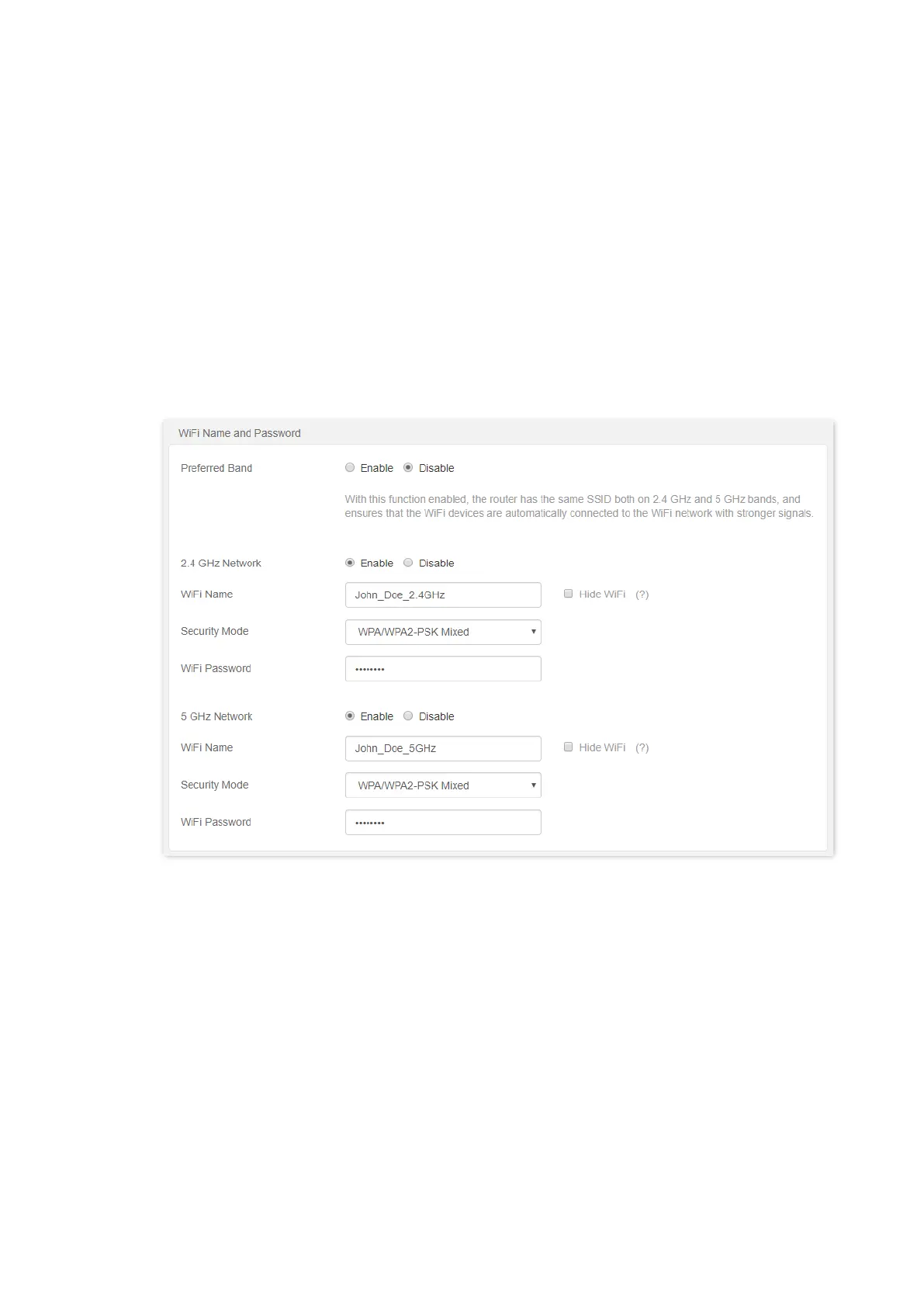

1. Change the WiFi Name of the 2.4 GHz network, which is John_Doe_2.4GHz in this
example.
2. Choose an Encryption Mode, which is WPA/WPA2-PSK Mixed in this example.
3. Change the WiFi Password of the 2.4 GHz network, which is Tenda+Wireless24 in this
example.
Step 5 Change the parameters of the 5 GHz network.
1. Change the WiFi Name of the 5 GHz network, which is John_Doe_5GHz in this example.
2. Choose an Encryption Mode, which is WPA/WPA2-PSK Mixed in this example.
3. Change the WiFi Password of the 5 GHz network, which is Tenda+Wireless5 in this
example.
Step 6 Click OK on the bottom of the page.
---End
When completing the configurations, you can connect your wireless devices to the WiFi networks
of the router to access the internet.
5.1.4 Hide the WiFi network
Configuring procedures:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.
Step 2 Choose Wireless Settings > WiFi Name and Password.
Step 3 Tick Hide WiFi of the target network.
Step 4 Click OK on the bottom of the page.

Tenda AC8 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	6 dBi
Output current	1 A
Output voltage	9 V
AC input voltage	200 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Firewall security	Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, CCC, SRRC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127 mm
Width	200 mm
Height	33.6 mm
