Tenda AC8 User Manual

41
5.2.2 Set up the guest network
Scenario: A group of friends are going to visit your home and stay for about 8 hours.
Goal: Prevent the use of WiFi network by guests from affecting the network speed of your
computer for work purposes.
Solution: You can configure the guest network function and let your guests to use the guest
networks.
Assume that the parameters you are going to set for the guest WiFi network:
− WiFi names for 2.4 GHz and 5 GHz networks: John_Doe and John_Doe_5G.
− WiFi password for 2.4 GHz and 5 GHz networks: Tenda+245.
− The shared bandwidth for guests: 2 Mbps.
Configuring procedures:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.

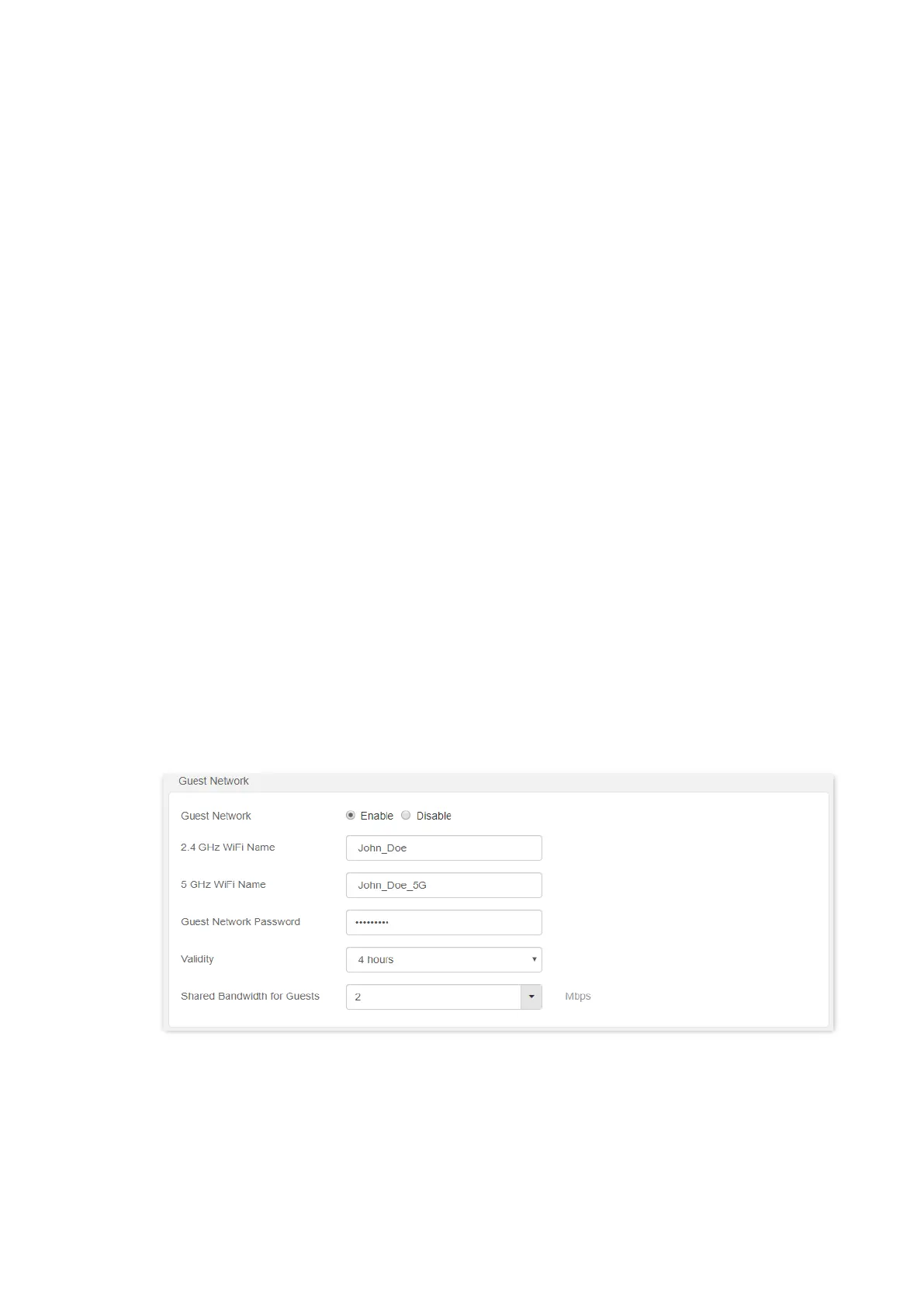

Step 2 Choose Wireless Settings > Guest Network.
Step 3 Set Guest Network to Enable.
Step 4 Change 2.4 GHz WiFi Name, which is John_Doe in this example.
Step 5 Change 5 GHz WiFi Name, which is John_Doe_5G in this example.
Step 6 Set Guest Network Password, such as to Tenda+245.
Step 7 Select a validity time from the Validity drop-down box, which is 4 hours in this example.
Step 8 Set the bandwidth in the Shared Bandwidth for Guests drop-down box, which is 2 in this
example.
Step 9 Click OK at the bottom of the page.
---End
During the 4 hours after the configuration, guests can connect their wireless devices, such as
smartphones, to John_Doe or John_Doe_5G to access the internet and enjoy the shared
bandwidth of 2 Mbps.

Tenda AC8 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	4
Antenna gain level (max)	6 dBi
Output current	1 A
Output voltage	9 V
AC input voltage	200 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Firewall security	Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Certification	CE, FCC, CCC, SRRC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)
Package type	Box
Number of products included	1 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	127 mm
Width	200 mm
Height	33.6 mm
