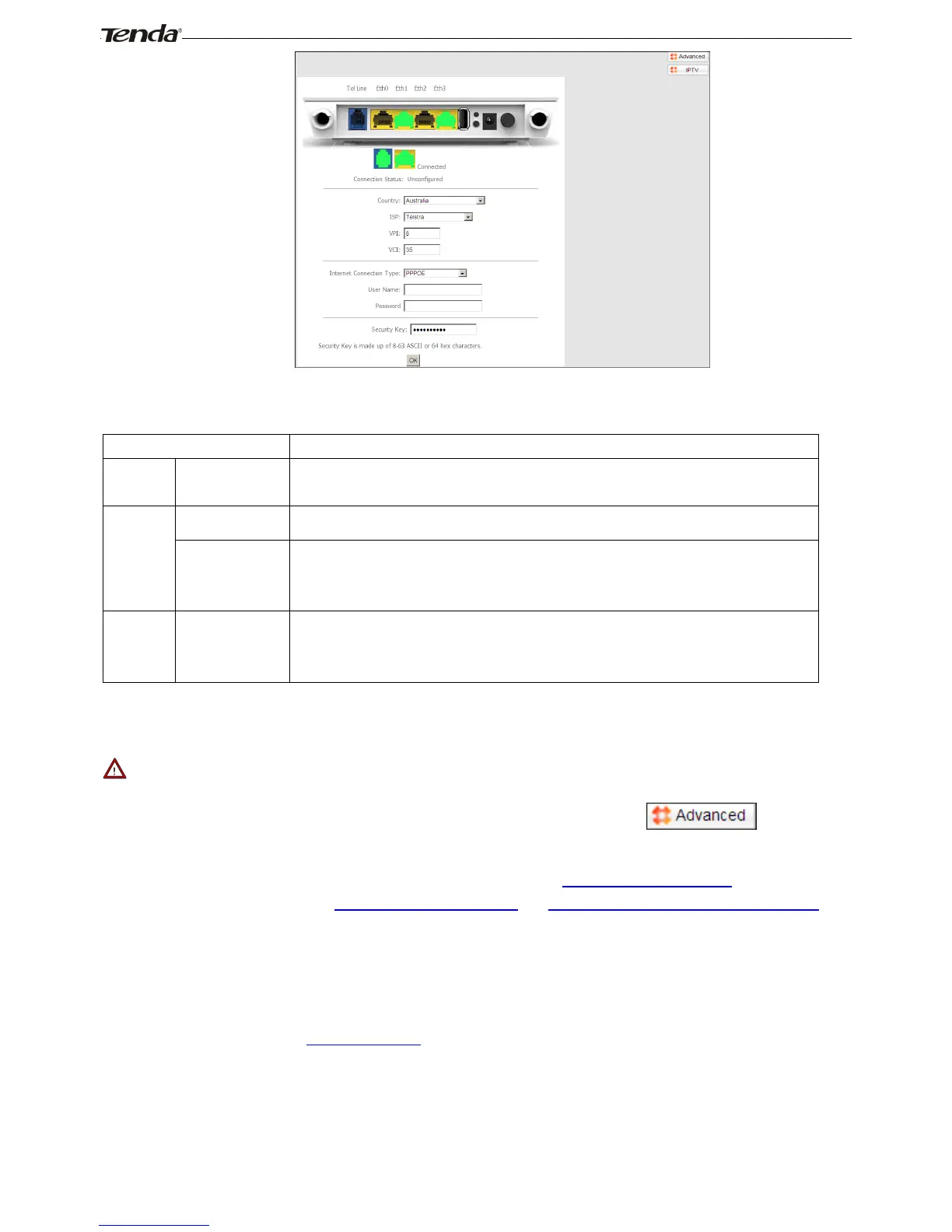

Depending on the type of connection, you are prompted to enter your ISP settings, as shown in the following table:
Internet Connection Type
ISP Information
PPPoE
PPPoA
Enter the ISP login user name and password. If you cannot locate this information, ask your ISP
to provide it.
IPoE
Dynamic IP
No entries are needed.
Static (Fixed) IP
Enter the assigned IP address, subnet mask, and the IP address of your ISP’s primary DNS
server. This information should have been provided to you by your ISP. If a secondary DNS
server address is available, enter it also.
IPoA
Static (Fixed) IP
Enter the assigned IP address, subnet mask, and the IP address of your ISP’s primary DNS
server. This information should have been provided to you by your ISP. If a secondary DNS
server address is available, enter it also.
_________________________________________________________________________________________________
Note:
If your country and/or your ISP are not covered on the home page, please click the button on the
home page and then select Advanced Setup -> Layer2 Interface -> ATM Interface and then click Add there to manually
configure the VPI and VCI. If you cannot locate this information, refer to Appendix 4 VPI/VCI List or ask your ISP to
provide it. For more information, see To set up the ATM interface and To setup WAN Service for ATM Interface.
_________________________________________________________________________________________________
e. After you configure all the above settings, click OK to save and apply them.
f. Test Internet Connectivity
Launch a web browser and enter www.tendacn.com. If the webpage is opened, you are connected to Internet.

Tenda D301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Memory card slot(s)	No
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Data link protocols	6RD, DS-Lite, IPv6, IPv4 dual stack
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WPA-PSK, WPA2-PSK, WPS
Product type	Tabletop router
Product color	White
LED indicators	DSL, System, USB, WAN, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	G.994, ANSI T1.413, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.992.3, ITU-T G.992.5, CE, FCC, RoHS
Cables included	LAN (RJ-45), Phone (RJ-11)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
