Tenda D301 User Manual

Wireless Modem Router User Guide
- 21 -
assigns you a static (fixed) IP
address, IP subnet mask and the
gateway IP address, you need to
select the IP over Ethernet (IPoE).
available, enter it also.
IPoA
Static (Fixed) IP
Enter the assigned IP address, subnet mask, and the IP address of
your ISP’s primary DNS server. This information should have been
provided to you by your ISP. If a secondary DNS server address is
available, enter it also.
Bridging
If you wish to iniate a dialup directly from your PC for Internet
access or enjoy the entire Internet connection (instead of sharing it
with others), you can select the Bridging and then click Next.
_________________________________________________________________________________________________
Tip:
For PPPoE, IPoE, and Bridging Internet connection types, you must first select EoA on the ATM Interface Screen, for
more information, see To set up the ATM interface.
_________________________________________________________________________________________________

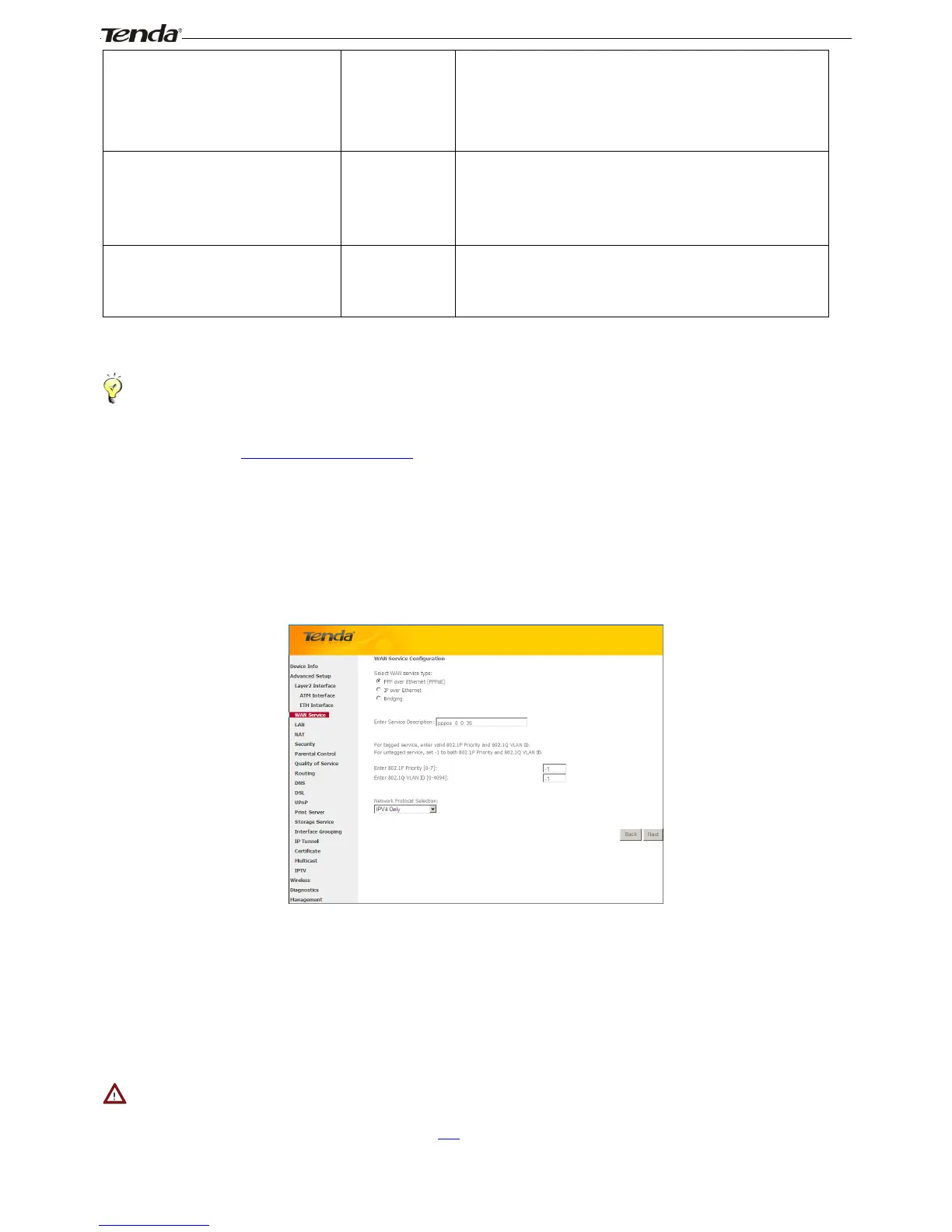

PPP over Ethernet (PPPoE)
If you have selected the EoA from the ATM Interface screen in Layer2 Interface, you will see the screen below when
you click the WAN Service tab, select the configured interface and click Next.
1. Select PPPoE.
2. Edit the Enter Service Description. This field is optional. We recommend that you keep the default.
3. Select a network protocol: IPv4, IPv6 or IPv4 & IPv6 (dual stack).
4. Click Next.
_________________________________________________________________________________________________
Note:
If you select IPv6 or IPv4 & IPv6 (dual stack), skip to IPv6.
_________________________________________________________________________________________________

Tenda D301 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n)	20 dBmW
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	40 MHz
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Memory card slot(s)	No
RJ-11 ports quantity	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	4
Data link protocols	6RD, DS-Lite, IPv6, IPv4 dual stack
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, SSID, WPA-PSK, WPA2-PSK, WPS
Product type	Tabletop router
Product color	White
LED indicators	DSL, System, USB, WAN, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	G.994, ANSI T1.413, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.992.3, ITU-T G.992.5, CE, FCC, RoHS
Cables included	LAN (RJ-45), Phone (RJ-11)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	105.2 mm
Width	157.8 mm
Height	29.4 mm
