Tenda F6 User Manual

16

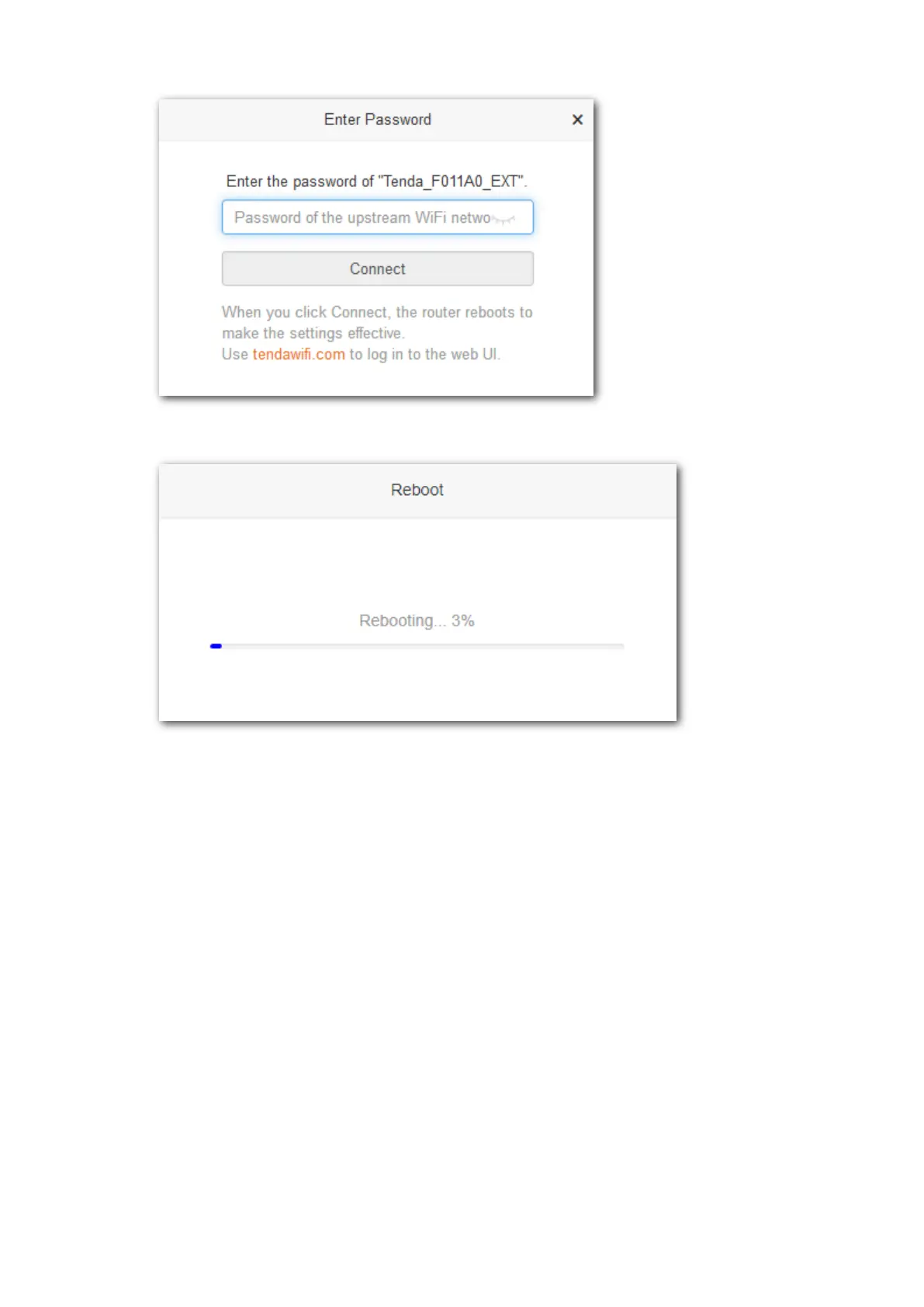

Step 6 Click Connect and wait for the router to reboot.
---End
Wait until the progress bar is complete. Log in to the web UI of the router again. Choose Status >
Internet Connection Status to check the connection status.
An example of configuring WISP mode
Application scenario
Tom lives in countryside, and it is not convenient for him to connect the nearest ISP base station
using Ethernet cables. He uses a router F6 to extend wireless signal in his apartment. And the WISP
mode of the router can meet the requirement.
Tom’s ISP provides a hotspot for internet with the information below:
− SSID: ISP_A
− WiFi password: 87654321
− PPPoE user name: Tom
− PPPoE password: Tom123

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
