Tenda F6 User Manual

17

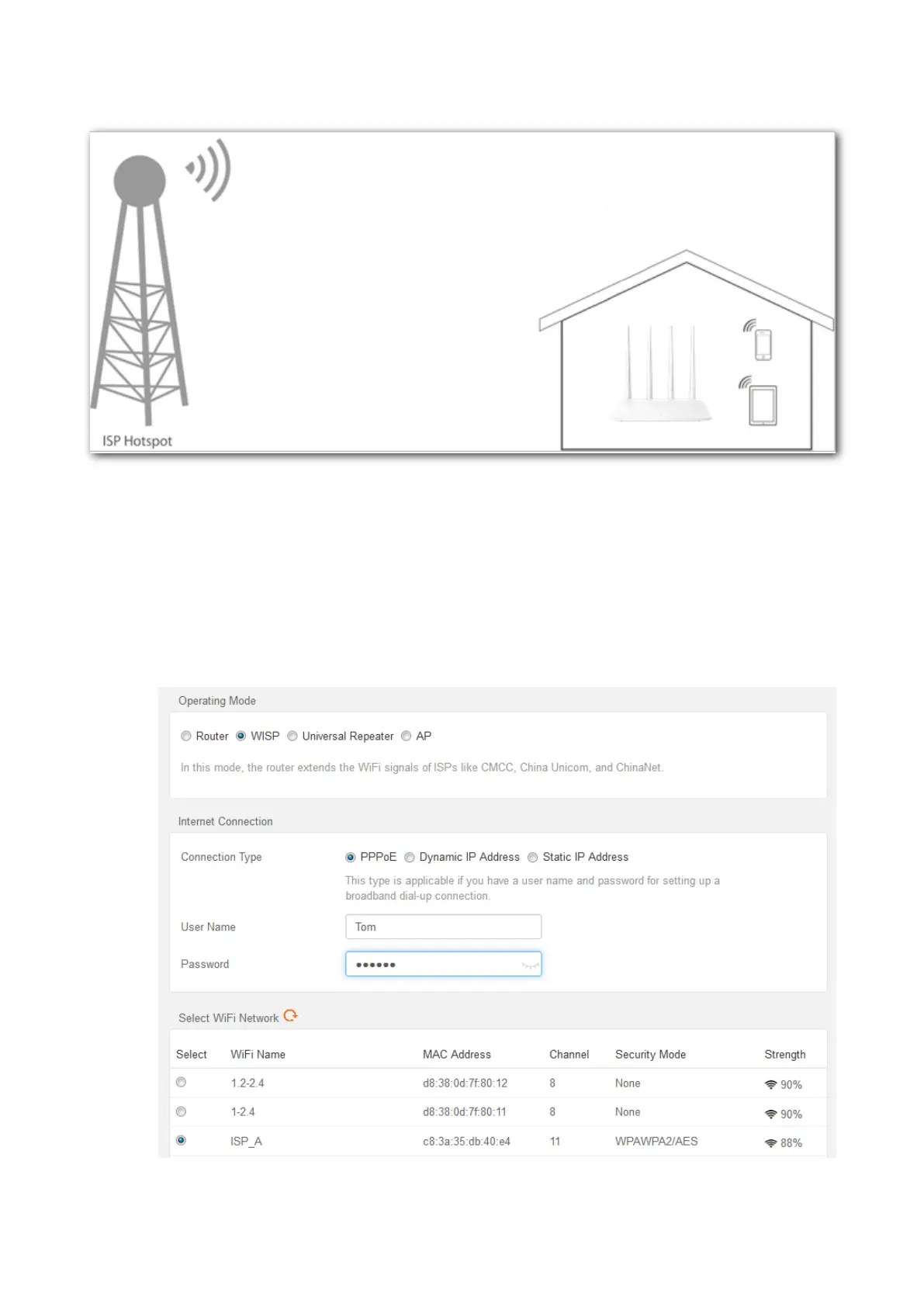

Network topology
Configuration procedure:
Step 1 Choose Internet Settings to access the page.
Step 2 Set Operating Mode to WISP.
Step 3 Select the Connection Type of your ISP hotspot, which is PPPoE in this example. Enter the
PPPoE user name and password provided by your ISP, which is Tom/Tom123 in this
example.
Step 4 Choose the ISP hotspot, which is ISP_A in this example.
Step 5 Enter the password of the WiFi network ISP_A, which is 87654321 in this example.
F6
SSID: ISP_A
WiFi Password: 87654321

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
