Example of configuring the SNMP function
Networking requirement
− The device connects to an NMS over an LAN. This network address of the device is
192.168.2.1/24 and the network IP address of the NMS is 192.168.2.212/24.
− The NMS use SNMP V1 or SNMP V2C to monitor and manage the device.
Configuration procedures
Step 1 Set up the device.
Assume that Read Community is Jack, and Read/Write Community is Jack123.
1. Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Network Service.
2. Enable the SNMP Agent function.
3. Set the Read Community, which is Jack in this example.
4. Set Read/Write Community, which is Jack123 in this example.
5. Click Save on the bottom of this page.
Step 2 Set up the NMS.
On an NMS that uses SNMP V1 or SNMP V2C, set the read community to Jack and read/write
community to Jack123. For details about how to configure the NMS, refer to the configuration
guide for the NMS.

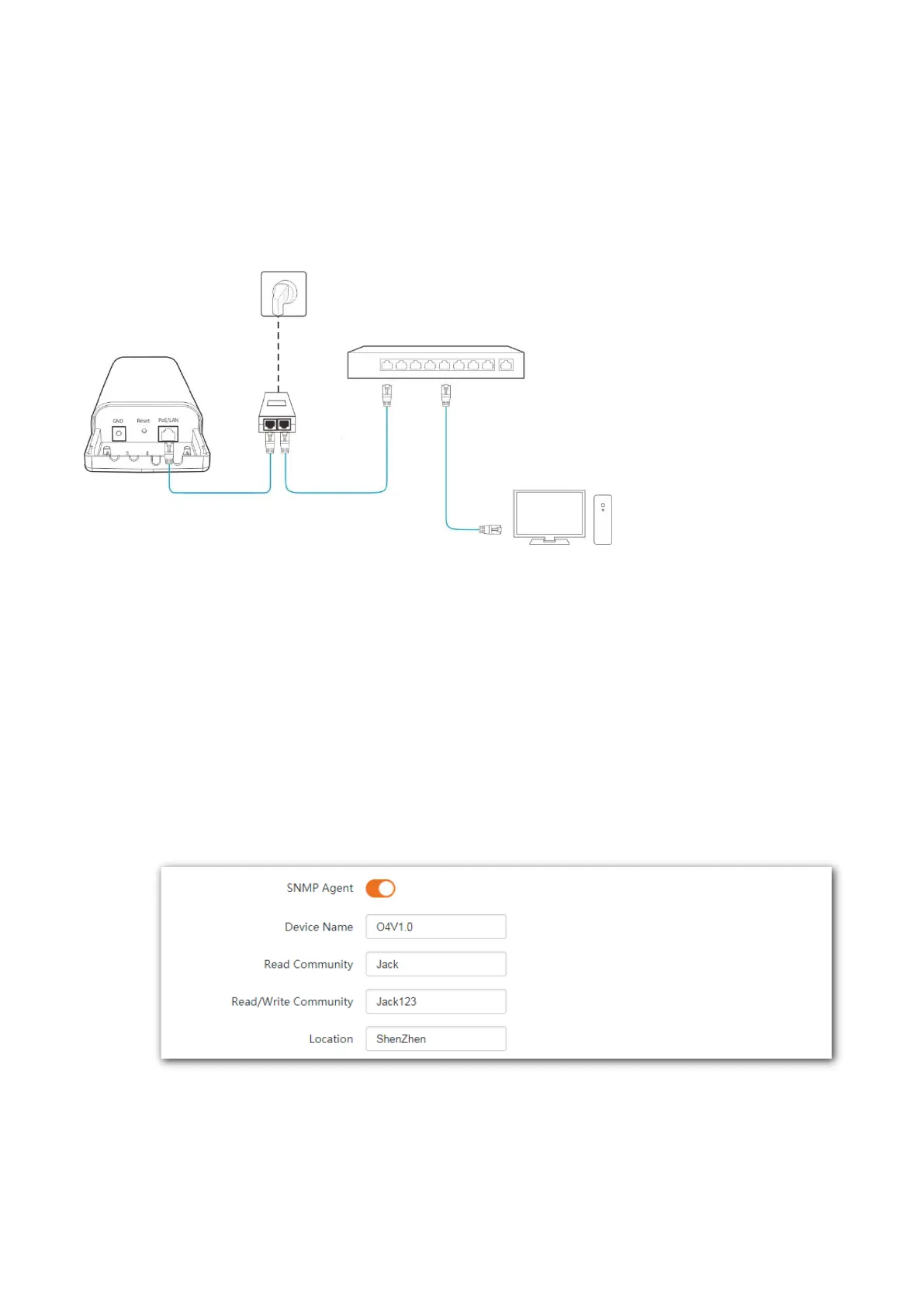

Switch
CPE: 192.168.2.1/24
NMS: 192.168.2.212/24
LAN
PoE

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
