Tenda O1 User Manual

169
Example of configuring DMZ host
The device is used in a company to deploy its network, and it is set to WISP mode.
Networking requirement
The administrator on business can visit the resources on web server in LAN.
You can use DMZ Host function to solve the problem.
Assume that:
− The WAN IP address of the device is 202.105.106.55.
− The information of the internal web server is shown as follows:
− IP Address: 192.168.2.100

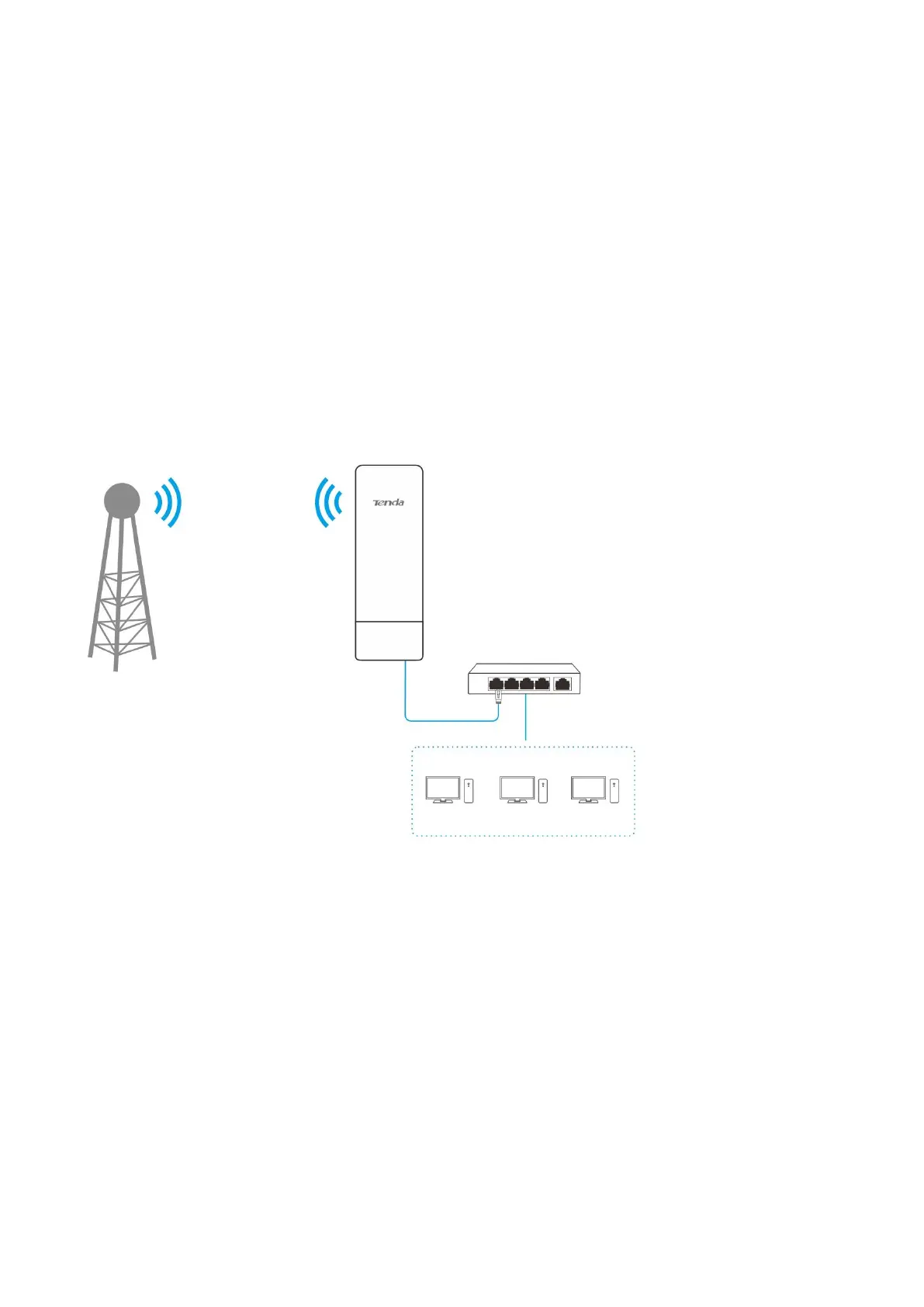

Network topology
Configuration procedures:
Prerequisite: Manually set static an IP address and related parameters for the web server to avoid
the service disconnection caused by the dynamic IP address.
Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Network Service.
Step 2 Enable the DMZ Host function.
Step 3 Enter the IP address of the computer to be set to DMZ host, which is 192.168.2.100 in
this example.
Step 4 Click Save on the bottom of this page.
Web Server
Switch
Computer1
Computer2
CPE: WISP mode
ISP Hotspot

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
