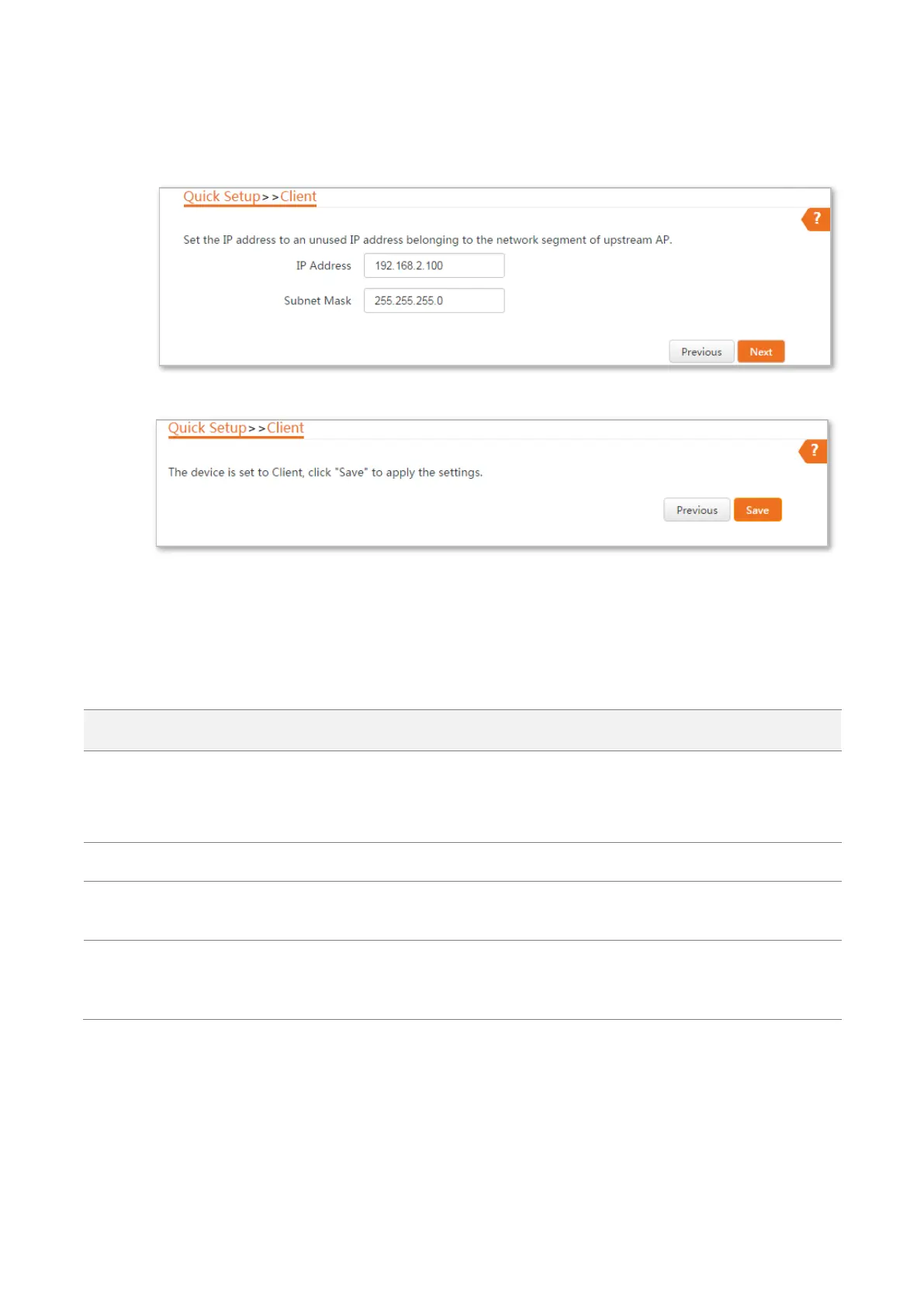

Step 5 Set the IP address to an unused IP address belonging to the same network segment as
that of the peer device. For example, if the IP address of the peer device is 192.168.2.1,
you can set the IP address of the device to 192.168.2.X (X ranges from 2 to 254). Then
click Next.
Step 6 Click Save, and wait until the device reboots to activate the settings.
----End
When LED1, LED2, and LED3 of the peer device are solid on, and LED1, LED2, and LED3 of the CPE
are blinking, the bridging succeeds.
Parameters description
Name
Description
Working modes
It specifies the working mode of this device.
Client mode: In this mode, the device works as a wireless adapter to connect to the
wireless network of upstream AP, and does not provide wireless network.
Upstream AP
It specifies the wireless network name (SSID) of the upstream AP.
Channel
It specifies the operating channel of the WiFi network to be bridged. It will be
automatically populated when you select an SSID to bridge.
Security Mode
It specifies the security mode of the WiFi network to be bridged. It will be automatically
populated when you select an SSID to bridge. If the WiFi network to be bridged has a
WiFi password, you need to enter the password manually.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
