300Mbps Wireless Access Point
802.1x Authentication
This security mode is used when a RADIUS server is connected to
the device. 802.1x, a kind of Port-based authentication protocol, is
an authentication type and strategy for users. The port can be either
a physic port or logic port (such as VLAN). For wireless LAN users, a
port is just a channel. The final purpose of 802.11x authentication is
to check if the port can be used. If the port is authenticated
successfully, you can open this port which allows all the messages to
pass. If the port isn’t authenticated successfully, you can keep this
port “disable” which just allows 802.1x authentication protocol

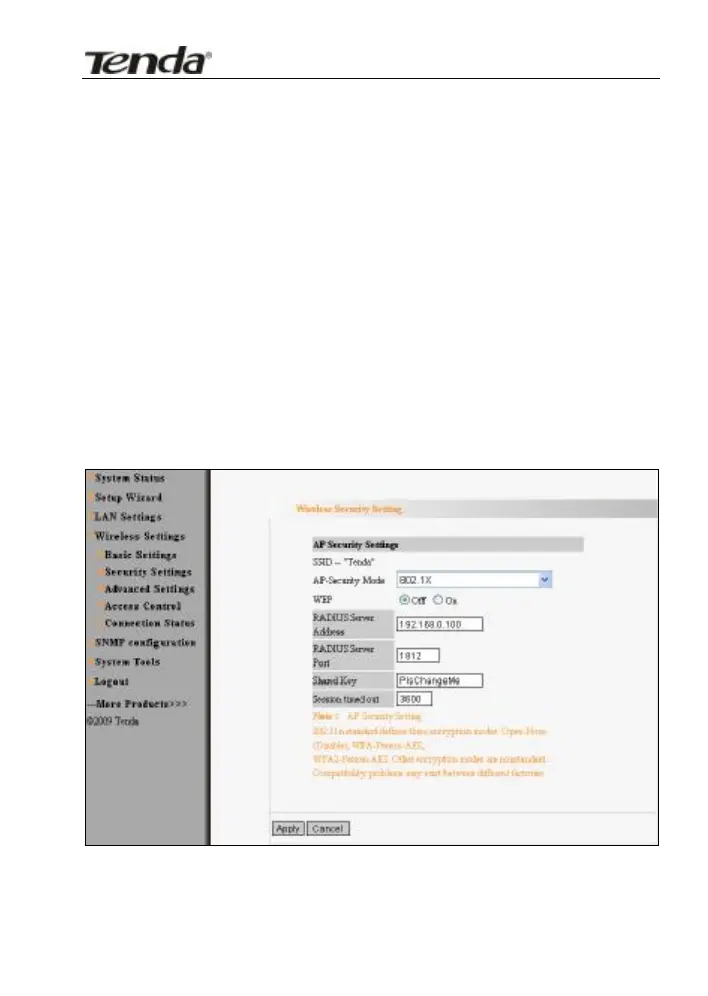

message to pass. Select “802.1x” from the drop-down menu to enter
the following window:
Setting Explanation
² 802.1x WEP Click “Enable/Disable” to enable or disable
the WEP algorithm.
