Tenda W311M User Manual

Wireless Network Adapter Users’ Guide
Infrastructure is a application mode which integrates
the wired and wireless LAN architectures. What makes it
different from Ad-Hoc is that the computer installed with
the wireless network adapter has to fulfill wireless
communication via AP or wireless router. It has “wireless
AP + wireless network adapter” mode and “wireless
router + wireless network adapter” mode.
Ad-Hoc is a special wireless mobile network
application mode. All nodes in the network are all equal.
When you are using wireless network adapter to
connect AP or wireless router, please select
Infrastructure.

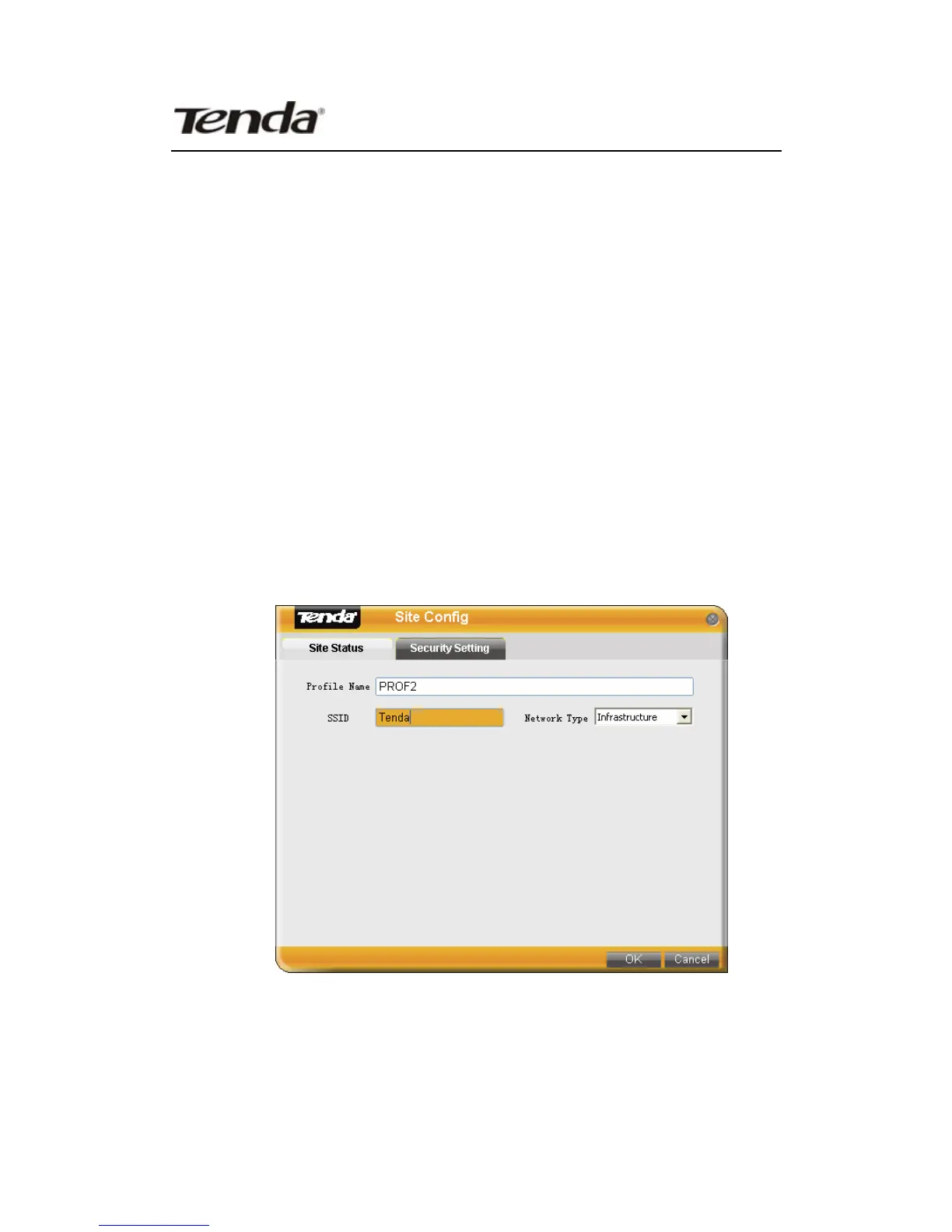

3) Security Setting: enables you to configure
authentication type, encryption type, and key. The
relevant configurations here must be the same as those
-17-

Tenda W311M Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC, CE, WEEE
Product color	Black, White
LED indicators	Activity, Link
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
Gain	2 dBi
Sustainability certificates	RoHS
Minimum RAM	64 MB
Minimum processor	733MHz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38.4 mm
Width	17.2 mm
Height	7.9 mm
