Wireless Network Adapter Users’ Guide

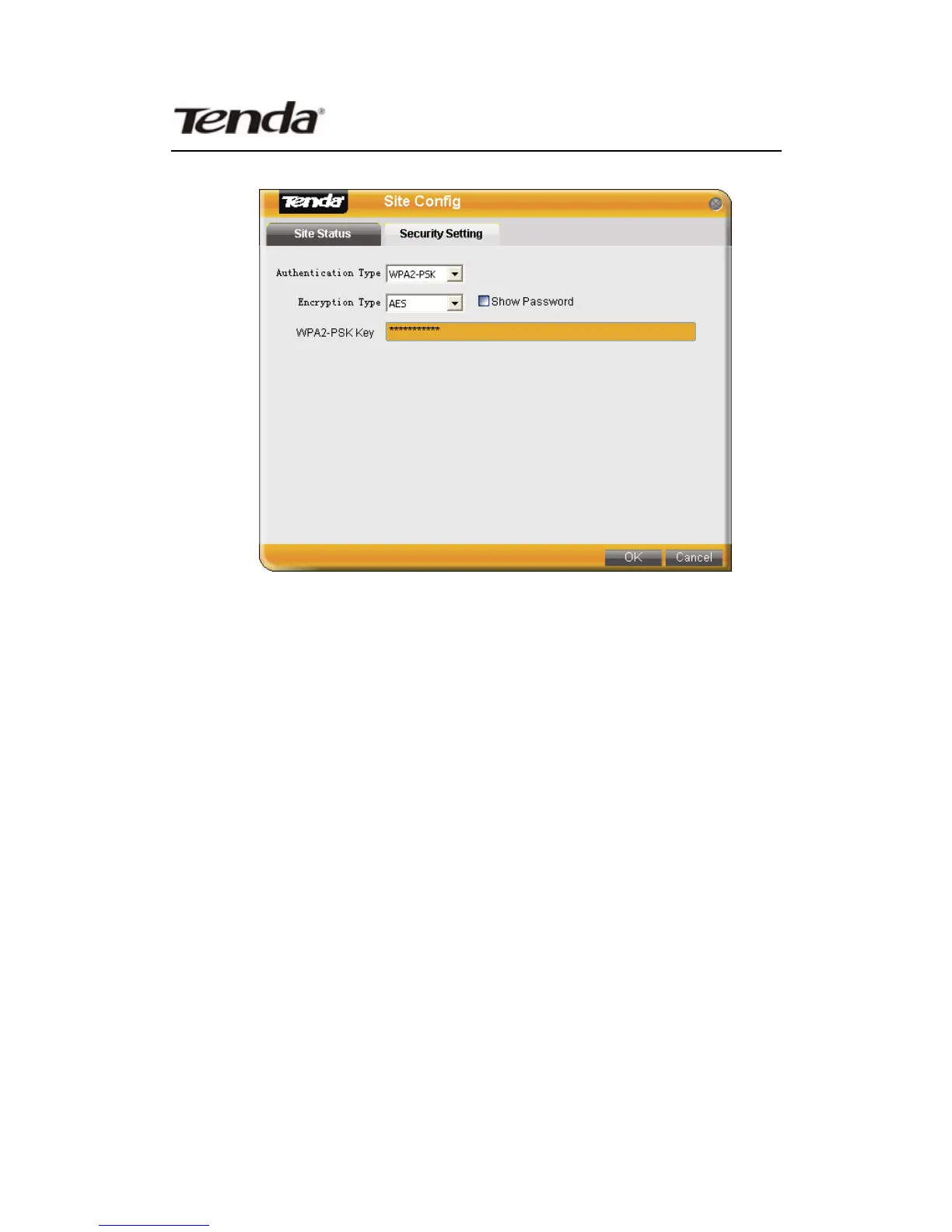

of the connected AP or wireless router.
Note: If the wireless router or AP you want to connect
closes SSID broadcast function, the wireless network
adapter will not be able to scan this wireless network
SSID. However, you can create the corresponding
configuration file to connect.
4） Finish the above, the added wireless network
information will be shown in the profile name list. Select
the profile name and click “Connect” or double click
profile name to connect the wireless network device.
-18-

Tenda W311M Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC, CE, WEEE
Product color	Black, White
LED indicators	Activity, Link
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
Gain	2 dBi
Sustainability certificates	RoHS
Minimum RAM	64 MB
Minimum processor	733MHz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38.4 mm
Width	17.2 mm
Height	7.9 mm
