Tenma 72-7740 - The Meter Structure

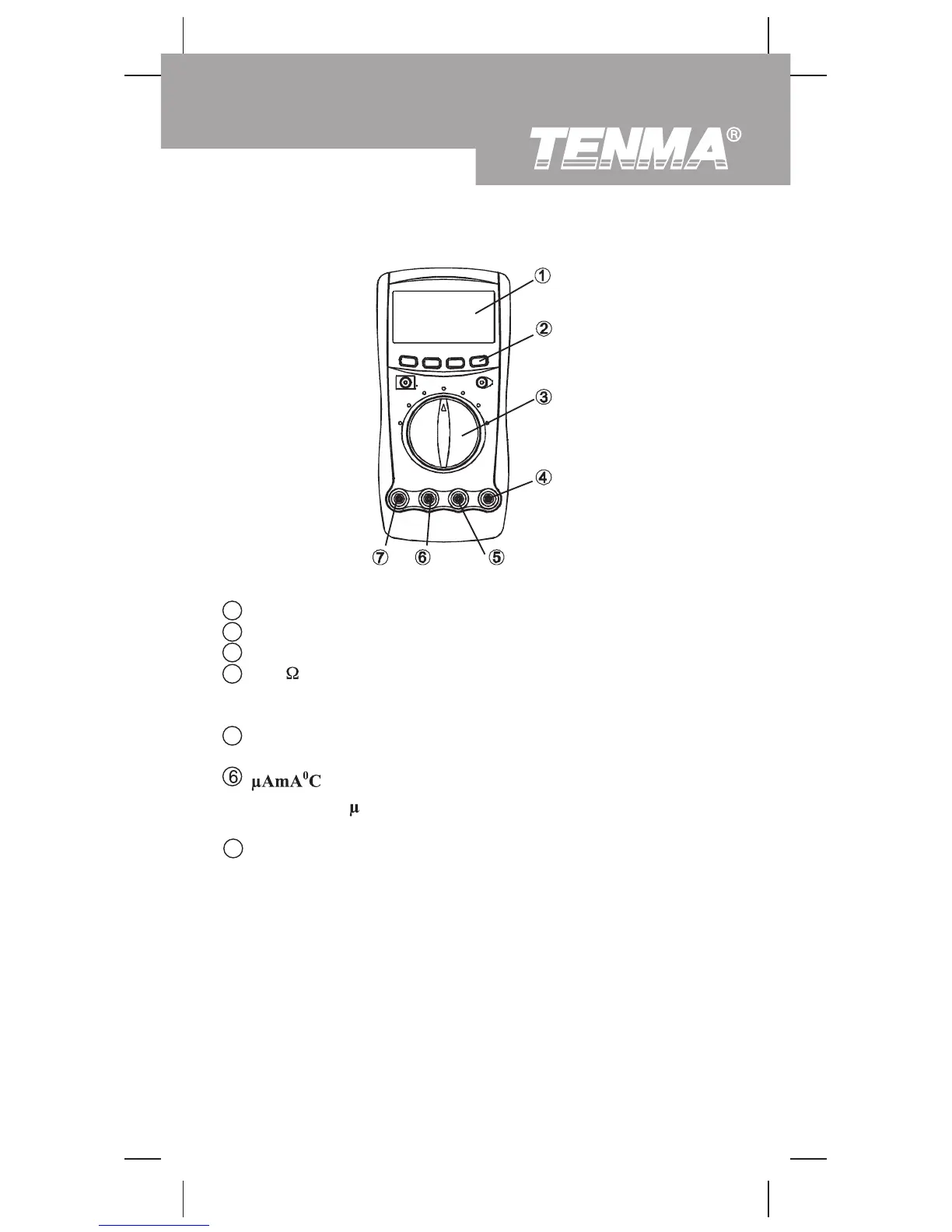

The Meter Structure (see figure 1)
(figure 1)
1 LCD Display
2 Functional Buttons
3 Rotary Switch
4 HzV
Input Terminal:
Input for voltage, frequency/duty cycle, resistance, diode,
continuity and capacitance measurements.
5 COM Input Terminal:
Return terminal for all measurements.
Input Terminal:
Input for 0.1 A to 400.0mA current measurements and
temperature testing.
7 10A Input Terminal:
Input for 0.01A to 10.00A current measurements.
7
Model 72-7740/72-7745: OPERATING MANUAL
