FUNCTIONS
INPUT LIMITS
• 2 in 1 LAN Tester & Multimeter is a innovative tester that allows the user to
measure DC/AC voltage/current, resistance, continuity, diode and verify the cable
continuity, open short or cross-connect. The included remote terminator allows
testing of installed cable either at a wall jack or a patch panel.
• 3-1/2 digit (2000 count) LCD display for multimeter functions.
• LED Displays the actual pin conguration of 10BASE-T AND 10BASE-2 Thin
Ethernet, FJ45/RJ11 modular, 258A, tia-568a/568b and Token Ring cables.
• Double moulded housing.
• Provides easy to read continuity and fault status display.
• Auto or manual scanning for LAN tester.
Function Maximum Input
V DC or V AC 600V AC/DC
µA AC/DC
200mA/250V fast acting fuse
Resistance, Diode & Continuity test 600V AC/DC
4
5
3
2
1
6
7
8
9
10
11
12
13
15
17
16
14

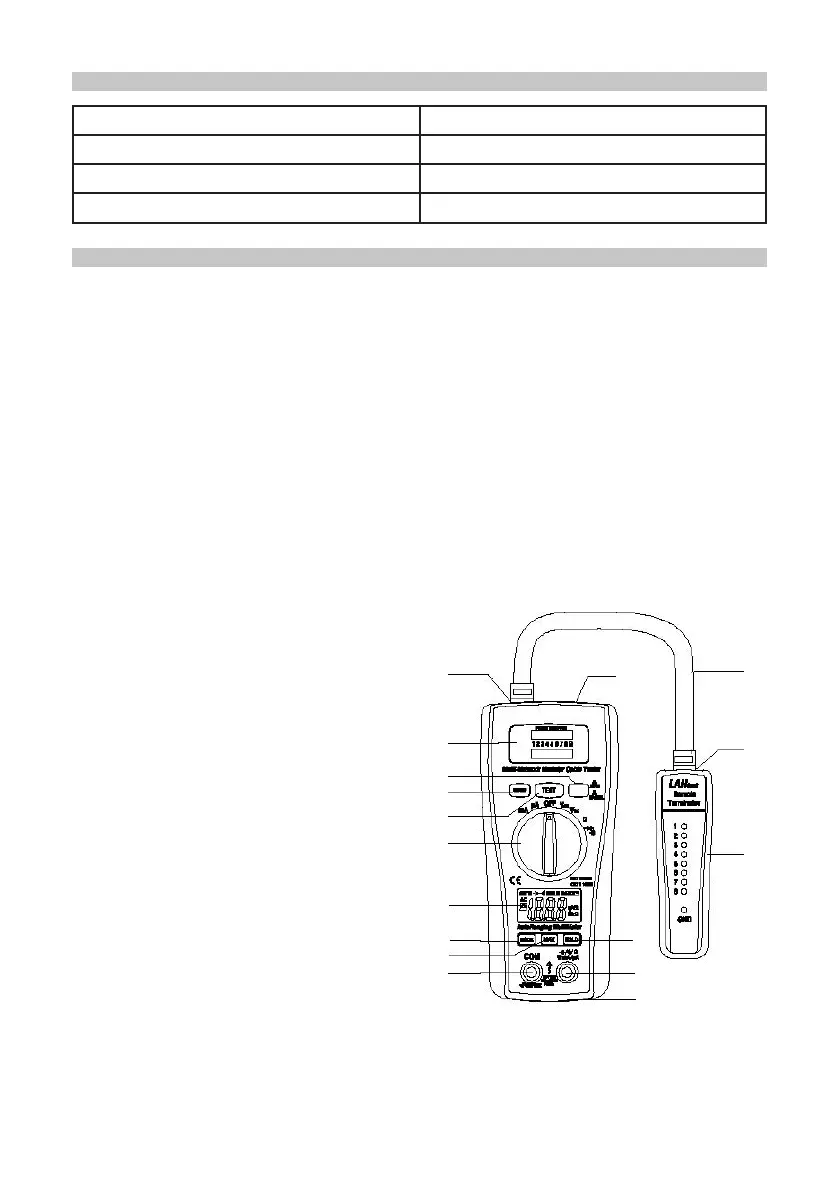

1. Remote terminator with LED display
for receiving end
2. Jack RJ45
3. LAN-connector
4. Jack RJ45
5. Jack RJ45
6. Led display for sourcing end
(Jack 1) & Led display for receiving
end (Jack 2)
7. Test switch for auto scan
8. LAN tester Power switch
9. Test switch for manual scan
10. Function switch
11. 3 1/2 Digit (2000 count) LCD display
for DMM functions
12. MODE button
13. MAX Hold button
14. Data Hold button
15. COM input jack
16. V, Ω, uA, mA input jack
17. Battery Cover
