4.7. CONTINUITY TEST
1. Select “V/ “ range.
2. Insert the test leads into the jacks. The red test lead
plug into V/Ω jack, and the black test lead plug into
COM jack.
3. Connect the two long ends of test leads to the
desired circuit, then reading will be displayed while
the buzzer sounds the resistance value is lower than
40Ω approximately.
4.8. FREQUENCY MEASUREMENT
1. Select “Hz” range.
2. Insert the test leads into the jacks, the red test lead
plug into V/Ω jack, and the black test lead plug into
COM jack.
3. Connect the two long ends of test leads in parallel to
the desired circuit, then reading will be displayed.

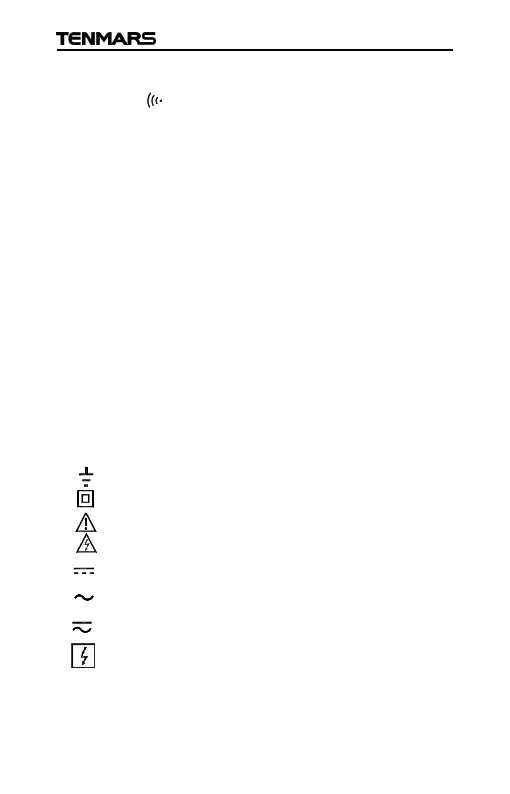

5. SYMBOLS DESCRIPTION
Ground
Meter Double insulated
Caution
Danger high voltage: risk of electric shock
DC Voltage or Current
AC Voltage or Current
DC/AC Voltage or Current
Application around and removal from hazardous
live conductors is permitted
