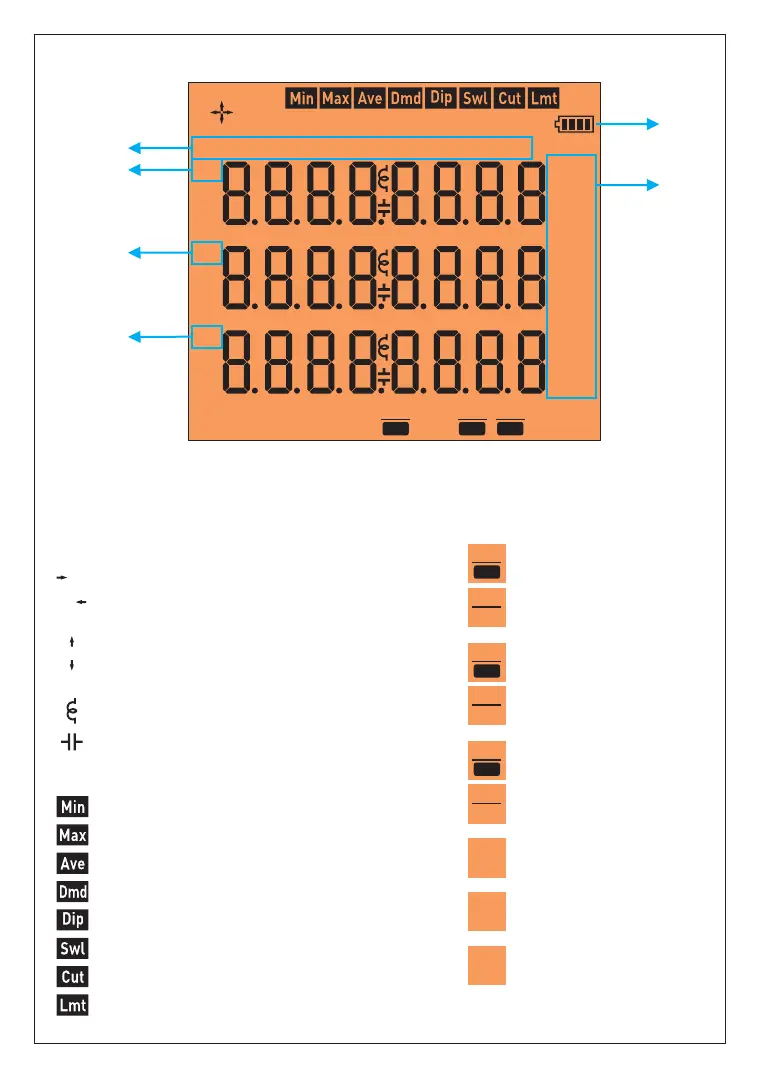

7- Introduction of Screen:
1 - Indicates the unit of the value.
2 - Indicates which phase the value belongs to .
4 - Indicates battery level of clock time.
Indicates that the values shown are minimum.
Indicates that the values shown are maximum.
Indicates that the values shown are average.
Indicates that the values shown are demand.
Indicates that the values shown are over 10%.
Indicates that the values shown are below 10%.
Indicates that the values shown are below 40%.
Indicates that the values shown are over 80% in current and over 20% in harmonics.
Specified that the indicated active energies are imported.
Specified that the indicated active energies are exported.
Specified that the indicated reactive energies are inductive.
3 - Indicates displayed values. V- voltage, I-current, F-frequency, S-apparent power, P- active power,
PF- power factor, THD-I- total current harmonics, THD-V- total voltage harmonics, Q-reactive power.
Specified that the indicated reactive energies are capacitive.
Specified that the indicated reactive energies are inductive.
Specified that the indicated reactive power are capacitive.
Indicates that communication is done.
Din1: There is voltage(1)
Out2: Relay 2 is pulled
(short circuit)
Out1: Relay 1 is pulled
(short circuit)
Out1: Relay 1 is released
(open circuit)
Out2: Relay 2 is released
(open circuit)
Total active energy
Total inductive reactive energy
Total capacitive reactive energy
Din1: There is no voltage(0)
