Teral VKD-e Series - Internal Structural Drawing

2-5

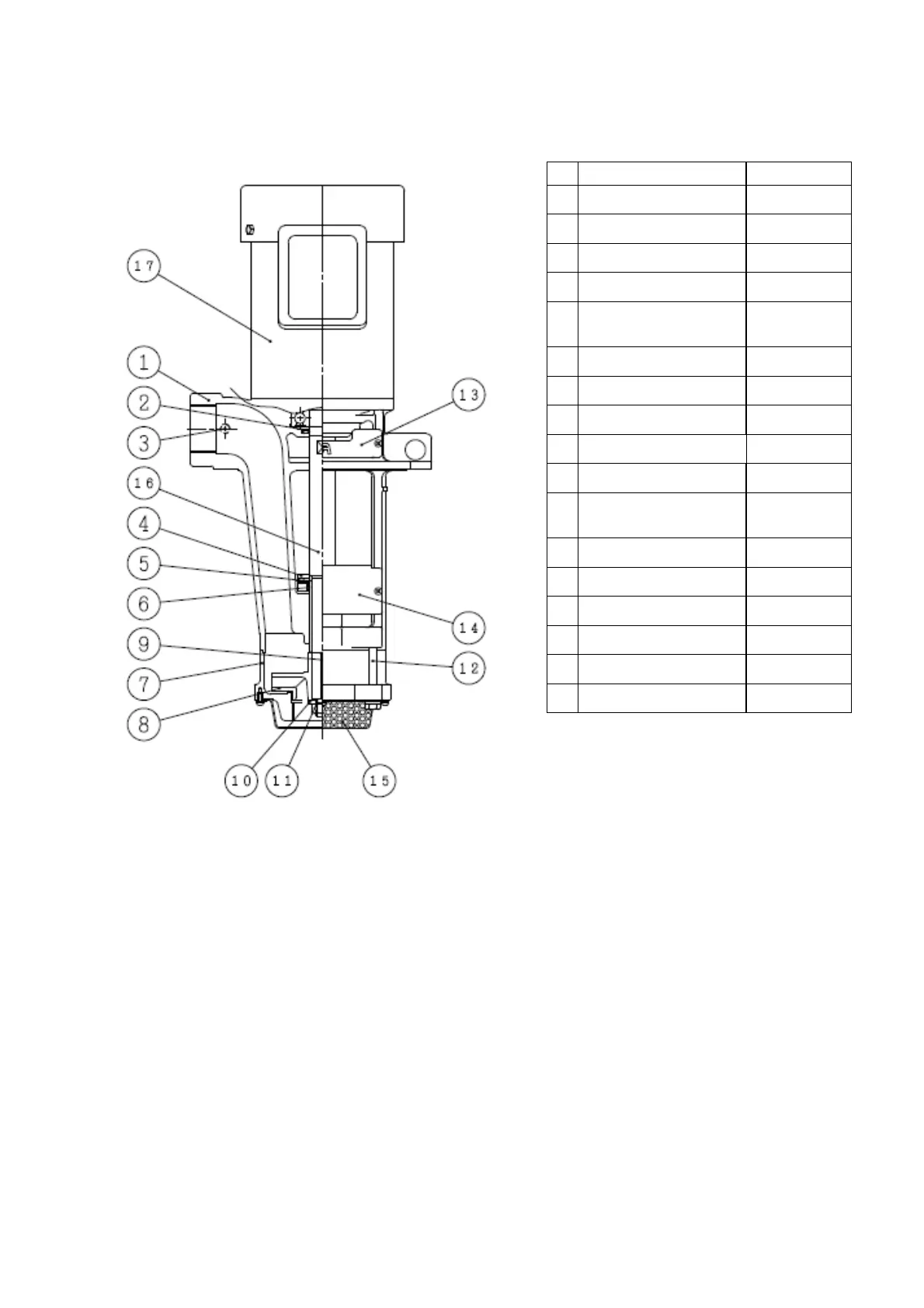

2.7 Internal structural drawing
№ Part name Material
1 Pump leg FC200
2 Oil seal NBR
3 Air vent valve SUS
4 Oil deflector SUS304
5
Hexagon socket
head screw
SCM435
6 O-ring Fluororubber
7 Casing FC200
8 Impeller FC200
9 Key S45C-D
10 Washer SPCC
11
Hexagon nut
(left-hand thread)
SS
12 Tight bolt SS
13 Side plate SPCC
14 Side plate SPCC
15 Strainer SPCC
16 Motor shaft S45C-D
17 Motor -
Note) The structure and others are subject
to change without notice.
