Teral VKD-e Series - 2 Configuration and Overview of the Pump; Part Names and Functions; Type Description

2-1
2. Configuration and overview of the pump
This chapter describes the standard specifications. For details, refer to the specifications including
the external dimensions drawing and the internal structure drawing.
Also if you purchased a custom-made product with special specifications, refer to the
specifications including the external dimensions drawing and the internal structure drawing,
because the contents may differ partially.
Caution
Do not use this product under any conditions other than those provided in
the specifications. Otherwise, an electric shock, a fire, leaks, or failures
may occur.
2.1 Part names and functions

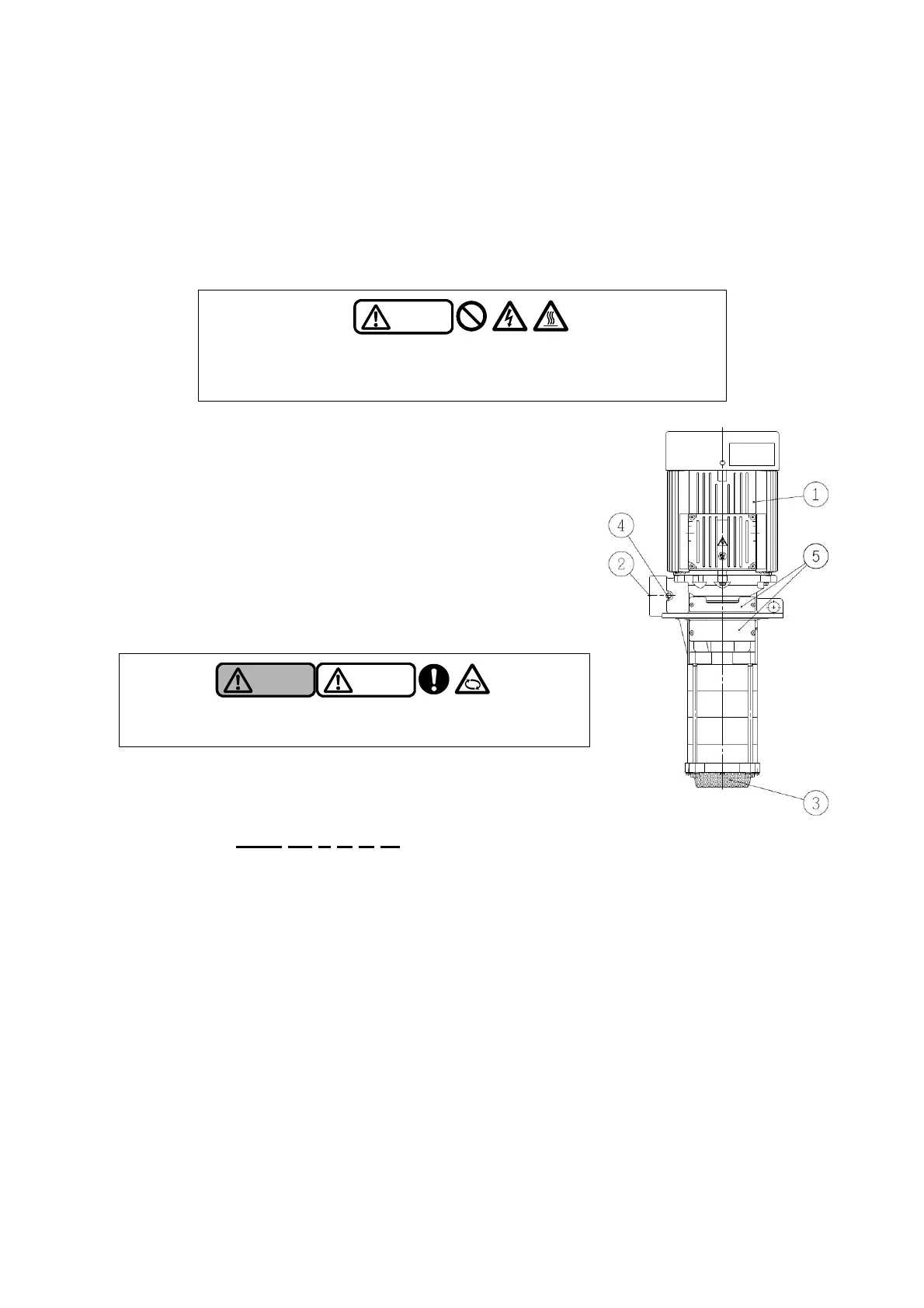

 Motor
 Discharge port
 Suction port (Strainer)
 Air vent
Removes the air in the pump to prevent dry run, if it is
impossible to open the discharge piping to the atmosphere.
 Side plate
2.2 Type description
Warning Caution
Be sure to keep the side plates and strainer installed when the
pump is running. Failure to observe this may cause an injury.
 Model
 Output code
(11:0.75kW, 13:1.5kW, 14:2.2kW, 15:3.0kW)
 Series No.
 Phase (A: 3-phase)
 Number of impellers & leg length
[standard: 260 mm (2.2kW or less), 300 mm
(3.0kW), long: 400 mm]
(A: 1 pc., standard, B: 2 pcs., standard,
C: 3 pcs., standard, D: 4 pcs., standard,
F: 2 pcs., long, G: 3 pcs., long,
H: 4 pcs., long)
 Top Runner Energy Efficiency Standards
(IE3-equivalent) motor-equipped pump
VKD 15 1 A D -e
   
