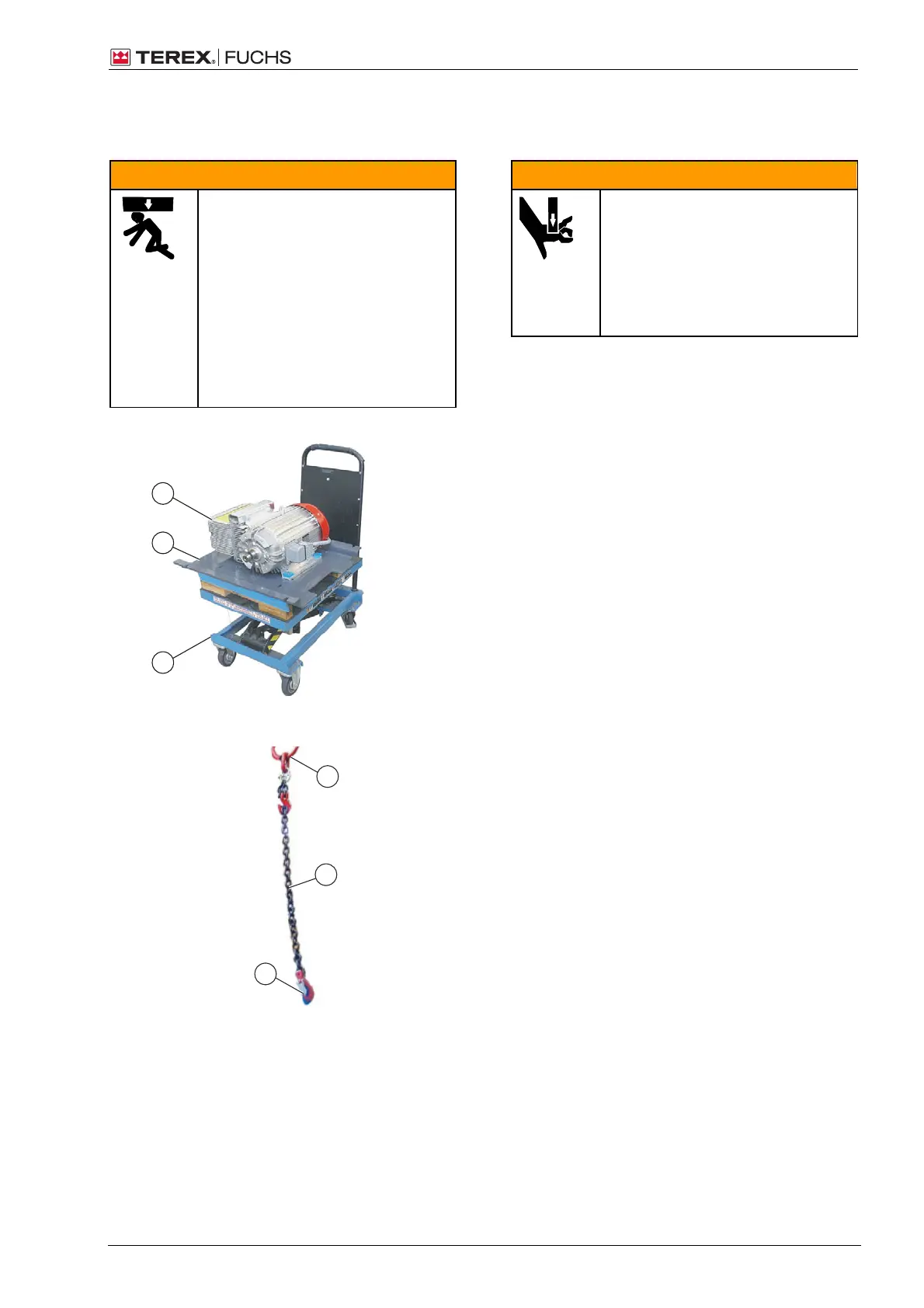

3 Information for installation
3.2 Lifting equipment and devices
Safety
j WARNING
Risk of bruising when using
incorrect lifting equipment
• Observe component weight.
• Consider auxiliary materials, for
example tank filling.
• Do not route cables over sharp
edges.
• Do not route chains around
corners.
In emergency: Provide first aid.
Consult a doctor immediately.
j WARNING
Risk of bruising due to
incorrect storage places
• Secure components lowered
down against toppling over.
• Provide sufficient free space.
In emergency: Provide first aid.
Consult a doctor immediately.
340-1560-12.65-01
1
2
3
Generator on industrial truck (example)
Installation tool
Suitable industrial truck (3) with which the
generator (1) mounted on the generator plate
(2) can safely be moved up into the machine.
350-1460-12.65-87
2
1
3
340-1560-12.65-87
Lifting equipment for generator
Lifting equipment for generator
Lifting equipment with lug (1), chain (2), and
load hooks (3). It must be possible to protect
the load hook against slipping out.
h Weight of generator: on page 59
12.65-SA10403-en-110808 Version 11.08.2008 9 (60)
