5 Installation of generator
Checking the magnet cable
Check to make certain machine move-
ments could not cause the magnet cable
to come under tension or be squeezed.
Check whether all hose brackets are
closed and the magnet cable is adequately
fastened with cable ties.
5.9 Inserting the air hose (13 kW generator only)
340-1560-12.65-58
1
32

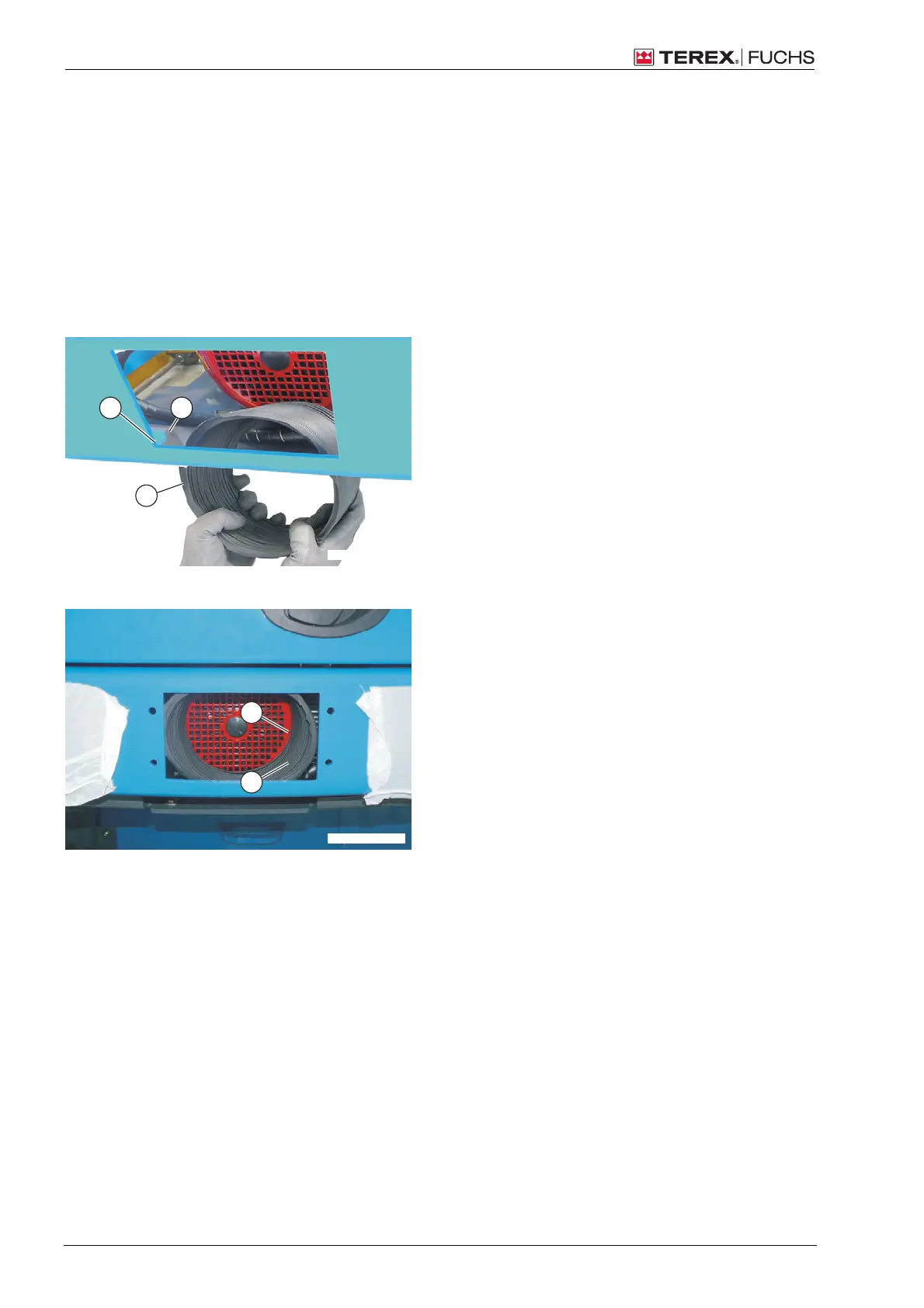

Inserting the air hose (view: service ladder; bottom)
If it has not been done, remove the cover
plate.
h on page 15: cover plate
Press the air hose (1) together.
Push the air hose through between the
uppercarriage (2) and generator plate (3).
340-1560-12.65-57
2
1
Aligning the air hose (view: service ladder; bottom)
Align the air hose (1) so that it is resting
evenly on the protective grating of the
generator (2).
Reinstall the cover plate.
46 (60) Version 11.08.2008 12.65-SA10403-en-110808
