5 Installation of generato
340-1560-12.65-110
14
3
2

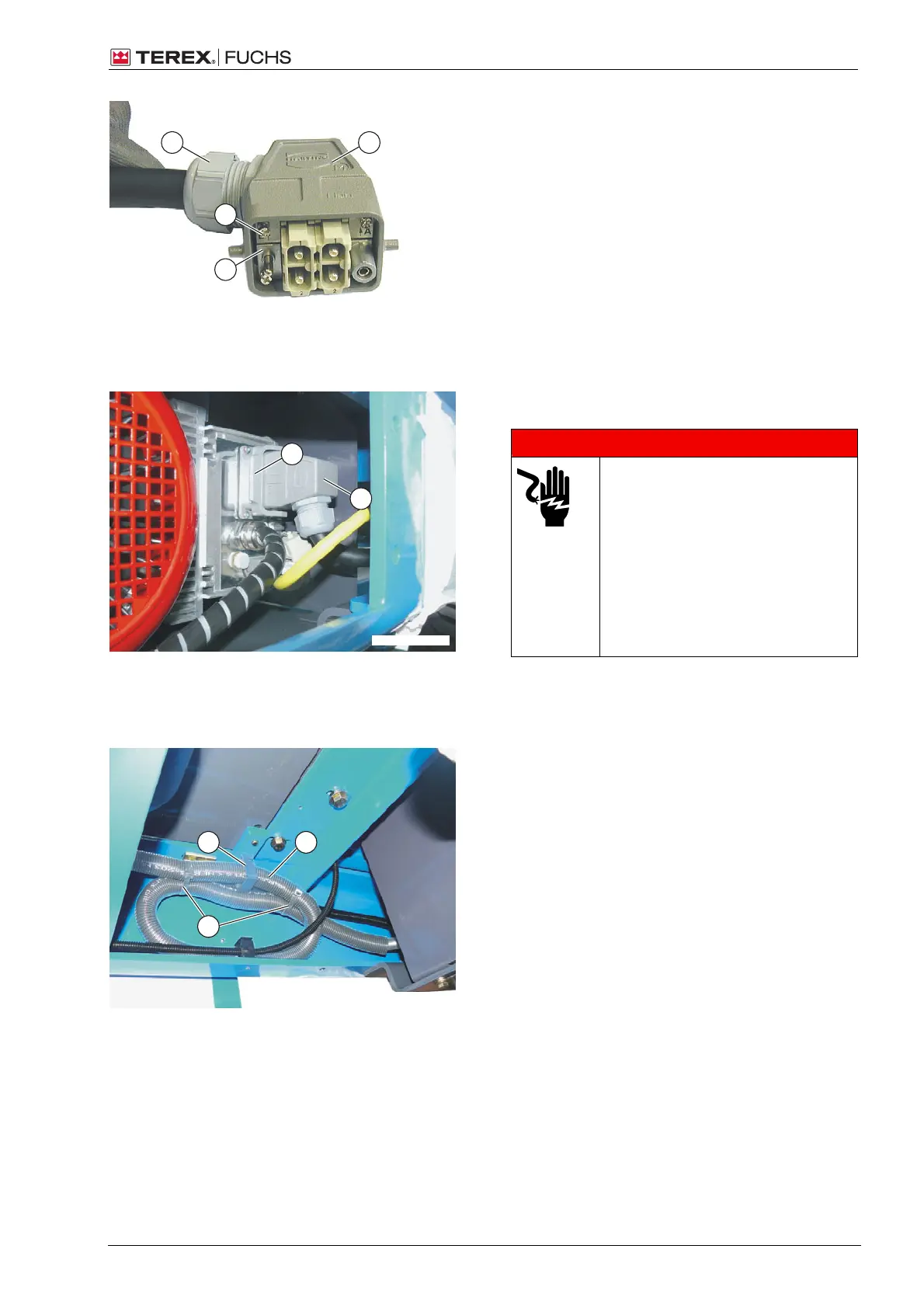

Assembled Harting connector
Fasten the support (2) in the plug housing
(1) with the fastening screws (3).
Tighten the swivel nut (4).
340-1560-12.65-39
2
1
Laying the magnet cable away from the generator (view: ser-
vice ladder; bottom))
Inserting the Harting connector
n DANGER
Electrical shock causing death
• Do not insert the magnet cable
until the coupler socket has al-
ready been connected. Failure
to observe this instruction places
the other cable end under cur-
rent if the machine is acciden-
tally turned on.
In emergency: Consult a doctor
immediately.
Insert the plug (1) into the generator.
Secure the plug with safety clip (2).
340-1560-12.65-XX
340-1560-12.65-66
12
3
Magnet cable with compensation loop (view: service ladder;
underneath)
Form the magnet cable into a compensa-
tion loop (1).
Fasten in place with corrugated hose
holder (2).
Fasten with cable ties (3).
Fasten the magnet cable to the boom with
corrugated hose holders and cable ties.
12.65-SA10403-en-110808 Version 11.08.2008 45 (60)
