Terex FUCHS MHL340 D User Manual

5 Installation of generator
,
340-1560-12.65-107
21
4
3

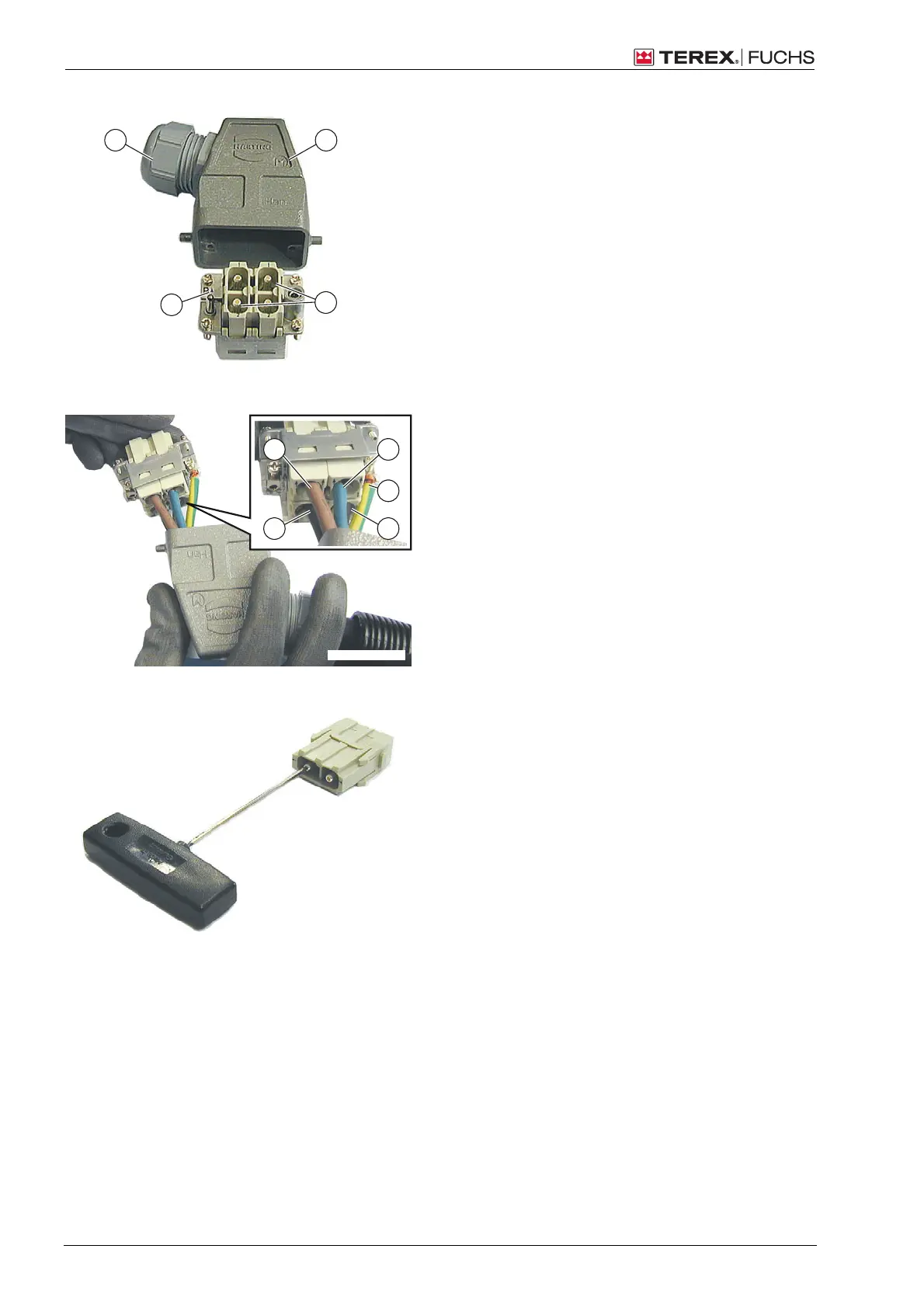

Harting connector
Installing the Harting connector
 Screw the cable screw connection (1) into
the plug housing (2).
 Push the plug inserts (3) into the support
(4).
 Loosen the swivel nut on the cable con-
nection (1) and push it over the magnet
cable.
 Guide the magnet cable through the cable
connection (1) into the plug housing (2).
340-1560-12.65-108
2
3
4
1
5
Cable assignment for Harting connector
 Guide the cable ends into the plug inserts.
(1): Brown
(2): Blue
(3): Green/Yellow
(4): Gray
(5): Black
340-1560-12.65-109
Screwing the cable ends onto the plug insert
 Tighten all cable ends.
44 (60) Version 11.08.2008 12.65-SA10403-en-110808
