5 Installation of generato
5.10 Variations for multi-purpose stick (option)
340-1560-12.65-51
2
3
4
1

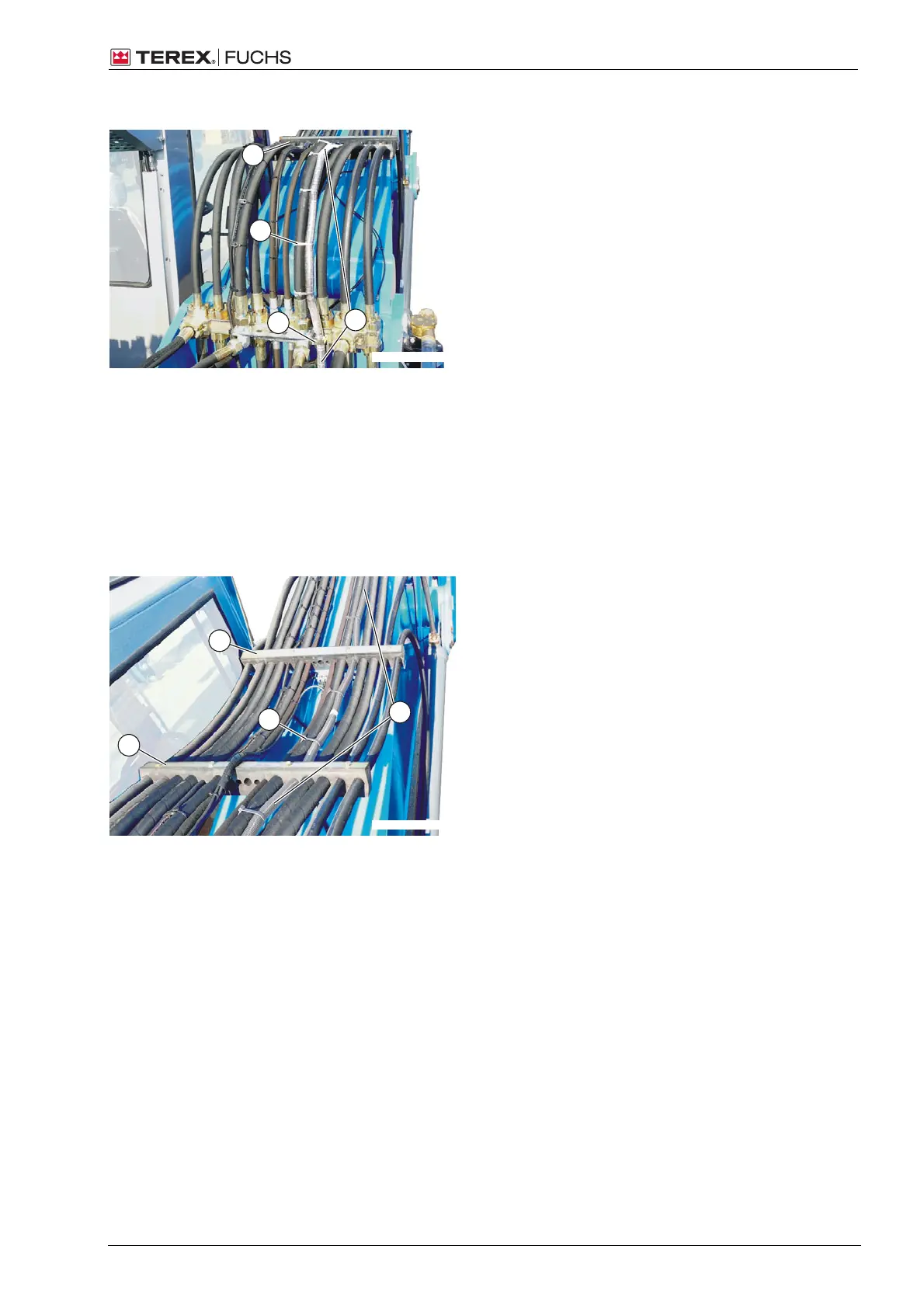

Magnet cable to the boom (view: service ladder; right)
Laying the magnet cable over the boom to
the coupler socket
Cable routing varies somewhat for machines
with an optional multi-purpose stick.
Connect the magnet cable to the genera-
tor as described for standard machine and
lay it to the boom.
h on page 35: Attaching and connecting
the coupler socket
Open the hose bracket (4) enough to push
the magnet cable through.
Guide the magnet cable (1) onto the
boom.
Fasten the magnet cable onto the connec-
tion bar later with the corrugated hose
holder (2) and onto the hydraulic hose (3)
with cable ties.
Close the hose bracket later.
340-1560-12.65-53
3
4
1
2
Magnet cable to the boom (view: service ladder; right)
Slightly open the hose bracket (4).
Guide the magnet cable (1) from the hose
bracket (3) through the hose bracket (4).
Fasten the magnet cable onto the hydrau-
lic hose later with cable ties (2).
Close the hose bracket later.
12.65-SA10403-en-110808 Version 11.08.2008 47 (60)
