5 Installation of generator
5.11 Deviations for "Quick Connect" equipment
340-1560-12.65-111
1
5
2
4 3
6

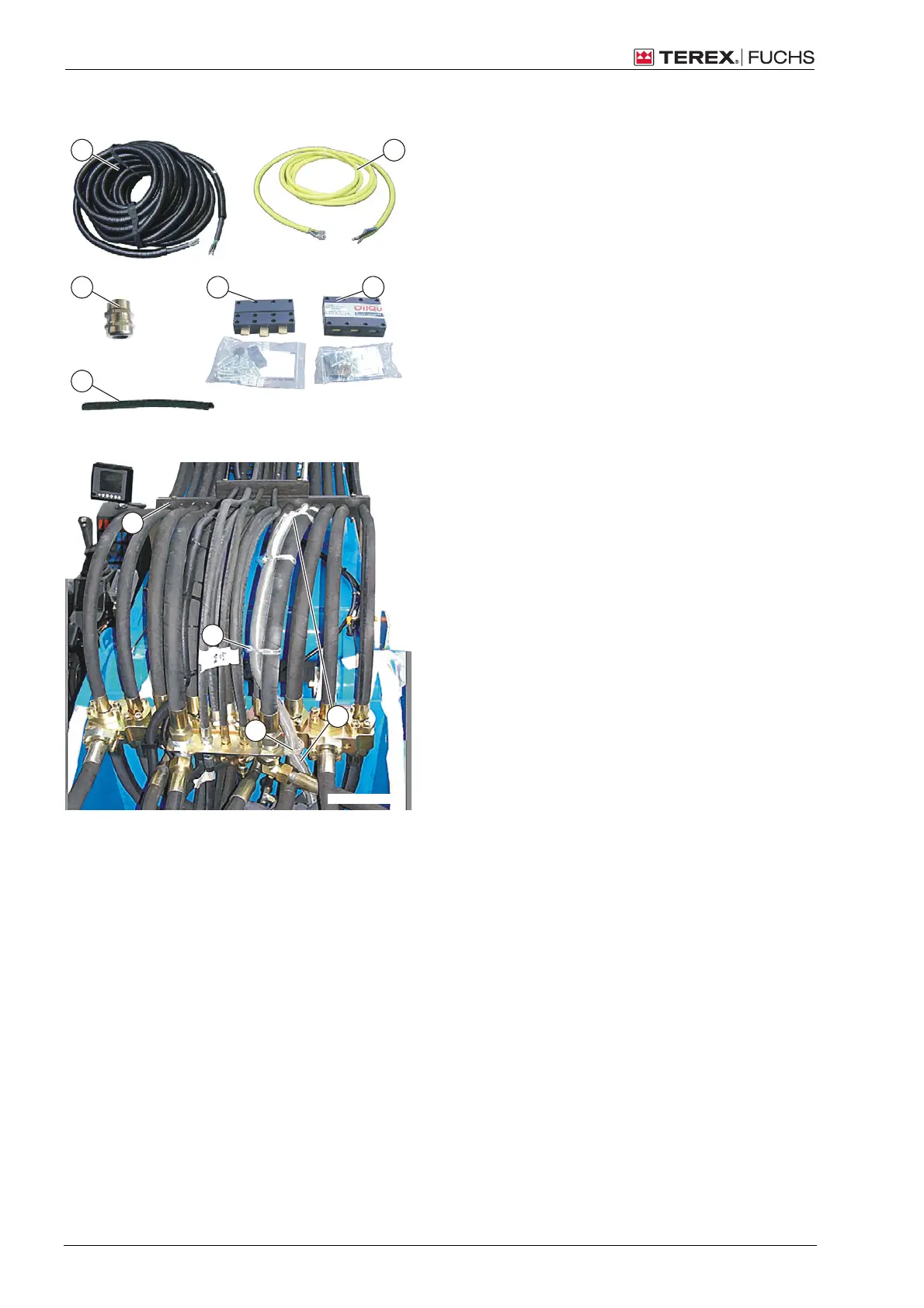

Additional parts required for Quick Connect
For machines with optional "Quick Connect"
equipment, a magnet plug and magnet
socket must be attached and connected at
the coupling point.
Have these parts ready:
1) Magnet cable for generator
2) Magnet cable for coupler socket
3) Magnet socket with small parts
4) Magnet plug with small parts
5) Counter nut
6) Spiral protector
340-1560-12.65-XX340-1560-12.65-77
1
2
3
4
Magnet cable to the boom (view: service ladder; right)
Laying the magnet cable over the boom to
the coupler socket
Cable guiding deviates somewhat for ma-
chines with an optional multi-purpose stick.
Connect the magnet cable to the genera-
tor as described for standard machine and
lay it to the boom.
h on page 35: Attaching and connecting
the coupler socket
Open the hose bracket (4) enough to push
the magnet cable through.
Guide the magnet cable (1) onto the
boom.
Fasten the magnet cable onto the connec-
tion bar later with the corrugated hose
holder (2) and onto the hydraulic hose (3)
with cable ties.
Close the hose bracket later.
50 (60) Version 11.08.2008 12.65-SA10403-en-110808
