5 Installation of generato
r
340-1560-12.65-XX 340-1560-12.65-78
1
4
3
2
5

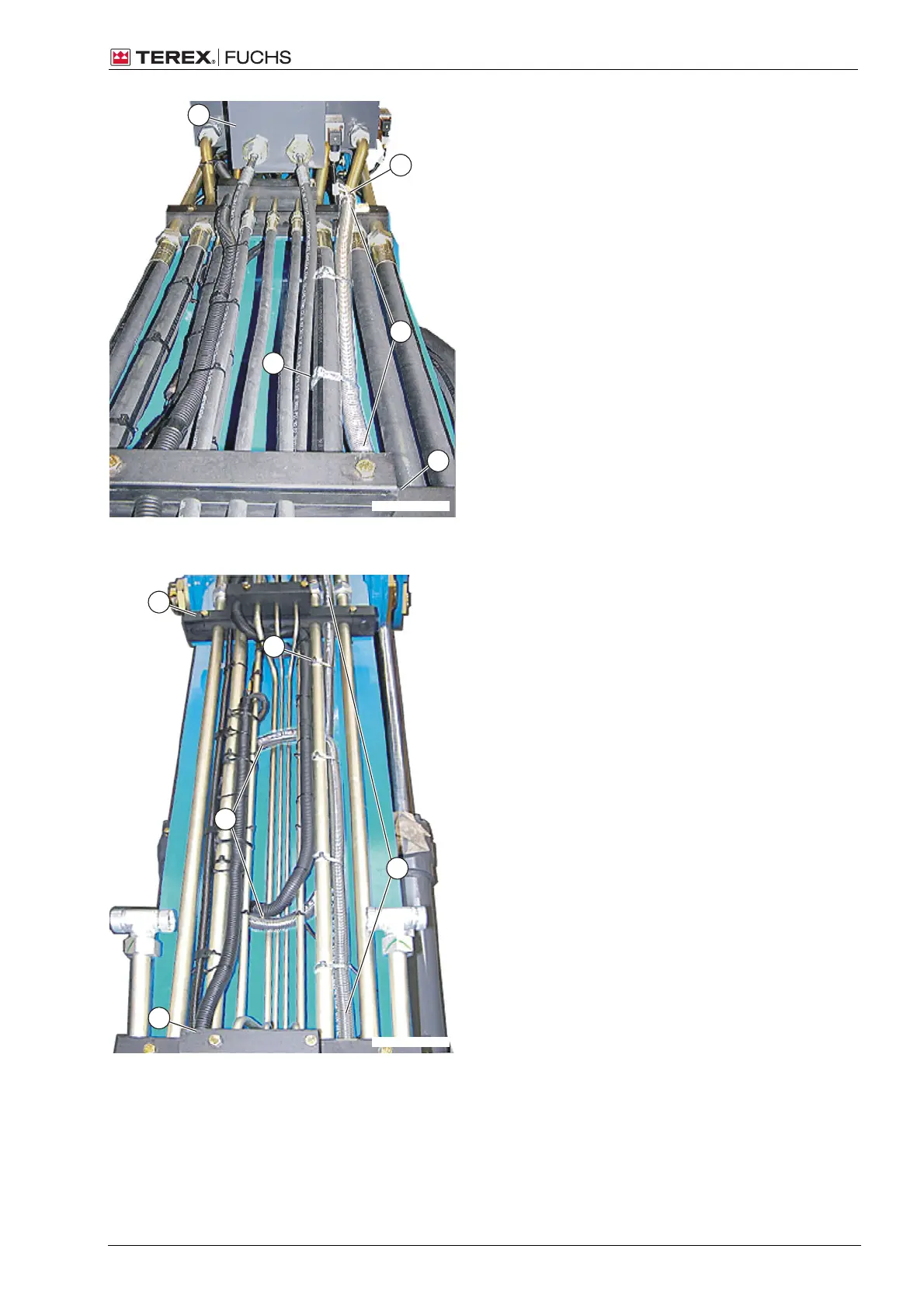

Magnet cable on the boom to the safety filter (view: service
ladder; right)
 Open the hose bracket (5) enough to push
the magnet cable through.
 Guide the magnet cable (1) under the
safety filters (3).
 Fasten the magnet cable onto the hose
bracket later with a clamp (2) and onto the
hydraulic hose (4) with cable ties.
 Close the hose bracket later.
340-1560-12.65-XX 340-1560-12.65-79
5
2
1
4
3
Magnet cable to the boom (view: service ladder; right)
 Open the hose bracket (2) and (5) enough
to push the magnet cable through.
 Guide the magnet cable (1) to the dipper-
stick. Lay a loop to compensate for extra
length (3).
 Fasten the magnet cable on the line with
cable ties (4) later.
 Close the hose bracket later.
