5 Installation of generato
12.65-SA10403-en-110808 Version 11.08.2008 35 (60)

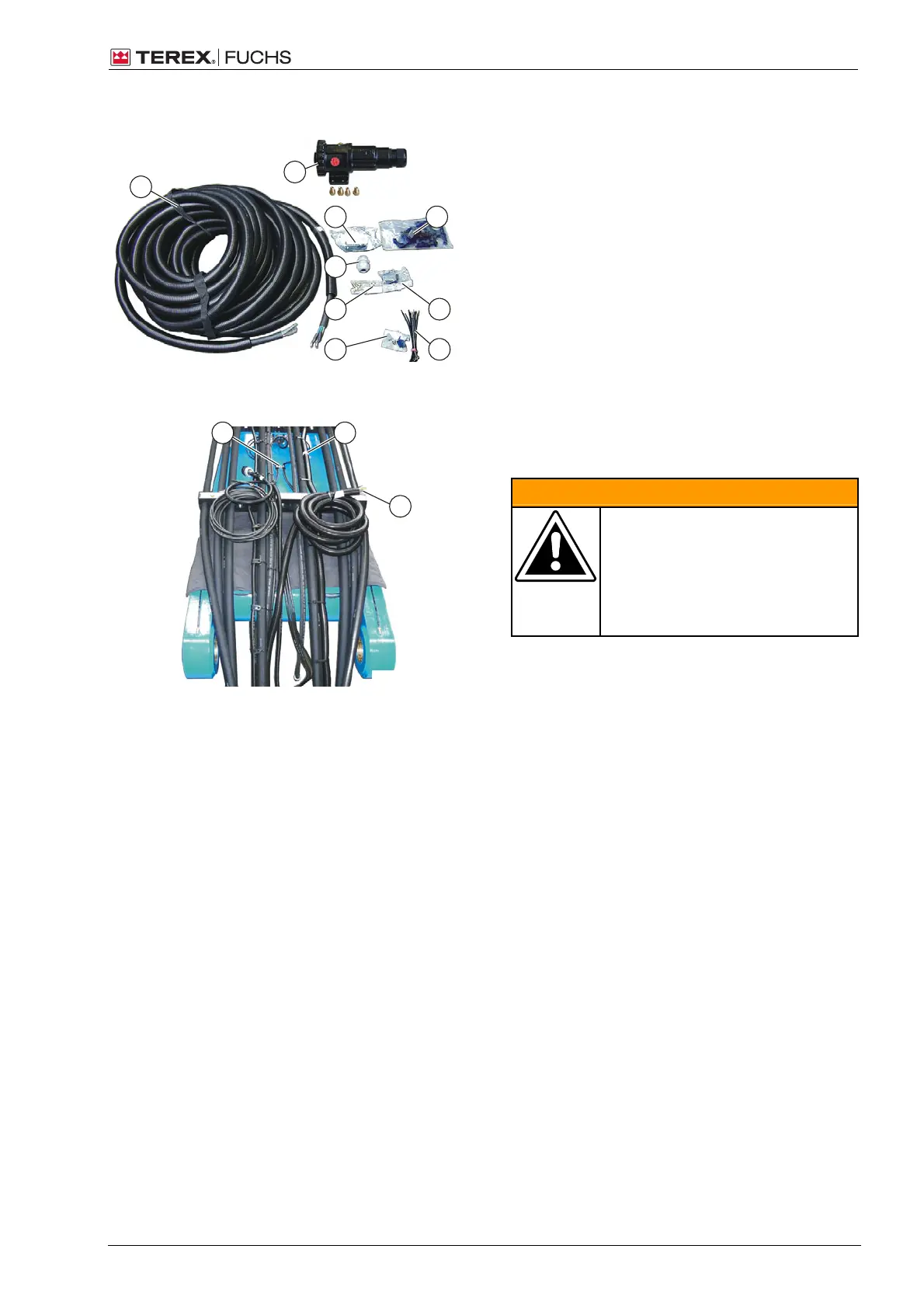

5.8 Attaching and connecting the coupler socket
340-1560-12.65-99
4
7
1
5
2
3
6
8 9
Add-on kit for magnet connection
Have these parts ready:
1) Magnet cable
2) Coupler socket with screws
3) Harting connector
4) Corrugated hose holders
5) Cable screw connection
6) Screws for corrugated hose holders
7) Plug inserts
8) Cover for corrugated hose holders
9) Cable ties
340-1560-12.65-XX
340-1560-12.65-88
1
3
2
Lay out the magnet cable on the boom (view: service ladder;
right)
Laying the magnet cable over the boom to
the coupler socket
j WARNING
Danger due to cable ends with
sharp edges
• Tape off the cable end with
insulating tape before laying it.
In emergency: Provide first aid.
Consult a doctor immediately.
Roll out the magnet cable and lay it on the
boom so that the cable end is lying in the
direction of the generator without contacts
(3).
Insulate the cable end (3) for your own
safety.
Align the magnet cable so that the white
mark (1) is located approximately opposite
the fastening for the lubrication lines (2).
