5 Installation of generator
48 (60) Version 11.08.2008 12.65-SA10403-en-110808
340-1560-12.65-54
13
2
4

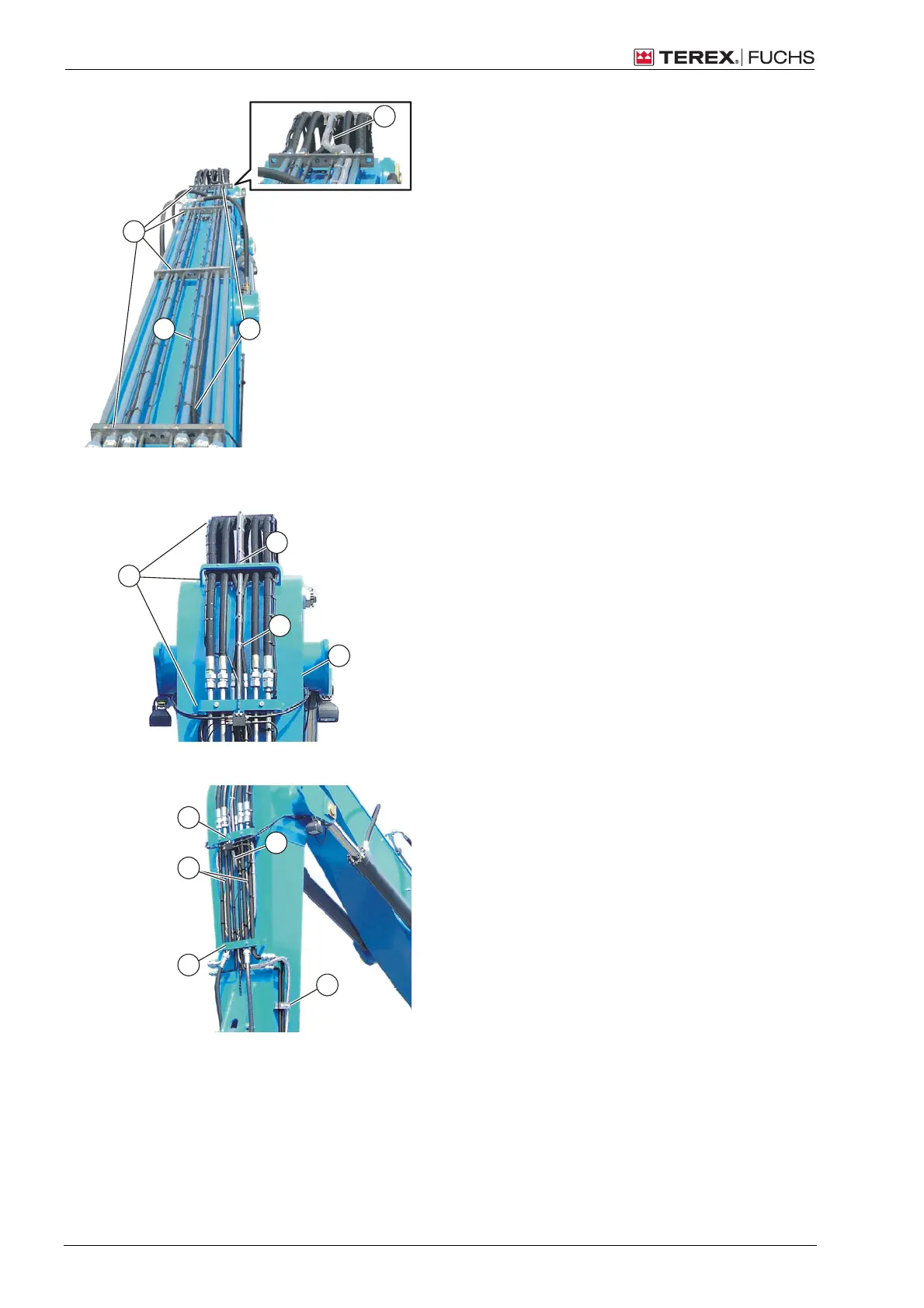

Magnet cable over boom (view: service ladder; right)
Slightly open all hose brackets (2).
Lay the magnet cable (1) over the boom to
the dipperstick.
At the transition to the dipperstick, guide
the magnet cable to the center of the stick
(4).
Fasten the magnet cable on the hydraulic
hose and the line with cable ties (3) later.
Close the hose bracket later.
340-1560-12.65-XX340-1560-12.65-72
1
3
4
2
Magnet cable on dipperstick (front view)
Slightly open the hose bracket (2).
Lay the magnet cable (1) further to the
center on the dipperstick (3).
Fasten the magnet cable on the hydraulic
hose with cable ties (4) later.
Close the hose bracket later.
340-1560-12.65-XX
340-1560-12.65-73
4
1
5
3
2
Magnet cable in the upper dipperstick area (front view)
Slightly open the hose brackets (3) and
(5).
Lay the magnet cable (1) behind the lines
(4) in loops so that there is enough length
remaining to connect the coupler socket
later.
Set the hose clamp (2) in place and guide
the magnet cable through the hose
bracket (3) to the clamp and then further
down.
Fasten the magnet cable with cable ties
later.
Close the hose bracket later.
