5 Installation of generator
340-1560-12.65-09
2
1

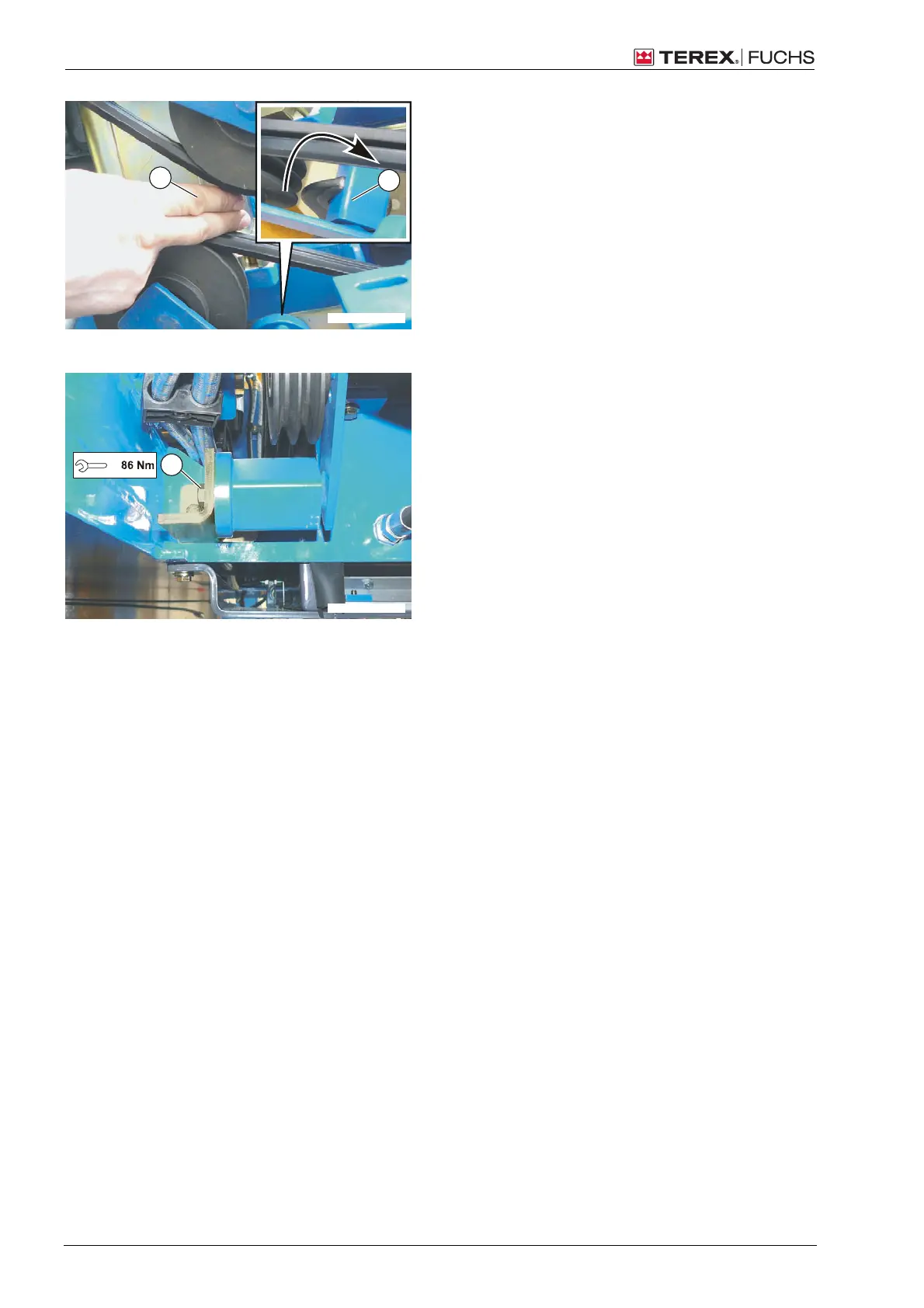

Placing the lower belt tensioner (view: fan side; right)
Placing the lower tensioning pulley
Swivel the lower belt tensioner (1) until the
tensioning pulley is resting lightly against
the belt. Normally, two fingers one laid
over the other will then fit between the two
tensioning pulley (2).
340-1560-12.65-10
1
Tightening the lower belt tensioner (view: fan side; from below,
right)
Tighten the fastening screw (1). Torque:
86 Nm.
