5 Installation of generato
r
340-1560-12.65-XX 340-1560-12.65-70
1
3
4
2

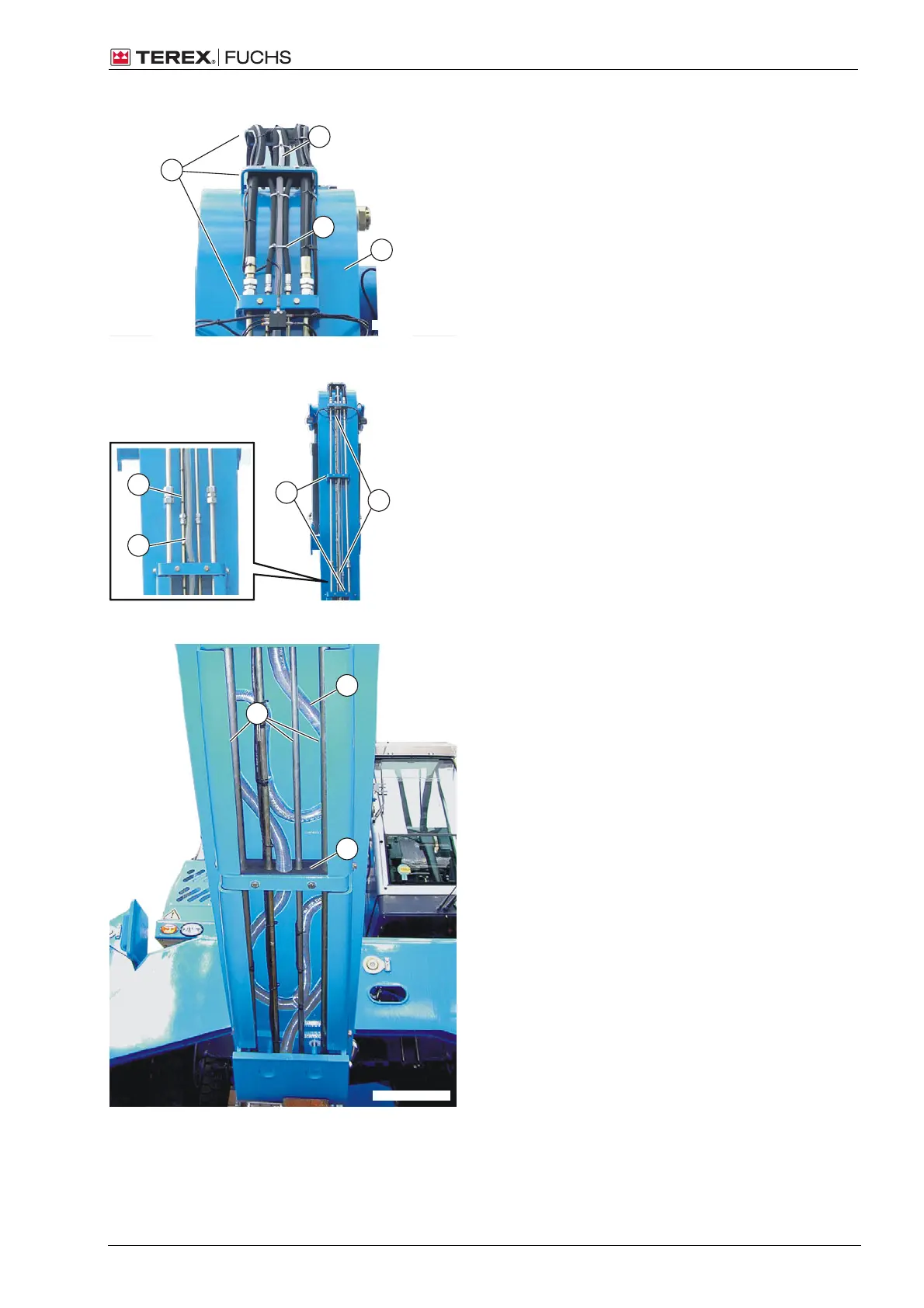

Magnet cable on dipperstick (front view)
 Slightly open the hose bracket (2).
 Lay the magnet cable (1) further to the
center on the dipperstick (3).
 Fasten the magnet cable on the hydraulic
hose with cable ties (4) later.
 Close the hose bracket later.
340-1560-12.65-XX340-1560-12.65-71
1
2
3
4
Magnet cable over dipperstick (front view)
 Slightly open the hose bracket (2).
 Lay the magnet cable (1) over the dipper-
stick.
 Fasten the magnet cable on the line (3)
with cable ties (4) later.
 Close the hose bracket later.
1
340-1560-12.65-100
2
3
Magnet cable in the upper dipperstick area (front view)
 Slightly open the hose bracket (3).
 Lay the magnet cable (1) behind the lines
(2) in loops so that there is enough length
remaining to connect the coupler socket
later.
12.65-SA10403-en-110808 Version 11.08.2008 37 (60)
